Attack Global (HK) Co., Ltd.
China Manufacturer with main products: Diesel Forklift, Aerial Working Platform, Telescopic Forklift, Eletric Forklift, Gasoline Forklift, LPG Forklift, Electric Pallet Stacker,... |
12th
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
Specifications

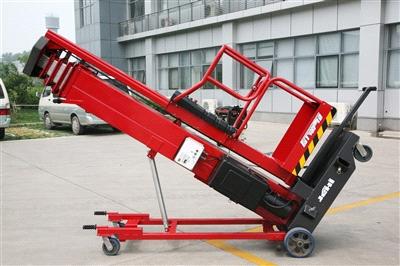

1. GTWY is made of high strength stainless steel sleeve mast.
2. High polymer sliding blocks are used between sleeves to ensure close connection and flexible movement to improve work stability.
3. It is widely used in indoor and outdoor cleaning activities, such as ceilings, walls, windows, pipelines and exhibition build-up.
|
Model
|
GTWY08
|
GTWY10
|
GTWY12
|
GTWY14
|
|
Size
|
||||
|
Max. working height (m)
|
9.1
|
12
|
14
|
16.3
|
|
Max. platform height (m)
|
7.3
|
10.2
|
12.2
|
14.5
|
|
Height - stowed (m)
|
2.05
|
2.7
|
3
|
3.5
|
|
Tilted height (m)
|
2.05
|
1.9
|
1.97
|
2.05
|
|
Length - stowed (m)
|
1.35
|
1.35
|
1.35
|
1.35
|
|
Tilted length (m)
|
---
|
2.8
|
3.1
|
3.5
|
|
Width - stowed (m)
|
0.74
|
0.74
|
0.74
|
0.74
|
|
Platform dimension (mm*mm*mm)
|
660x660x1110
|
660x660x1110
|
660x660x1110
|
660x660x1110
|
|
Outrigger footprints (m*m)
|
2x1.9
|
2.3x2
|
2.4x2.3
|
2.9x2.9
|
|
Machine weight (kg)
|
460
|
530
|
590
|
690
|
|
Performance
|
||||
|
Lifting capacity (kg)
|
100
|
100
|
100
|
100
|
|
Power
|
||||
|
Electromotor power (kW)
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Electromotor speed (r/min)
|
1400
|
1400
|
1400
|
1400
|
|
AC Voltage (V)
|
～220
|
～220
|
～220
|
～220
|
