Home >Products Catalog > Vacuum atmosphere tube furnace > 1600 c Degree Heat Pipe Vacuum Tube Furnace/Lab Furnace SGM. T60/16

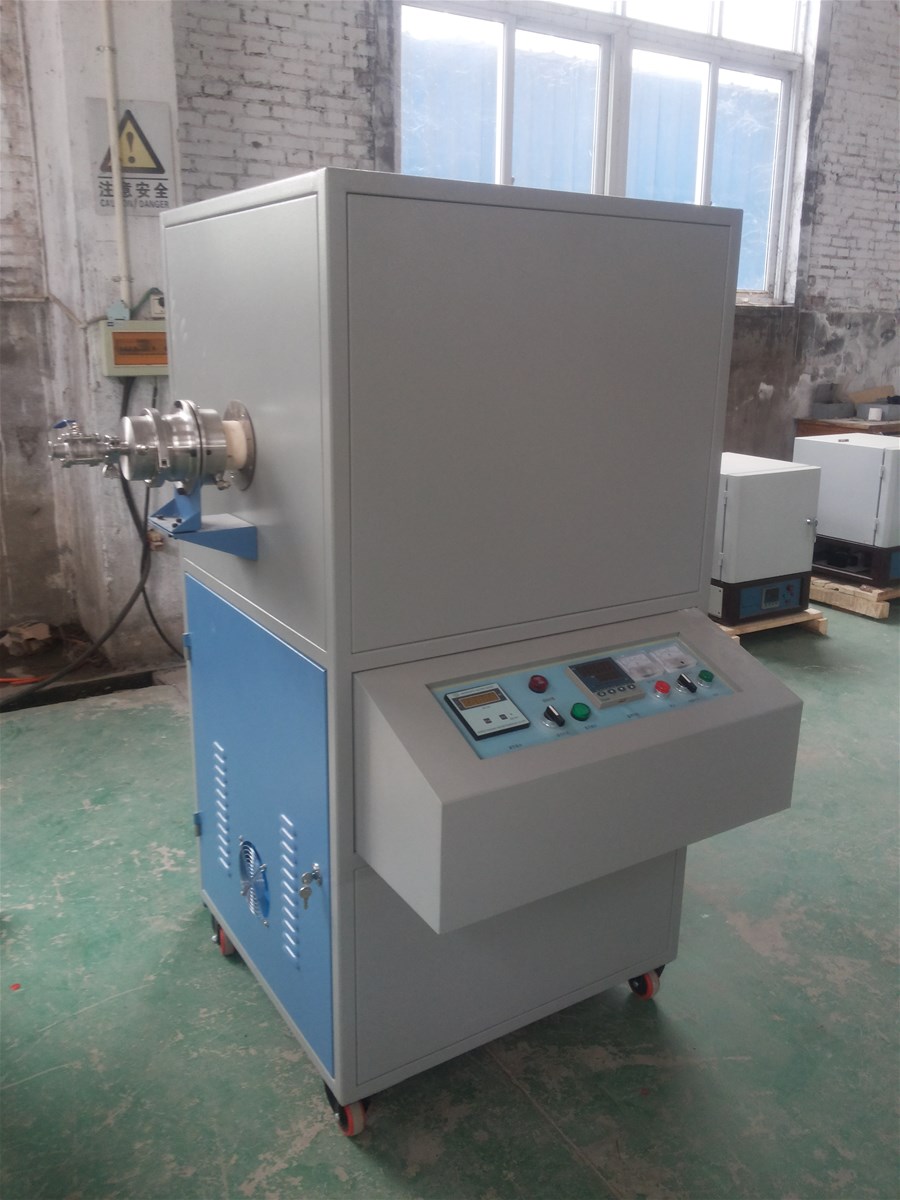

1600 c Degree Heat Pipe Vacuum Tube Furnace/Lab Furnace SGM. T60/16

FOB Price:	8,000.00 - 10,590.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	BY SEA 30 days after receiving your confirmed payment
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	in standard export plywood case package

Quick Details

Classification: Laboratory Heating Equipments
Brand Name: SGM
Classification: Laboratory Heating Equipments
name: Ultra-High Temperature Box Resistance Furnace
Working temperature: 1600C
heating rate: 0~10C/MIN
Model Number: SGM.T40/16

Specifications

1600 C Degree heat pipe vacuum tube furnace SGM.T40/16:

1.Technical parameters:

Maximum temperature	1600°C
Working temperature	1550°C
Heating element	Molybdenum silicon rod
Outer diameter of tube	￠60mm
Total length of tube	1000mm
Heating section size	300mm
Vacuum value	-0.098mpa, uses stainless steel seal suite and high quality corundum tube, good seal performance
Temperature control	SCR control, PID parameter self-setting function, 50 programmable periods
Heating rate	5-15°C/min
Temperature accuracy	±1°C
Temperature uniformity	±6°C
over temperature value	Less than 3°C

2.Adopting patent double chamber structure and special furnace top building technology, with the characteristics of heatingup fast speed, no collapse if over temperature and can not drop ash under high temperature; using the inorganic fiber made by vacuum forming technology as heat preservation materials for the furnace chamber.

3.MoSi2 rods are located in the sidewalls of the furnace chamber; easy to replace.

4.Furnace body is good quality of double layer carbon steel shell, air circulation heat insulation, the temperature of furnace shell surface is low.

5.Having over temperature alarm function, having built-in parameter password control function.
