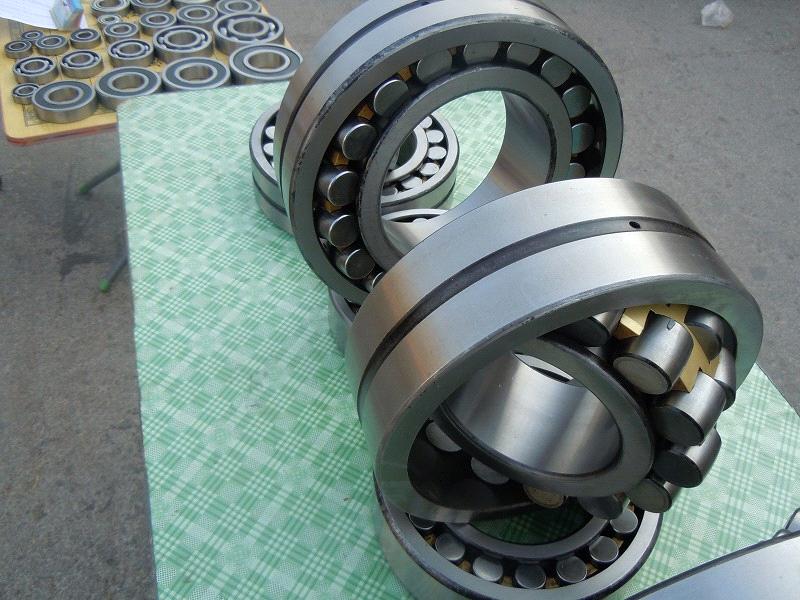

High precision self-aligning roller bearing 22230MBW33

FOB Price:	10.00 - 50.00 USD/Piece
Supply Ability:	5,000 Piece/Pieces per Week
Shipping:	FOB OR CIF shanghai port
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	Industrial packing / Netural packing / Wooden packing / or as your request

Quick Details

Type: Roller
Model Number: 22230MBW33
Bore Size: 150 mm
Outside Diameter: 270 mm
Precision Rating: ABEC-5,ABEC-3
Number of Row: Double Row
Material: chrome steel, Gcr15 or as your request
Cage types: CA,MA,CC,E and CTN1

Specifications

Spherical Roller Bearing

Bearing of this type has two rows of spherical rollers between the spherical raceway in the outer ring and two inner rings raceways inclined at an angle to the bearing axis. According to the difference of the bearing internal structure, there are five types of cages: CA,MA,CC,E and CTN1.Due to the arc center of the raceways in the outer ring and the bearing center are in the same direction, as a result, shaft flexing and misalignment of the bearing seats are compensated.

Description

Attributes	Values
Bearing Type	straight bore, lube groove and holes
Bore Dia (d)	150.0000
Outer Dia (D)	270.0000
Width (B)	73.0000
Radius (min) (rs)	3.000
Dynamic Load Rating (Cr)	810000
Static Load Rating (Cor)	1190000
Max Speed (Grease) (X1000 RPM)	1
Max Speed (Oil) (X1000 RPM)	2
Weight (g)	17950.00
Material	52100 Chrome steel, or equivalent

Application

heavy machinery (e.g. construction and mining machines), rolling mills, gear boxes, shaker screens, etc.

Suffixes:

a) CA: Integral brass cage, double row symmetrical rollers, inner ring ride

b) MA: Integral brass cage, double row symmetrical rollers, outer ring ride

c) MB: Two piece brass cage, double row asymmetrical rollers, inner ring ride

d) CC: Two piece steel cage, double row symmetrical rollers, inner ring ride

e) CTN1: double row symmetrical rollers, nylon cage

f) K: Tapered bore bearing, the taper is 1:12

g) K30: Tapered bore bearing, the taper is 1:30

h) W33: With lubrication groove in outer ring, with three oil holes
