Specifications

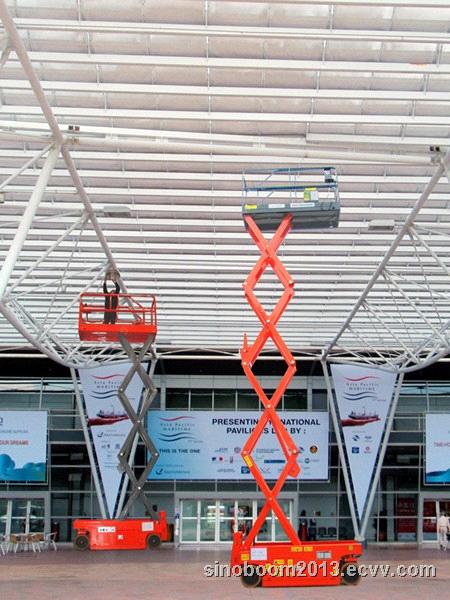

10M scissor pallet cherry pickers
Scissor pallet cherry pickers includes wide lift with hydraulic driven scissor fork and wide lift with motor driven scissor fork. It applies to indoor and outdoor flat ground conditions. The body is pleasing to eye and flexible to operate. The main engine can travel and turn automatically.
Main Specifications
|
Product Performance
|
GTJZ10
|
|
|
Max. platform height
|
31 ft 8 in (9.7 m)
|
|
|
Max. working height
|
38 ft 4 in (11.7 m)
|
|
|
Horizontal extension
|
3 ft (0.9 m)
|
|
|
Outside turning radius
|
7 ft 7 in (2.35 m)
|
|
|
Inside turning radius
|
0 ft (0 m)
|
|
|
Lifting speed (no load)
|
55/40s
|
|
|
Gradeability
|
25%
|
|
|
Load capacity of platform
|
705 lbs (320 kg)
|
|
|
Driving speed (stowed)
|
0~2 mph (3.2 km/h)
|
|
|
Driving speed (raised)
|
0~0.5mph (0.8 km/h)
|
|
|
Max. wind speed allowed
|
41 fps (12.5m/s)
|
|
|
Max. angle of inclination allowed
|
3°
|
|
|
Dimensions
|
||
|
Overall length (stowed)
|
8 tf (2.43 m)
|
|
|
Overall width (stowed)
|
3 ft 8 in (1.15 m)
|
|
|
Overall height (stowed)
|
6 ft 3 in (1.92 m)
|
|
|
Max. ground clearance
|
3 in (0.09 m)
|
|
|
Wheel base
|
6 ft 1 in (1.87 m)
|
|
|
Size of platform (L*W*H)
|
7 ft 5 in*3 tf 8 in *3 ft 6 in (2.3 m*1.15 m*1.1 m)
|
|
|
Overall weight
|
5578 - 5842 lbs (2530 - 2650 kg)
|
|
|
Tire size/type
|
406*125mm/solid
|
|
|
Volume of hydraulic oil tank
|
13L
|
|
|
Volume of hydraulic system
|
16L
|
|
|
Battery voltage
|
6V*4/225AH
|
|
|
Control voltage
|
24VDC
|
|
|
Power unit
|
GE5.5
|
|
|
Drive mode
|
2WD, front wheels
|
|
|
Input voltage of charger
|
100~240V AC
|
|
|
Charger output
|
25A self-timing
|
|
|
Hydraulic system pressure
|
24Mpa
|
|
|
Brake
|
2 rear wheels
|
|
