Xuzhou Zhongya Engineering Machinery Manufacturing Co., Ltd.
China Manufacturer with main products: Slewing Bearing, Slewing Ring, Gear, Pinion |

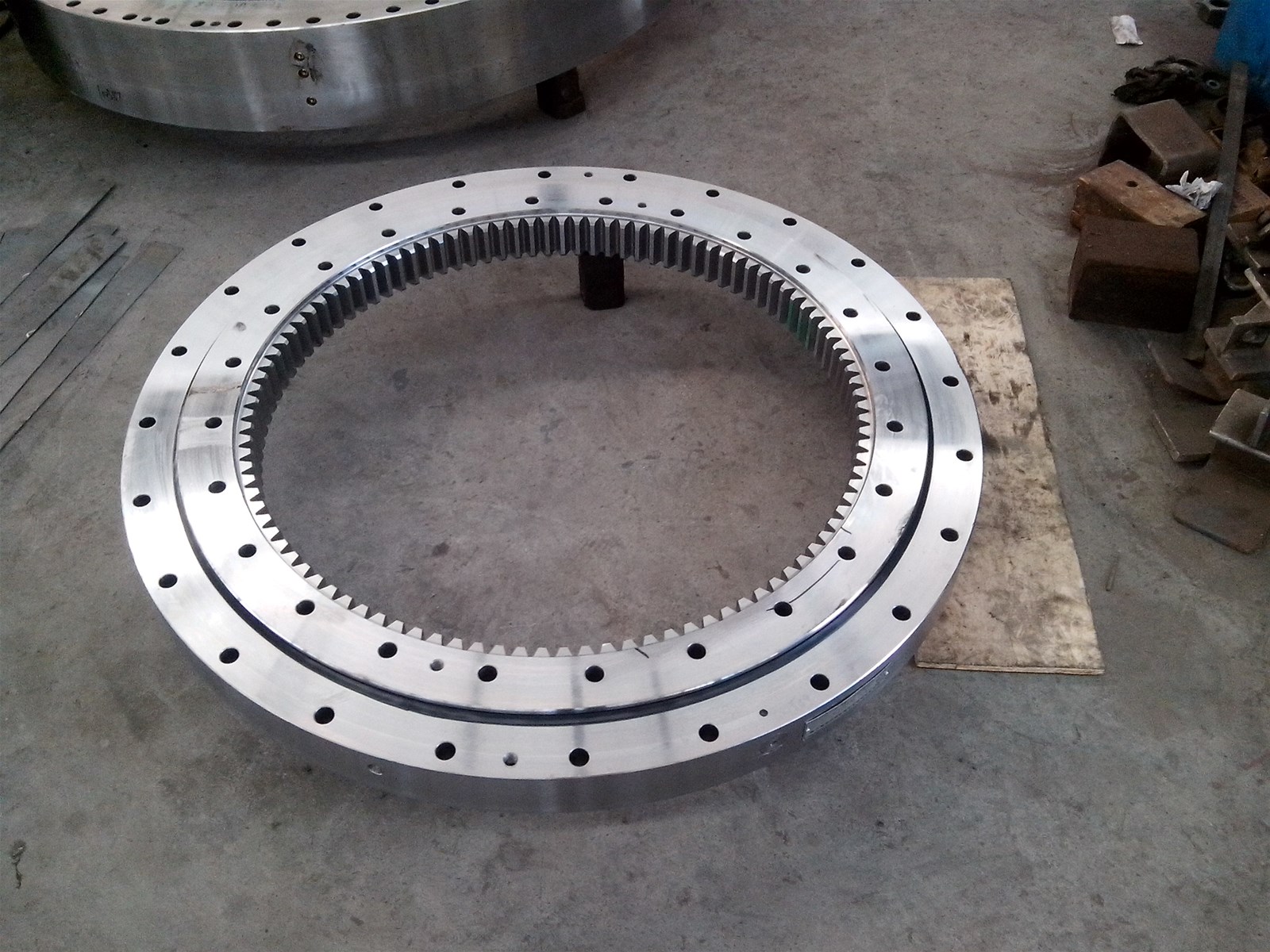

High Quality Chinese Slewing Gear Bearing
| Supply Ability: | 2,000 Set(s) per Month |
|---|---|
| Shipping: | FOB Shanghai |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | wooden case |
Quick Details
- Type: Other Type
- Seals Type: 1
- Outside Diameter: 200-9000 mm
- Bore Size: 100-8000 mm
- Brand Name: D&R
- Type: 01
- Precision Rating: 1
- Model Number: 012.50.3150
Specifications
Model No.: 012.50.3150
No. of rows: Single row
Inner structure: ball
Gear option: External Gear
No. of mounting holes: 56
Inside diameter: 2922mm
Outside diameter: 3376mm
No. of gear: 155
Thickness: 174mm
Weight: 2800kg
Other details:
Dimeter range: 200mm-7000mm
Material: 50Mn, 42CrMo
Seals type: rubber gasket, iron or high temperature seal
Loading capacity: heavy-duty
Size: large diameter
OEM: available
Certification: ISO9001:2008/ISO14001:2004/OHSAS 18001:2007
Packing details: sea worthy packing in wooden case loaded in container
| Product series | 1. Single Row Four Point Contact Ball Slewing Bearings. 2. Single Row Crossed Roller Slewing Bearings 3. Double Row Ball Slewing Bearings 4. Three Row Roller Slewing Bearings 5. Thin Section Slewing bearings (Light type). 6. Thin Section Slewing Bearings (Flange type) |
| Outside Diameter | 300 - 5000 mm |
| Bore Size | 120 - 4272 mm |
| Gear Options | External gear Internal gear without gear |
| Brand Name | D&R |
| Raw material | 50Mn, 42CrMo |
| Rolling element | Ball or roller |
| Place of Origin | Xuzhou, Jiangsu , China |
| Certificate | ISO9001:2008, SGS,BV |
| Warranty | 1 year |
| Delivery Time: | 15-45DAYS |
| Payment Terms: | L/C,T/T,Western Union |
| OEM/ODM | Available |
| Packaging Details: | 1:Filling with rust-proof oil 2:PAcking with protective layers 3:Fixed in wooden box |

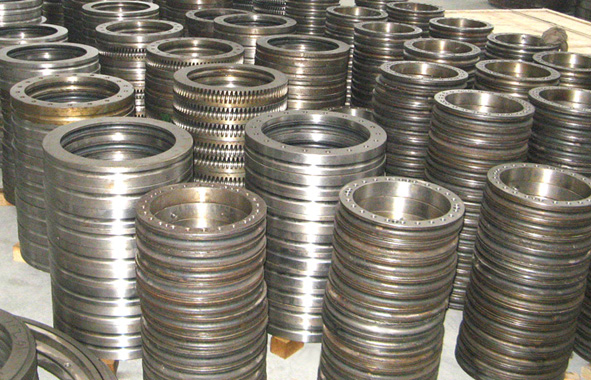

Products Show:
Parts Detail:

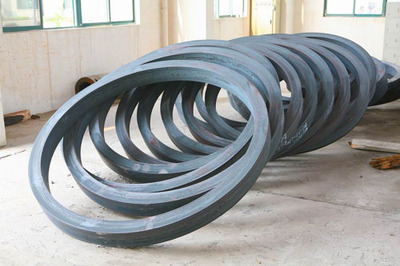

Ring Body
Material: 50Mn/42CrMo
Hardness: 230-250HB
Material structure: Forging
Hardness: 230-250HB
Material structure: Forging
Roller
Material: GCr15
Isolation block
Material: polyamide 1010 resin
Nozzle
Material: brass
Seal
Material:SN7453 nitrile rubber
Gear
State: quenching
Hardness: 55-62HRC
Depth of hardening:>1.2mm
Processing
Application
Packing & Delivery
1.Express Mode:UPS,DHL,FedEx TNT
2.most powerful Shipping Agency,Professional/Fast Shipping
3.Delivery Time is within 7-15 business days to the worldwide
4.Import duties taxes and charges are not included in the item price or shipping charge
5.Customs can choose which payment ways that you accept,
OEM&Service
OEM Brand
| Rothe Erde | Rotis | FAG/INA | IMO | SKF | Rollix |
| Thyssenkrupp | PSL | ISB | Liebherr | Kaydon | Leonessa |
1.OEM all brand outside diameter 200mm-4500mm Slewing Bearing
2.Reply your inquiry within 12 working hours.
3.Experienced staffs answer all your questions in fluent English.
4.Customer's own designs are welcomed.
5.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
