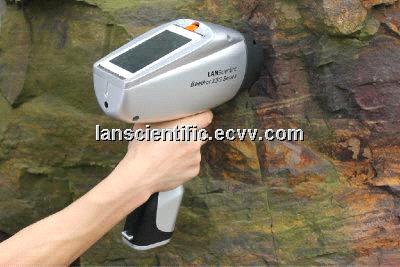

High Accuracy and Handheld Lanscientific X3G980 Mineral Element Analyzer

Specifications

Offer high accuracy and handheld Lanscientific X3G980 mineral element analyzer(mineral element analyzer,elemental analysis,gold assay instrument,XRF analysis device,silicon handheld analyzer,niobite-tantalite ore analyzer,chromite content analyzer,columbite XRF analyzer,Minerology elemental analyzer,chromium content analyzer)

Application in Mineral
XRF is one of standard technology of element analysis in mining industry. In the past, miners can just collect samples to laboratory for test, then it is expensive and time-consuming. Now handheld XRF analyzers already become the indispensable device in mineral site tool case. They not only short the test time, but also reduce analysis cost, then most companies can realize strategy of sustainable development and minimize environment pollution and health damage in exploration. Lanscientific X3G980 handheld XRF spectrometer is widely used in ore grade and element content analysis, such as iron, chromium, manganese, non-ferrous metals, heavy metals, light metals, noble metals, rare metals, slag, rock, soil, slurry and tails etc.

Introduction:
Based on the mature technology of desktop X-ray fluorescence analyzer and the latest technological development, and on the performance of the existing international commercial handheld X-ray fluorescence analyzer, adding new elements into it on the basis of the first, second, and third generation, Lanscientific Instrument has developed the intellectual portable fourth generational handheld analyzer-X3G XRF series, which can satisfy the market requirements and possess independent intellectual property rights.

The new generational X3G XRF series are designed according to the applications of on-site X-ray analysis in the wild, featuring small and light body, which can be held in hands by common people when measuring.It is super small, super light, super beautiful, super safe, super convenient,super long standby time, super waterproof, super precise and super fast.Digital multi-channel technology make the instrument have better detection limit, better stabiliy, and wider application fields.

Products include RoHS analyzer X3G600, alloy analyzer X3G800, mineral analyzer X3G980, and heavy metals in soil analyzer X3G700, which can be applied for in-situ material testing,for on-site on-line analysis of various elements during the process from manufacturing control to finished product testing, for quick identification of alloy number and reliable authentication, for on-site heavy metals testing in soil, and for various kinds of geological and ore samples on-site analysis of multi-elements.

Technical Parameters
1.Model:The new generation EDX analyzer-X3G980 XRF series.
2.Analysis method:Energy dispersive X-ray fluorescence analysis method.
3.Measuring range of elements: Mg to U.
4.Simultaneously detect elements:Simultaneously detect tens of elements.
5.Processor and RAM:CUP: 667MHz, RAM:256M, Maximum expanded storage:32G, Standard configuration:2G, can store large amounts of data.
6.Content range: ppm~99.99%.
7.Testing time:3-30 seconds.
8.GPS,WIFI:Built-in system.
9.Battery time: Lithium battery,which can be charged, with maximum capacity of 7800mAH, can continuously work for 8 hours; Equiped with wide voltage(110V-220V) general adapter, can work under alternating current.
10.Testing object:Solid, liquid, powder.
