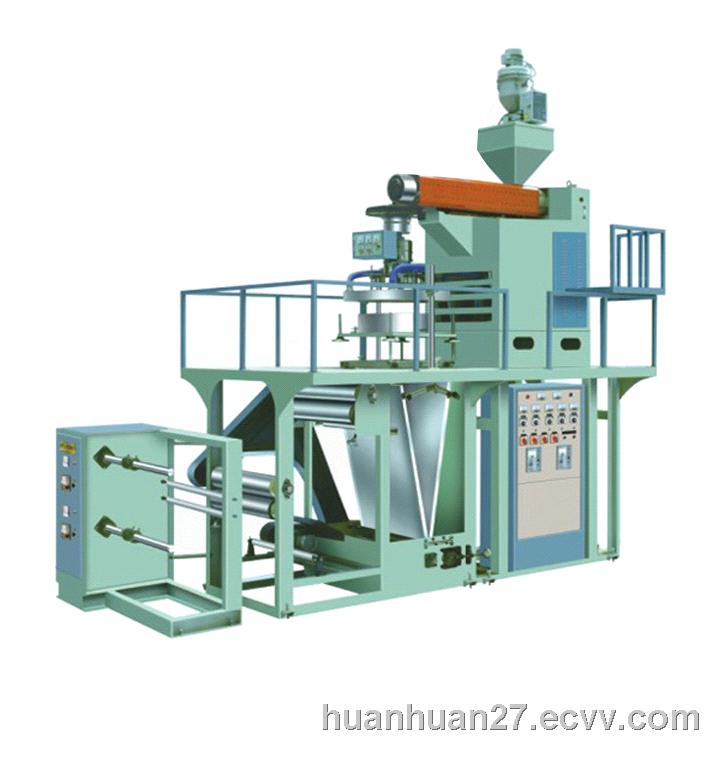

PPL, LDPE and HDPE Bottom Film Blowing Machine Set

Supply Ability:	200 Set/Sets per Month
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China

Specifications

Purpose

Making use of bottom blowing technology, this machine set is used to blow PPL, LDPE and HDPE plastic film to produce various civil and industrial packaging bags of food, clothing, textile and article of daily use, etc.

Feature

It can rotate in 360 degrees to enhance the strength and uniformity of plastic films

Both the screw and the charging barrel are made of 38 CRMOALA alloy steel through nitrogen treatment and precision machining with the optimal hardness, corrosion resistance and outstanding durability.

The die head is plated with hard chrome with a structure of screw spindle type; the extruded molten materials are well distributed and the blown film is of smooth finish; the air cooling device is of maze structure with well-proportioned air volume. It adopts circulating water cooling method to reach the best transparency of the film.

The winding unit adopts pressure friction or center winding and the torque motor to adjust to ensure the flat winding and convenient changing.

Main Technical Parameters

Model	CHSJ--40F	CHSJ--45F	CHSJ--50F		CHSJ--60F
Diameter of screw	40 mm	45 mm	50 mm		60 mm
L/D ratio of screw	L/D 30:1
Specification of die head	80 mm	90 mm	160 mm		180 mm
Film thickness	0.015-0.06 mm
Folding width of film	30-250 mm	35-400 mm		50-500 mm	50-600 mm
Total power	11 kw	15 kw		18 kw	21 kw
Capacity	10-25 kg/h	10-35 kg/h		10-48 kg/h	10-70 kg/h
Machine weight	≈1.9 T	≈2.0 T		≈2.1 T	≈2.2 T
Overall dimension	523.3 m	5.22.13.4 m		5.32.23.5 m	5.42.33.6 m

The Closest Service:
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.One year free after-sales service and mechanical parts lifetime warranty.
3 We will offer the professional answer and parts about relating machines in 48 hours on line even you don’t buy ours.
