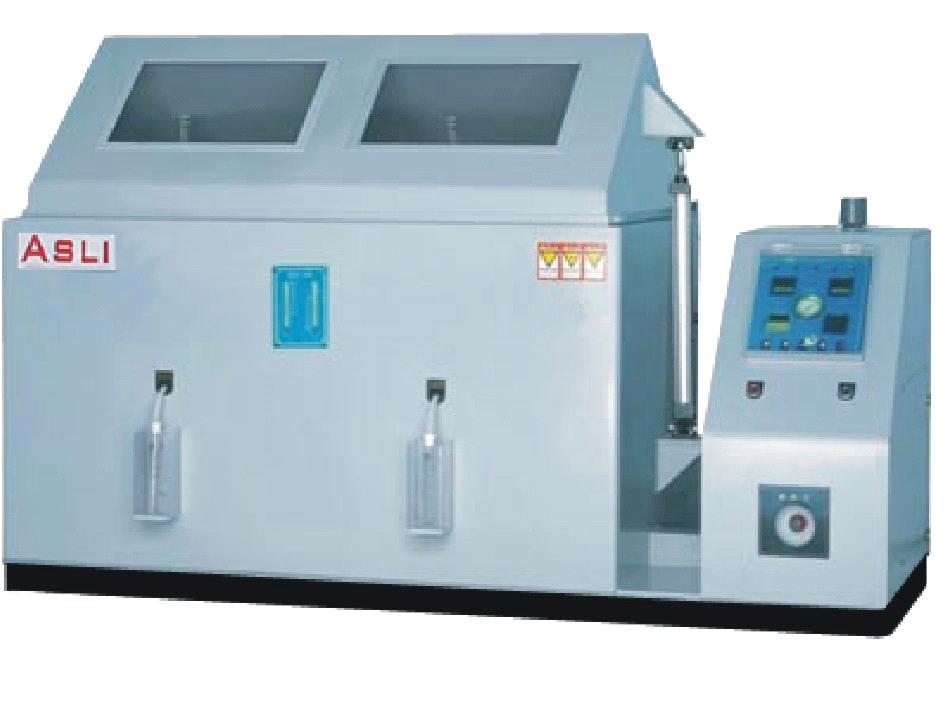

Sulfur Dioxide salt fog test chamber

FOB Price:	5,754.00 - 5,800.00 HKD/Set
Supply Ability:	3 Set/Sets per Month
Shipping:	20days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	power meeting

Quick Details

Compressed Air: 1.0~6.0

Specifications

Sulfur Dioxide salt fog test chamber

Sulfur Dioxide Test chamber/application:

The sulfur dioxide based corrosive testing box are widely
applied to the accelerated corrosive testing of the protective layer
from metallic materials, as well as parts , electrical components and
industrial products. It can reproduce the corrosion process happened to the
painted or untreated metal surface. Therefore it can be used to perform various
kinds of corrosion test in according to relevant standards, such as ISO6988-1985.

SO2 salt testing /technical parameters:

1.Model: SH-120

2.Internal Dimension WxHxD (mm):1200x800x500

3.External Dimension WxHxD (mm):1900x1300x1400

4.Lab Temperature:

Saline test (NSS ACSS) 35±1 ℃ ;

Corrosion Test (CASS)50±1 ℃

Pressure Bucket Temperature:

Saline test method (NSS ACSS) 47±1 ℃

Corrosion Test (CASS)63±1 ℃

6.Lab Capacity (L):500

7.Saline Capacity(L):40

Sulfur Dioxide salt fog test chamber/features:

Anti-corrosive CPVC plate is formed integrally through pressing and with no leakage.
The space between tank lid and tank body is water sealed with no air leaking.While
the lid, which is made of transparent material, allows you to observe the testing items
inside clearly to know the status. It has been equipped with double air filter ensure that
the emission gas brings no contamination to environment. Wired control board
and other electrical components are positioned in certain places for easy check and
maintain.
