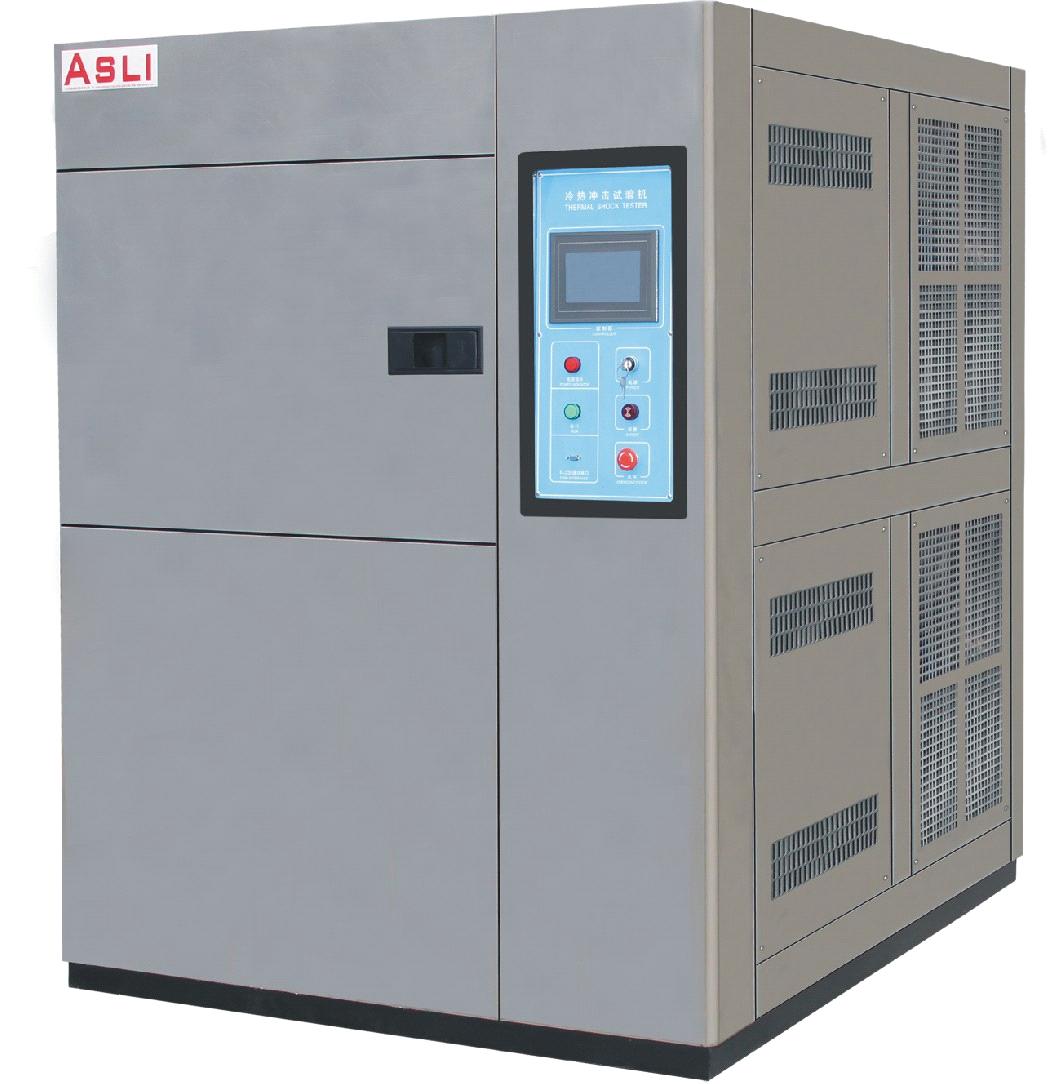

High and low temperature humidity chamber for cycling control

FOB Price:	6,874.00 - 6,900.00 HKD/Set
Supply Ability:	3 Set/Sets per Month
Shipping:	20days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	power meeting

Quick Details

Approx. Weight (Kg): 150

Specifications

Environmental test chamber/application:

High low Temperature Cycling Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

Inner door with operation hole (optional)

Entrance hole for test wire, Dia.50mm or 100mm

Sample Shelves, two layers

RS-232 or RS-485 communication Interface

High and low temperature humidity chamber for cycling control/features:

1.Quick or ramp rates control of temperature and humidity.

2. Rectangular double-paned viewing window for observation of sample under test,with interior lights

3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.

4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23 or R404A

6. Casters are provided for ease of mobility, with strong positioning screws

7. The control unit has the functions of multiples segment program editing function

Environmental test chamber/technical parameters:

1. Model: HL -1000(A~F)

2. Internal Dimensions WxHxD (mm):1000x1000x1000

3. External Dimensions WxHxD (mm): 1600x2100x1450

4. Temperature Range: Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃; High Temperature150℃

5. Indication resolution/Distribution Uniformity of Temperature: 0.1℃ /±2.0℃

6. Control Accuracy of Temperature : ±0.5℃

7. Temperature Rising/Falling Speed Rate : Temperature rising approx. 0.1~3.0℃/min / temperature falling approx. 0.1~1.5℃/min; ( The Falling Speed Rate Min.1.5℃ per minute is a special optional condition)

8. Internal and External Material: Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated.
