Qingdao Promising International Co., Ltd.
China Manufacturer with main products: Mini Loader, Small Loader, Wheel Loader, Mini Front Loader, Small Front Loader, Articulated Loader, Forklift Truck, Forklift |

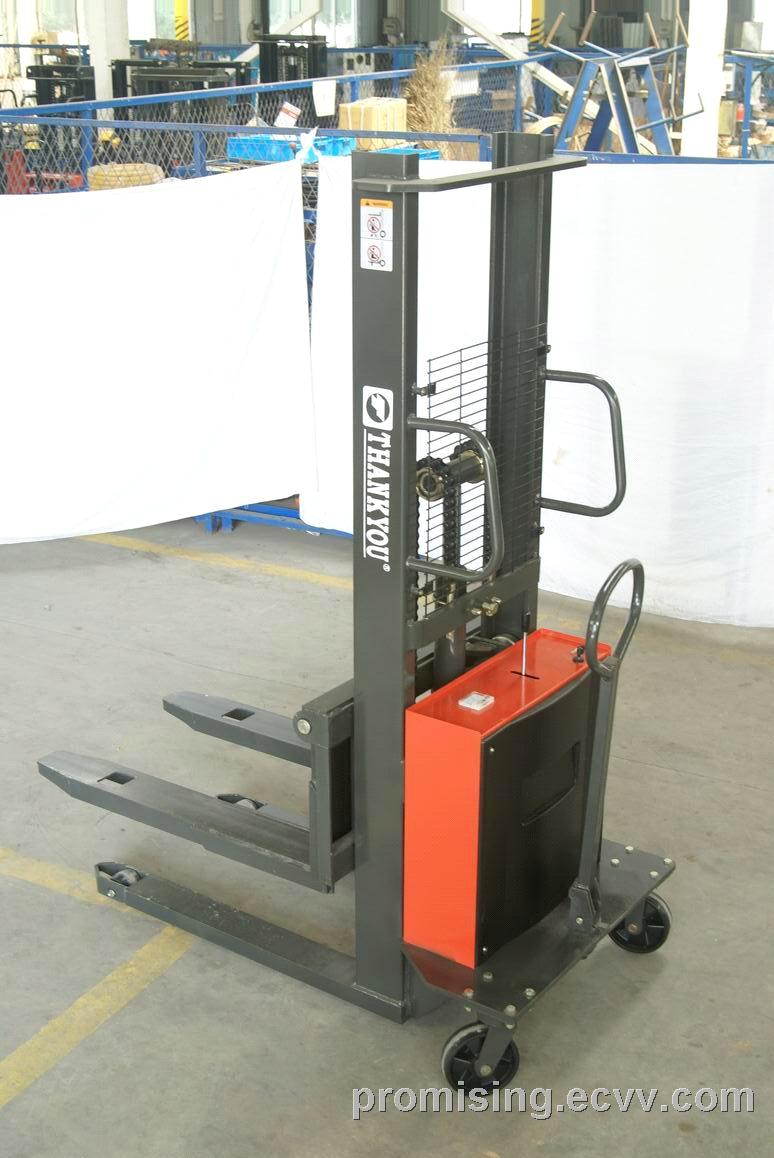

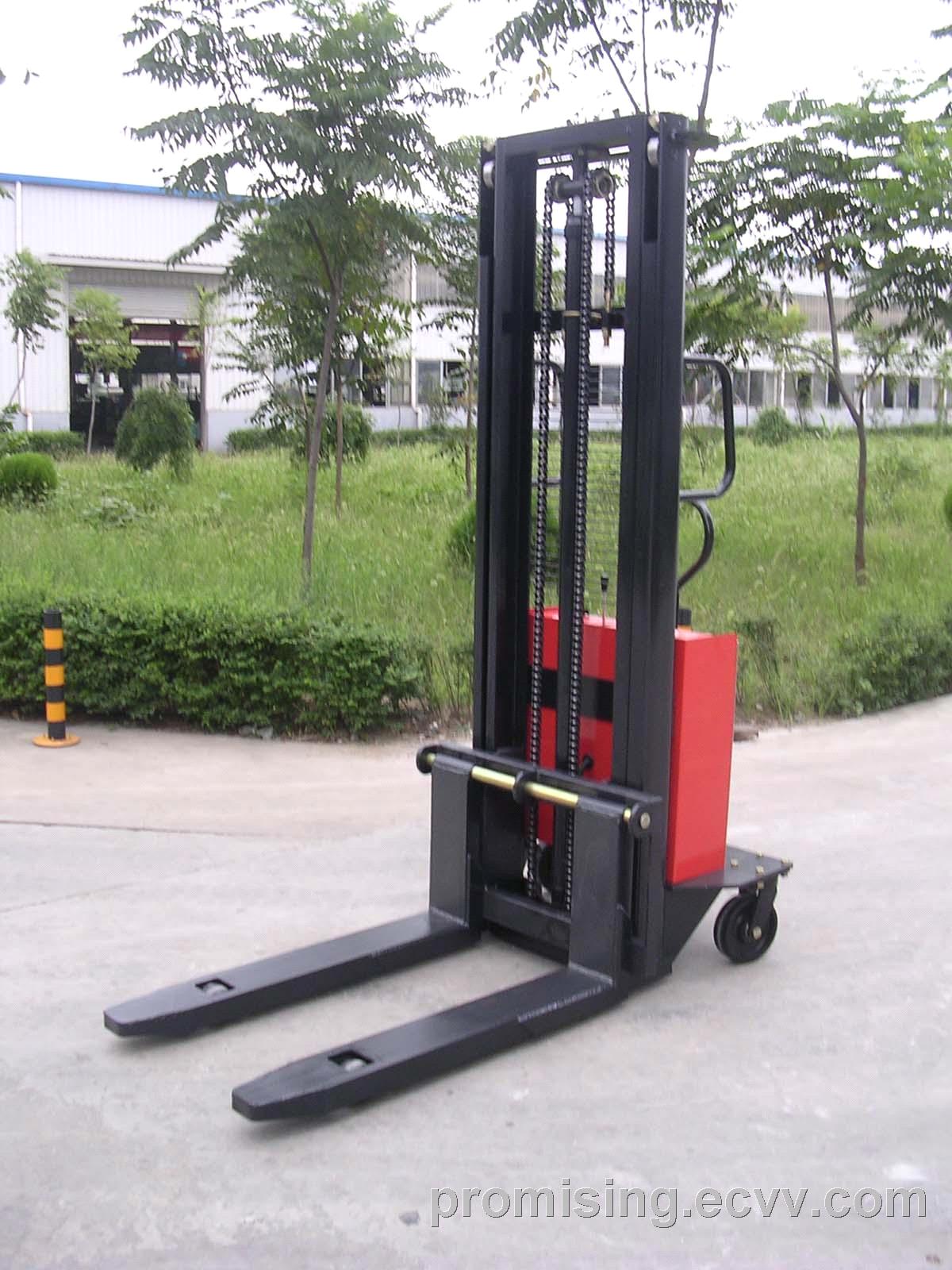

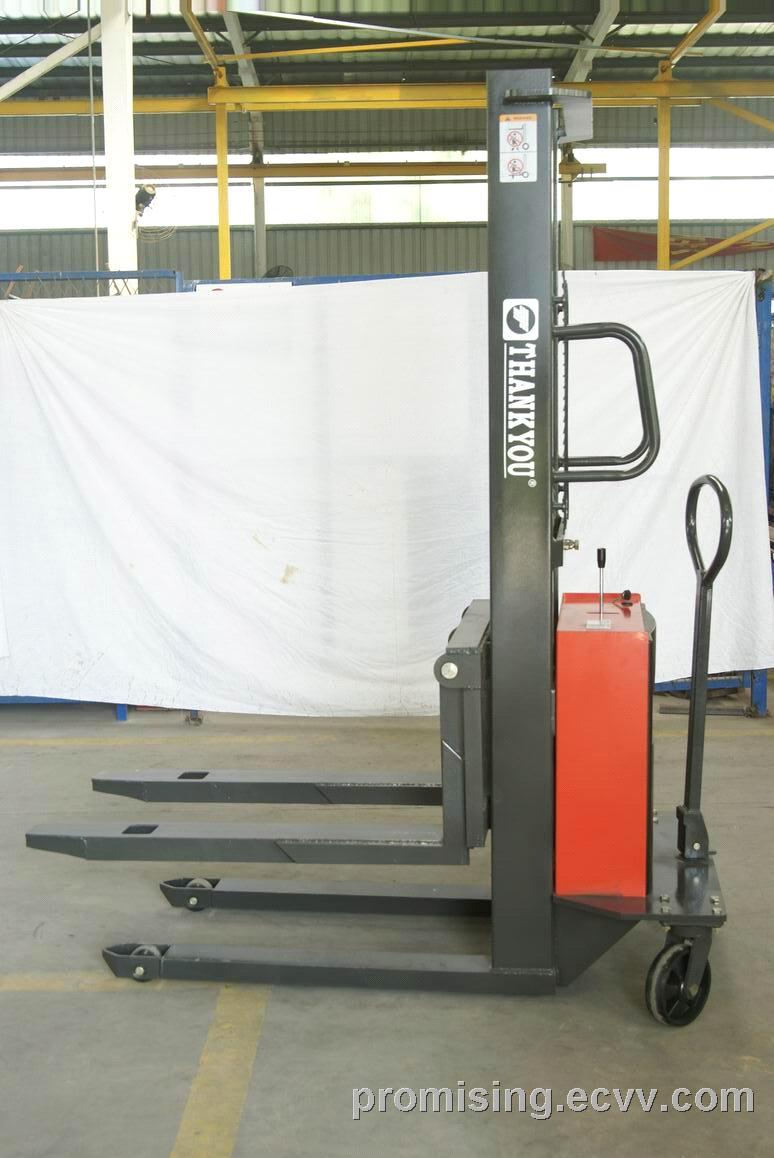

Semi Electric Pallet Stacker TA10-30
| Supply Ability: | 500 Set/Sets per Month |
|---|---|
| Shipping: | within 35 days |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude packaging |
Quick Details
- Overall Length: 1625MM
Specifications
Semi-Electric Pallet Stacker (Semi-Electric Stacker Truck)
TA Series Semi Electric Pallet Stacker
semi-electric walkie pallet stacker, semi electric stacker truck, pedestrian operated semi-electric pallet stacker, semi-electric pedestrian pallet stacker truck, semi-electric walkie stacker, semi electric pedestrian stacker, manual push stacker, manual push pallet stacker
Rated Load: 1.0T - 2.0T
Max. Lifting Height: 1.6m - 3.5m
Overall Length: 1610-1630mm
Overall Width: 824mm
Fork Size: 1000 x 160mm
Applications:
Semi-Electric Pallet Stacker or Semi Electric Stacker Truck is applicable to the stacking works in the narrow aisles and limited spaces and is the ideal tools for high-rack warehouses, supermarkets and workshops for pallet stacking and block stacking or to handle material horizontally and load/unload palletized goods, especially for the transportation of goods on single or double deck pallets for retail and manufacturing industry.
Features:
1. Narrow width design;
2. 180 degree rotatable for operation handle;
3. Reliable & durable;
4. Energy saving;
5. Perfect performance;
6. Low maintenance cost.
Technical Specifications:
|
Model
|
TA10-16
TA15-16
TA20-16
|
TA10-24
TA15-24
TA20-24
|
TA10-30
TA15-30
TA20-30
|
TA10-35
TA15-35
TA20-35
|
|
Power Type
|
Semi-Electric
|
Semi-Electric
|
Semi-Electric
|
Semi-Electric
|
|
Operation Type
|
Walkie
|
Walkie
|
Walkie
|
Walkie
|
|
Rated Load Capacity (kg)
|
1000/1500/2000
|
1000/1500/2000
|
1000/1500/2000
|
1000/1500/2000
|
|
Load Capacity at Max. Height (kg)
|
1000/1500/2000
|
1000/1300/1500
|
500/800/1250
|
400/600/750
|
|
Max. Lift Height (mm)
|
1600
|
2400
|
3000
|
3500
|
|
Load Center (mm)
|
450
|
450
|
450
|
450
|
|
Wheel Type
|
Nylon
|
Nylon
|
Nylon
|
Nylon
|
|
Front Wheel (mm)
|
Φ80*70
|
Φ80*70
|
Φ80*70
|
Φ80*70
|
|
Rear Wheel (mm)
|
Φ180*50
|
Φ180*50
|
Φ180*50
|
Φ180*50
|
|
Number of Wheels, Front/Rear
|
2/2
|
2/2
|
2/2
|
2/2
|
|
Mast Type
|
Standard
|
Duplex
|
Duplex
|
Duplex
|
|
Height of Mast Lowered (mm)
|
2075
|
1775
|
2075
|
2325
|
|
Height of Mast Extended (mm)
|
2075
|
2960
|
3060
|
4060
|
|
Min. Height of Fork Face (mm)
|
90
|
90
|
||
|
Overall Length (mm)
|
1625/1625/1645
|
1625/1625/1645
|
||
|
Wheelbase (mm)
|
1260/1260/1280
|
1260/1260/1280
|
||
|
Overall Width (mm)
|
824
|
824
|
||
|
Front/Rear Wheel Tread (mm)
|
510/704
|
5140/704
|
||
|
Fork Dimensions (L*W*T) (mm)
|
1000*160*58/
1000*160*58/
1000*172*58
|
1000*160*58/
1000*160*58/
1000*172*58
|
||
|
Fork Spread (mm)
|
670/670/682
|
|||
|
Aisle Width with 800*1200 Pallet along Forks (mm)
|
2205/2205/2221
|
|||
|
Min. Turning Radius (mm)
|
1400/1400/1416
|
|||
|
Lift Motor (kW)
|
1.6 (DC)
|
1.6 (DC)
|
||
|
Battery (V/Ah)
|
12/115
|
|||
|
Battery Weight (kg)
|
33
|
|||
|
Service Weight (with Battery) (kg)
|
333/395/438
|
375/480/550
|
380/485/554
|
395/525/595
|
