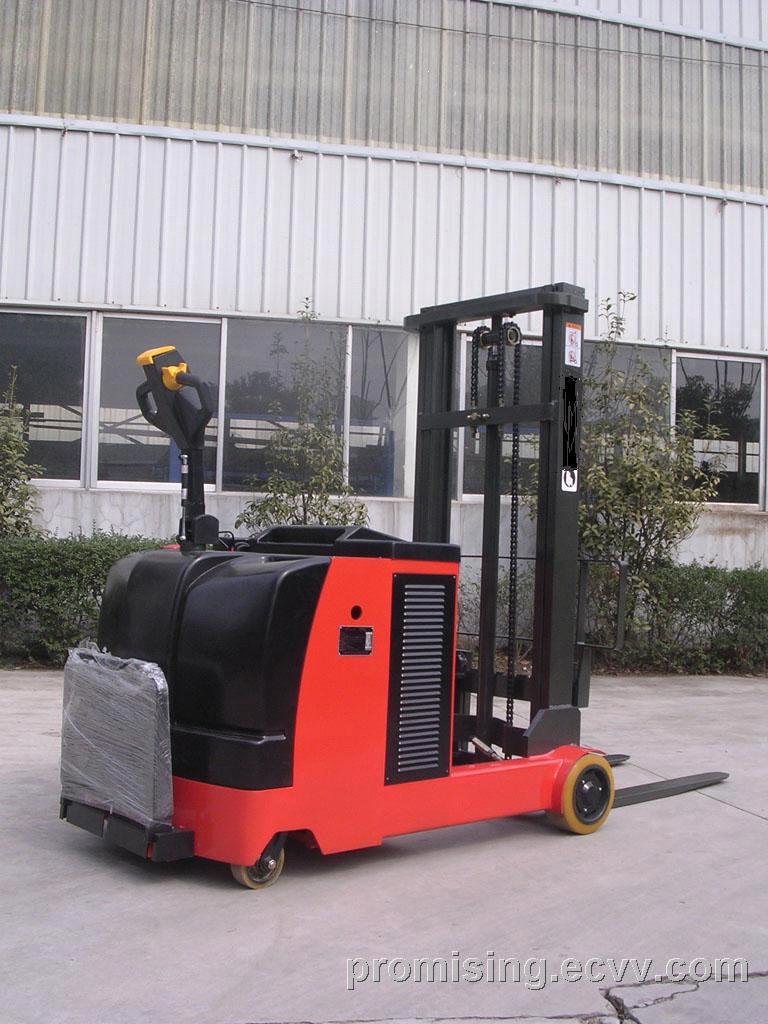

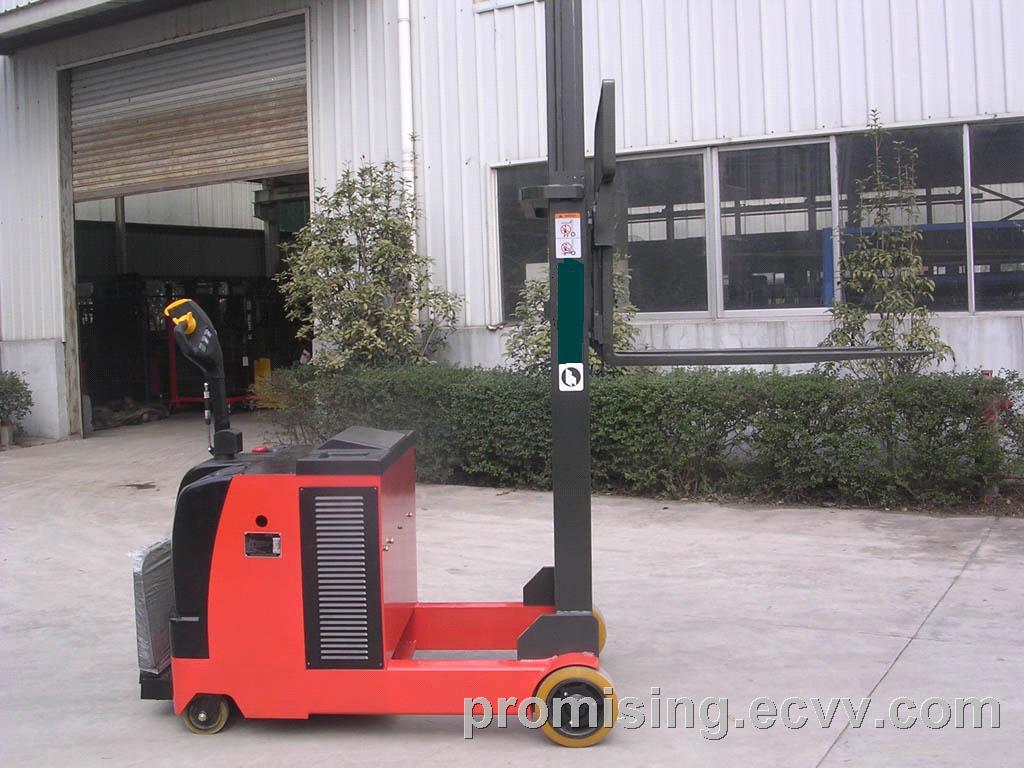

Electric Counterbalance Pallet Stacker TBB10-16
| Supply Ability: | 200 Set/Sets per Month |
|---|---|
| Shipping: | within 30 days |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude packaging |
Specifications
TBB Series Electric Counterbalance Pallet Stacker with pedal
Electric counterbalance pallet stacker, electric counterbalanced pallet stacker, counterbalance electric rider pallet stacker, counterbalance electric straddle pallet stacker, electric operated counterbalance pallet stacker, counterbalance electric stand-on pallet stacker, counterbalance electric stacker, counterbalanced battery pallet stacker, counterbalanced electric stacker truck, powered counterbalance pallet stacker, counterbalance powered stacker truck, battery counterbalance pallet stacker
Rated Load: 1.0T
Lifting Height: 1.6m - 3.0m
Overall Length: 2750mm
Overall Width: 1010mm
Fork Size: 1070 x 100mm
Applications:
Electric Counterbalance Pallet Stacker or Battery Counterbalance Stacker Truck is applicable to the stacking works in the narrow aisles and limited spaces and is the ideal tools for high-rack warehouses, supermarkets and workshops for pallet stacking and block stacking or to handle material horizontally and load/unload goods on single or double deck pallet.
Features:
1. Vertical Drive system to save the energy and have long time working;
2. Regenerative braking function to reduce the operation cost;
3. Speed limit for high position to avoid the possibility of the overturning of goods when electric pallet stacker runs in high speed while goods are in a high position;
4. Pedal with anti-vibration function to ensure comfortable working condition and reduce the operator' s feeling of fatigue;
5. Reinforced mast to prevent the mast from deforming and enable the electric pallet stacker with counterbalance to lift goods smoothly;
6. Ergonomic multi-functional operating handle to enhance operator comfort and reduce fatigue.
Technical Specifications:
|
Model
|
TBB10-16
|
TBB10-25
|
TBB10-30
|
|
Power Type
|
Electric
|
Electric
|
Electric
|
|
Operation Type
|
Walkie/Rider
|
Walkie/Rider
|
Walkie/Rider
|
|
Rated Load Capacity (kg)
|
1000
|
1000
|
1000
|
|
Load Center (mm)
|
500
|
500
|
500
|
|
Max. Lifting Height (mm)
|
1600
|
2500
|
3000
|
|
Mast Tilting Angle (Forward/Backward) (deg. )
|
0
|
0
|
0
|
|
Wheel (Tyre) Type
|
Polyurethane
|
||
|
Rear (Driving) Wheel (mm)
|
Φ 215*75
|
Φ 215*75
|
Φ 215*75
|
|
Front (Load) Wheel (mm)
|
Φ 267*114
|
Φ 267*114
|
Φ 267*114
|
|
Auxiliary (Balance) Wheel (mm)
|
Φ 150*50
|
Φ 150*50
|
Φ 150*50
|
|
Number of Wheels Front/Rear (X=Driving)
|
2 / 1X+2
|
2 / 1X+2
|
2 / 1X+2
|
|
Fork Dimensions (L*W*T) (mm)
|
1070*100*35
|
1070*100*35
|
1070*100*35
|
|
Fork Spread (mm)
|
220-660
|
220~660
|
220~660
|
|
Overall Length (with/without pedal) (mm)
|
3140/2720
|
3140/2720
|
3140/2720
|
|
Overall Width (Front/Rear) (mm)
|
1010/900
|
1010/900
|
1010/900
|
|
Overall Height of Mast Lowered (mm)
|
2140
|
1837
|
2087
|
|
Overall Height of Mast Extended (with Backrest) (mm)
|
2455
|
3355
|
3855
|
|
Wheelbase (mm)
|
1245
|
1245
|
1245
|
|
Front Overhang (mm)
|
166
|
166
|
166
|
|
Front/Rear Wheel Tread (mm)
|
890/724
|
890/724
|
890/724
|
|
Aisle Width with 1000*1200 Pallet across Forks (with/without pedal) (mm)
|
3410/2990
|
3410/2990
|
3410/2990
|
|
Aisle Width with 8000*1200 Pallet along Forks (with/without pedal) (mm)
|
3370/2950
|
3370/2950
|
3370/2950
|
|
Min. Turning Radius (with/without pedal) (mm)
|
1915/1495
|
1915/1495
|
1915/1495
|
|
Min. Ground Clearance (mm)
|
80
|
80
|
80
|
|
Max. Travel Speed (Full-load/No-load) (km/h)
|
4.0/5.8
|
4.0/5.8
|
4.0/5.8
|
|
Lifting Speed (Full-load/No-load) (mm/s)
|
70/125
|
70/125
|
70/125
|
|
Max. Gradeability (Full-load/No-load) (%)
|
8/10
|
8/10
|
8/10
|
|
Battery (V/Ah)
|
24/210
|
24/210
|
24/210
|
|
Charger (V/A)
|
24/30
|
24/30
|
24/30
|
|
Drive Motor (kW)
|
1.5 (AC)
|
1.5 (AC)
|
1.5 (AC)
|
|
Lift Motor (kW)
|
2.0 (DC)
|
2.0 (DC)
|
2.0 (DC)
|
|
Battery Weight (kg)
|
200
|
200
|
200
|
|
Type of Steering
|
Mechanical
|
||
|
Service Brake
|
Electromagnetic
|
||
|
Parking Brake
|
Electromagnetic
|
||
