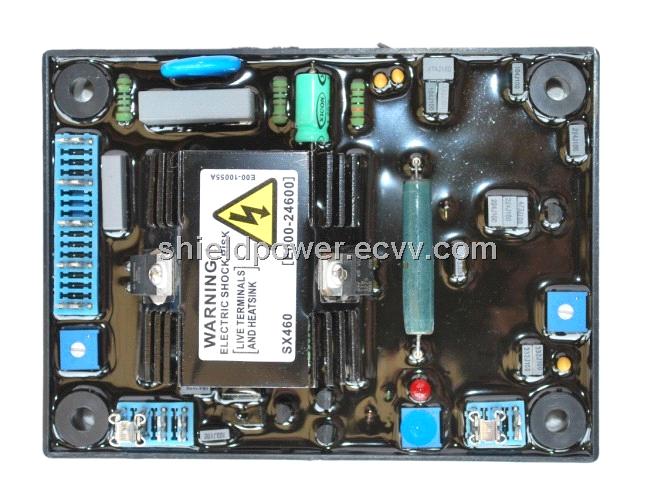

Stamford Generator AVR Sx460

FOB Price:	1.00 - 10.00 USD/Piece

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Tabular Turbine

Price:

Min. Order:
QJX4-d Series of Star-Delta Starter

Price:20.00-265.00 USD/Piece

Min. Order:10 Pieces
CONTROLLER CABINET

Price:10,000.00-10,000,000.00 USD/Set

Min. Order:1 Set
Standard lightning impulse voltage pulse calibr...

Price:

Min. Order:1 Set
Stamford Generator Spare Part -- AVR

Price:

Min. Order:
Wind Turbine Blade

Price:70.00-75.00 USD/Piece

Min. Order:30 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	BOX

Quick Details

Brand Name: STAMFORD
Model Number: SX460
Phase: Three Phase
Current Type: DC
MOQ: 1PC

Specifications

Specifications
1. Automatic Voltage Regulator AVR SX460
2. Accept mix, small order
3. Accept OEM order
4. Fast delivery
Generator Spare Part AVR SX460 Stamford Generator AVR SX460
SX 460 Automatic Voltage Regulator (AVR)
Specifications:
INPUT:
Voltage Jumper selectable. 95-132AC or 190-264AC-246 VAC 1 phase
Frequency 50-60Hz nominal
Phase 1
OUTPUT:
Voltage max 90V DC at 207V AC input
Current continuous 4A DC. Intermittent 6A for secs.
Resistance 15 ohms minimum
REGULATION: +/- 1.0% THERMAL DRIFT: 0.05% per deg. C changes in AVR ambient
TYPICAL SYSTEM RESPONSE: UNIT POWER DISSIPATION: 10WATTS MAXIMUM
AVR response 20ms
Filed current to 90% 80ms
Machine Volts to 97% 300ms
Environmental:
Vibration 20-100Hz 50mm/sec
100Hz 2k Hz 3.3G
Operating temperature -40 to + 70° C
Relative Humidity 0-70° C 95%
Storage temperature -55 to +80° C
