Shield Science & Technology Co., Ltd.
China Manufacturer with main products: Gas Generator Set, Natural Ges Generator Set, Biogas Generator, Diesel Generator Set, Generator Parts, Cummins Parts, AVR, Controller |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | BOX |
Quick Details
- MOQ: 1PC
Specifications
Description

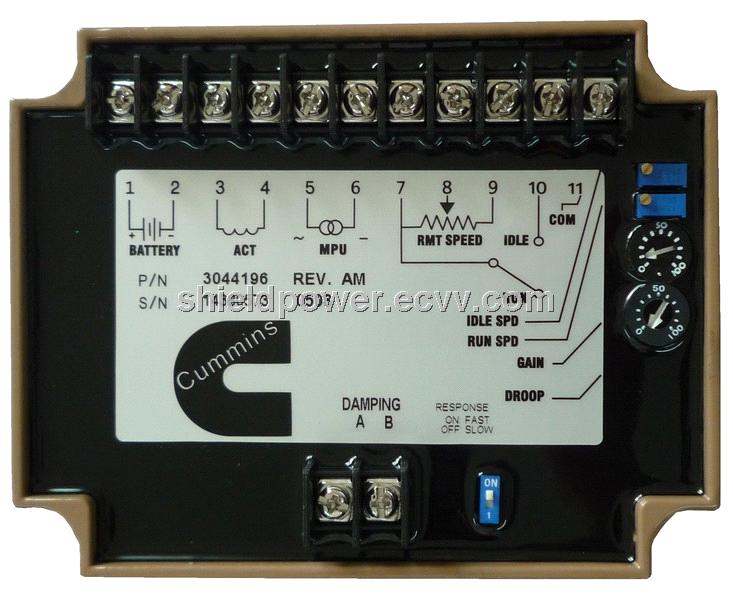

* EFC3044196 is a engine speed controller designed by all electronic device for CUMMINS’s actuator.
* It can fast and precise response to transient load changes.
* It has a wide speed control range.
* For these controllers, separate circuits allow adjustments of proportional, integral and derivative values.
*These parameters all work together to provide a control that results in fast and stable engine response to load changes
Parameter
| EFC3044196 Speed Regulator | ||
| Module | Cummins Electric Speed Control Module 3044196 | |
| Input | Supply | 24 VDC ±20% |
| Polarity | Negative Ground (Case Isolated) | |
| Power Consumption | 40 MA | |
| Maximum Actuator Current | 4.5 A continuous | |
| Speed Sensor Signal | 2-120 Volts RMS | |
| Performance | Isochronous Operation/Steady State Stability | ±0.25% or better |
| Speed Range/Governor | 1K to 6.5K Hz continuous | |
| Speed Drift with Temperature | ±1 Max | |
| Idle Regulation | 260±20 Hz | |
| Droop Adj. Max. | 400 Hz., ±75Hz. Per 1.0A change | |
| Speed Trim Range | ±200 Hz with 1 ohm connected | |
| Remote Variable Speed Range | 25 to 100% of rated speed | |
| Impedance | 1m ohms | |
| Environmental | Ambient Operating Temperature Range | -40 to +85 Deg. C |
| Relative Humidity | Up to 95% | |
| All Surface Finishes | Fungus Proof and Corrosion Resitant | |
| Reliability | Vibration | 20 to 100 Hz. 500mm/sec |
