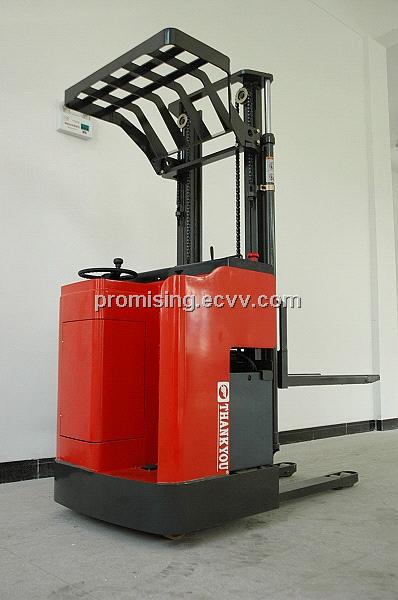

TB15E-30 Steering Wheel Electric Stacker
| FOB Price: | 20,000.00 - 100,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 30 days upon payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude |
Quick Details
- Brand Name: Dragon Machienry
- Model Number: TB15E-30
- Lift Drive / Actuation: Electric Motor
- Model: TB15E-30
- Rate Load Capacity (kg): 1500
- Load Center (mm): 600
- Max. Lifting Height (mm): 3000
Specifications
Features:
1. EPS steering system to make the operation easier;
2. Electronic type braking;
3. Intelligent charger that can automatically analyze the residual energy and optimize the charging process without needing any manual operation and extend the battery service life effectively;
4. Speed limit for high position to avoid the possibility of the overturning of goods when electric pallet stacker runs in high speed while goods are in a high position;
5. High Strength overhead guard to protect the operator.
Technical Specifications:
|
Model
|
TB15E-30
|
|
Rate Load Capacity (kg)
|
1500
|
|
Load Center (mm)
|
600
|
|
Max. Lifting Height (mm)
|
3000
|
|
Free Lift (mm)
|
0
|
|
Wheel Type
|
Polyurethane Solid Tire
|
|
Fork Size (LxW) (mm)
|
1150*190
|
|
Fork Outside Width (mm)
|
670
|
|
Overall Length (mm)
|
2132
|
|
Overall Width (mm)
|
940
|
|
Height of Mast Lowered (mm)
|
2060
|
|
Height of Mast Extended (with Backrest) (mm)
|
3522
|
|
Min. Turning Radius (mm)
|
1705
|
|
Front Wheel to Fork Tip (mm)
|
305
|
|
Max. Travel Speed (km/h)
|
4.8
|
|
Max. Gradeability (%)
|
8
|
|
Service Weight (with Battery) (kg)
|
~1350
|
|
Driving Wheel (mm)
|
Φ230*65
|
|
Front Wheel (mm)
|
Φ80*75
|
|
Balance Wheel (mm)
|
Φ150*50
|
|
Battery (V/Ah)
|
24/360
|
|
Charger (V/A)
|
24/40
|
|
Drive Motor (kW)
|
1.1 AC
|
|
Lift Motor (kW)
|
2.0
|
