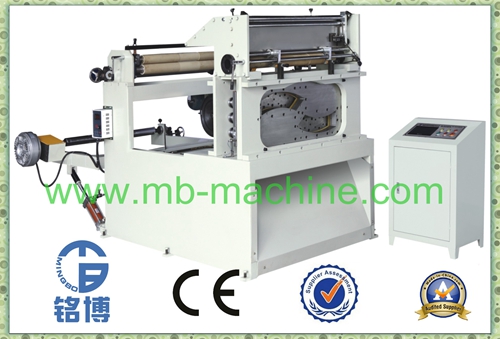

Fast speed paper cup punching and die cutting machine MB-CQ-850
| FOB Price: | 20,000.00 - 21,000.00 USD/Set |
|---|---|
| Supply Ability: | 300 Set/Sets per Year |
| Shipping: | By sea |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | seaworthy wooden cases |
Specifications
Auto feed die cutting machine is a good choice for punching and die cutting cup wall paper with different size by changing moulds, high speed and good performance.
Paper feeding in roll.
Especially, it will save 13% waste as the normal die cutting machine.
This punching and die cutting machine MB-CQ-850 is the upgraded model which is especially good for cutting fan shape paper cups, which adopt micro-computer to regulate the speed, servo motor to feed the paper and use photo sensor to cut and collect the blanks at a high speed.
It can work by setting certain length or following printing icon marks. compared with traditional hydraulic machine, it is much more efficient, time-saving, material saving and more profitable.
The material of mould is the mould steel import from KOREA, endurable and good performance.
Wastage percentage would be about 10-15%.
Technical Data:
Max Paper Width: 850mm
Max Speed: 180 Strokes/min
Available material: 100-900 gsm cardboard paper or PE coated paper
Control System: AC Servo Motor (Mitsubishi, 2kw)
Photo cell: by Germany CK or Panasonic
PLC controller: Mitsubishi, JAPAN
INVERTER: Mitsubishi
TOUCH SCREEN: LG
Electrical components: CHNT, Chinese famous brand.
Electric Power: 5 KW
Net Weight: 2100 Kg
Dimension of Machine: 3500mm×1500mm×2000mm
