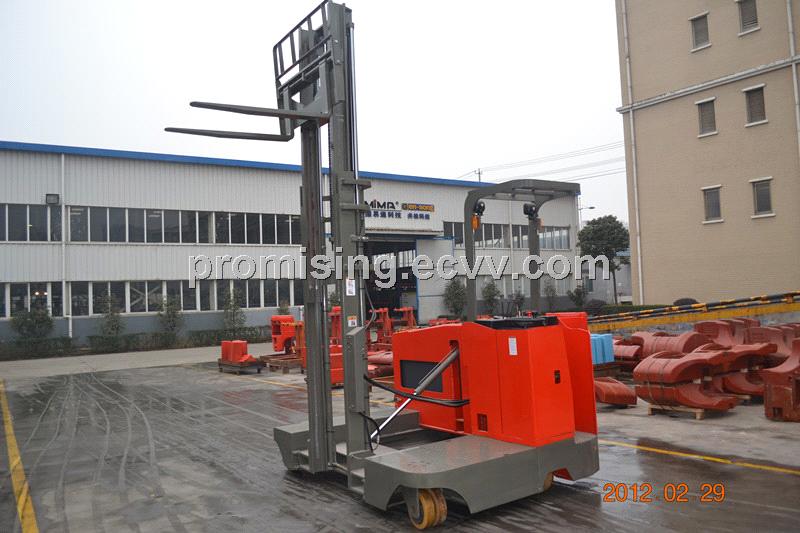

TD20-60 Electric Side Loading Forklift Truck
| FOB Price: | 20,000.00 - 100,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 30 days upon payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude |
Quick Details
- Brand Name: Dragon Machienry
- Model Number: TD20-60
- Lift Drive / Actuation: Hand
- Model: TD20-60
- Rated Load Capacity (kg）: 2000
- Operation Type: Stand-on
- Max. Lifting Height (mm): 6000
- Load Center (mm): 500
Specifications
Electric Side Loading Forklift Truck with two AC drive motors
Electric Side Loading Forklift Truck capacity 2000kg, 6000mm lifting height
Electric sideloader forklift truck, side loading electric narrow aisle forklift truck, electric sideloader narrow aisle lift truck, side loading electric forklifts, Electric side loading truck, Electric side loader forklift truck, battery side loading forklift, battery side loader fork lift, electric side loading fork lift
Applications:
This 2000kg capacity Electric Side Loading Forklift Truck is ideal for multiple applications, such as narrow aisle storage, palletless handling, specialty racks and long load handling. It can move long or bulky materials in very narrow aisles and stack higher to maximize your warehouse space and make short Work of long loads.
Features:
1. Lift cylinder equipped with buffering function to ensure the safety of goods when lifting and lowering;
2. Waterproof design of all electric connectors to prevent them from short-circuiting to make the forklift more durable;
3. Better Stability;
4. Battery side-mounting design to make the change and maintenance of the battery easier;
5. Vertical drive motor to increase the service life of the forklift truck;
6. Ergonomic design and shock absorbing configuration to enhance the operator comfort;
7. Electromagnetic brake to make the parking brake safer;
Technical Specifications:
|
Model
|
TD20-60
|
|
Rated Load Capacity (kg)
|
2000
|
|
Operation Type
|
Stand-on
|
|
Max. Lifting Height (mm)
|
6000
|
|
Min. Turning Radius (mm)
|
2572
|
|
Min. Aisle Width - 90° Stack (1000*1000 Pallet) (mm)
|
2772
|
|
Max. Travel Speed (Full-load/No-load) (km/h)
|
6.0/7.0
|
|
Load Center (mm)
|
500
|
|
Fork Dimensions (L*W*T) (mm)
|
920*100*45
|
|
Lifting Speed (Full-load/No-load) (mm/s)
|
120/270
|
|
Overall Length (mm)
|
2580
|
|
Overall Width (mm)
|
2000
|
|
Height of Overhead Guard (mm)
|
2330
|
|
Height of Mast Lowered (mm)
|
2686
|
|
Height of Mast Extended (with Backrest) (mm)
|
6875
|
|
Free Lift (mm)
|
100
|
|
Height of Outrigger (mm)
|
415
|
|
Mast Tilt Angle (Forward/Backward) (deg.)
|
3/5
|
|
Fork Spread (mm)
|
247-1072
|
|
Reach Stroke (mm)
|
1065
|
|
Min. Ground Clearance (mm)
|
88
|
|
Wheel Type
|
Polyurethane Solid Tyre
|
|
Driving Wheel (mm)
|
Φ343×120
|
|
Balance Wheel (mm)
|
Φ204×80
|
|
Front Wheel (mm)
|
Φ267×114
|
|
Swivel Caster Wheel (mm)
|
Φ267×76
|
|
Battery (V/Ah)
|
48/400
|
|
Charger (V/A)
|
48/50
|
|
Service Brake
|
Electromagnetic
|
|
Parking Brake
|
Electromagnetic
|
|
Drive Motor (kW)
|
5.5 (AC)
|
|
Lift Motor (kW)
|
7.5
|
Note: All specifications and design characteristics are subject to change without prior notice.
