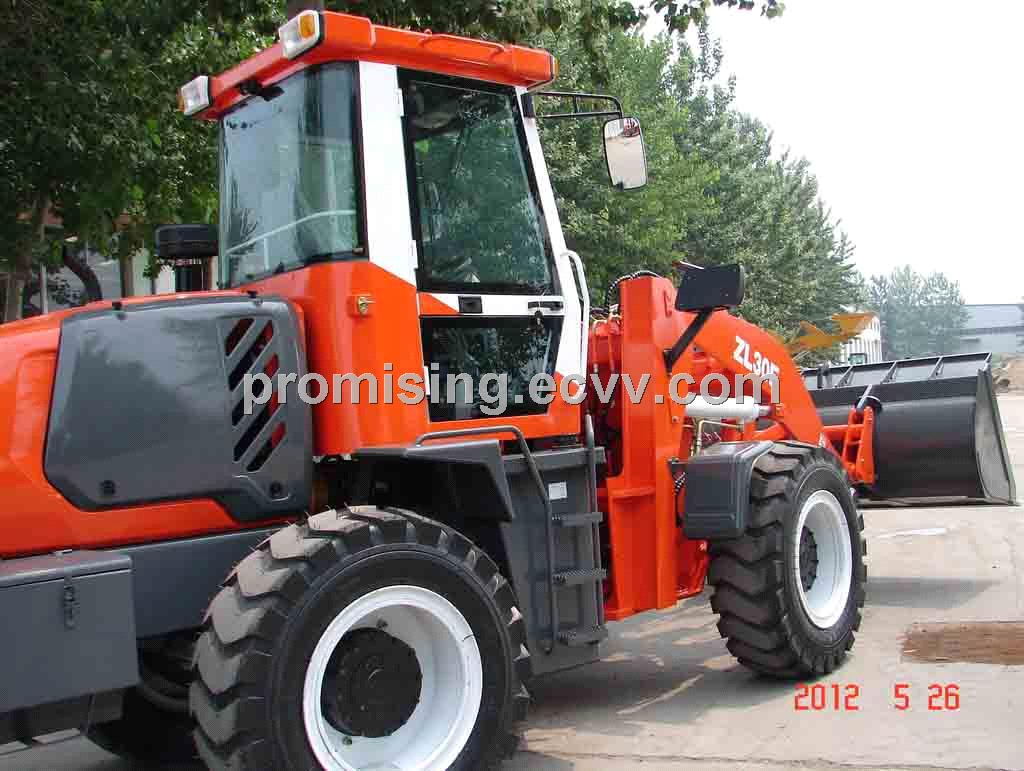

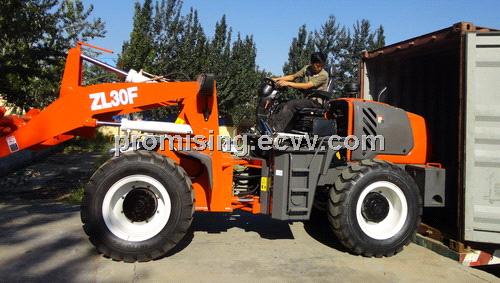

Earthmoving Machine Loader ZL30FS with Optional Attachments
Supply Ability: | 200 Set/Sets per Month |
---|---|
Shipping: | within 30 days |
Payment Terms: | T/T |
Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
---|---|
Place of Origin: | Shandong in China |
Packaging Details: | nude packaging |
Quick Details
- rated load: 3000kg
- total weight: 7000kg
- rated bucket capacity: 1.9cbm
- drive mode: 4 wheel drive
- Tire Type Specification : 16/70-24-16PR
Specifications
Main Technical Parameters
Wheel Loader Model: ZL30FS
|
||
|
Item
|
Parameters
|
Performance
|
1 . Rated Load
|
3000 kg
|
2. Total Weight
|
7000 kg
|
|
3. Rated Bucket Capacity
|
1.5 - 1.9 m3
|
|
4. Max. Tractive Force
|
61 KN
|
|
5. Max. Breakout Force
|
≥ 72 KN
|
|
6. Max. Gradeability
|
38°
|
|
7. Max. Dumping Height
|
3500 mm
|
|
8. Max. Dumping Reach
|
1300 mm
|
|
9. Raising Time
|
≤ 6.0 s
|
|
10. Total Cycle Time
|
≤ 11.5 s
|
|
11. Overall Dimensions (L x W x H)
|
6900*2050*2950 mm
|
|
12. Min. Turning Radius
|
3800 mm
|
|
Engine
|
13. Model
|
WEICHAIHUAFENG 4RMAZG Turbocharged Engine
YUCHAI YCD4J22T-115 Turbocharged Engine
|
14. Type
|
Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
|
|
15. Rated Power
|
83 kW/85 kW
|
|
16. Rated Speed
|
2400 rpm
|
|
17. Min. Fuel Consumption Ratio
|
≤ 210 g/kW· h
|
|
Transmission System
|
18. Hydraulic Torque Converter
|
ZL280 Split Torque Converter
|
19. Gear Shift
|
1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
|
|
20. Max. Speed
|
25 km/h
|
|
Drive Axle
|
21. Model of Axle
|
ZL20 Hub Reduction Axle (big)
|
22. Wheel Tread
|
1650 mm
|
|
23. Wheel Base
|
2600 mm
|
|
Drive
|
24. Mode
|
4-wheel Drive
|
Hydraulic System
|
25. System Working Pressure
|
20 Mpa
|
26. Fuel Tank Capacity
|
100 L
|
|
Brake System
|
27. Service Brake
|
Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
|
28. Parking Brake
|
Hand Lever Flexible Shaft Controlled Disc Brake
|
|
Tyre
|
29. Type Specification
|
16/70-24-16PR
|
30. Front Tyre Pressure
|
0.40 Mpa
|
|
31. Rear Tyre Pressure
|
0.35 Mpa
|
Optional Attachments:
Log grab, grass grapple, Pallet fork, bale clamps, drum clamps, 4-in-1 bucket, straight snow blade, v-shape snow blade, snow bucket, snow blower, hydraulic quick hitch, sanding bucket, bucket broom, angle broom, screening bucket, etc..
If you have any questions, please feel free to contact Ms. Lisa Liu.
