Overhead AAC Conductor

FOB Price:	0.10 - 1.00 USD/Meter
Supply Ability:	100,000 Meter per Month
Shipping:	15 days after the confirm of order, FOB Qingdao or Tianjin Port
Payment Terms:	L/C, T/T, Paypal, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Wood drum

Quick Details

Size of AAC: 16 sqmm to 1000sqmm
Standard: IEC, ASTM, BS, DIN, JIS, AS/NZS
conductor temperature: 75°C
type of aac cable: stranded
Price: Factory price
Packing: Wood Drum
Full Name: al aluminum conductor aac
sample: free
No. of strands: 7,19,37,61
Experience: 30 years

Specifications

Description

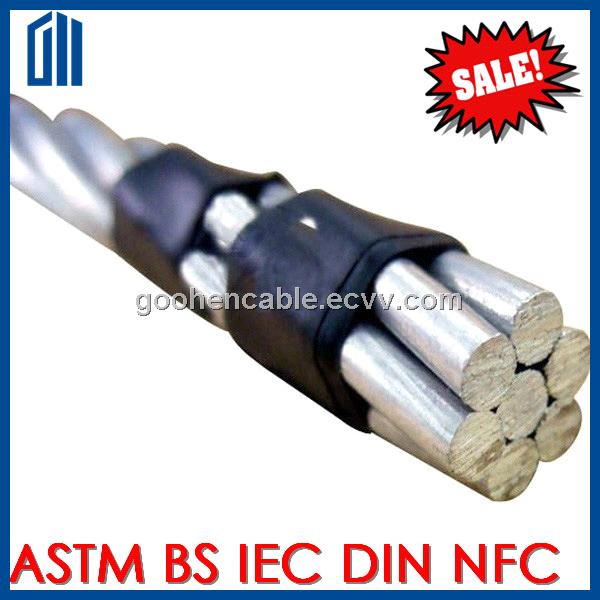

AAC Conductor are constructed with a straight round central aluminum wire surrounded by one or more layers of helically laid aluminium wires. The most commonly used stranding consists of 7, 19, 37, 61 and 91 wires.
In all constructions, the successive layers shall have opposite directions of lay, the outermost layer being right-handed.

Application
Used in overhead electric power transmission and distribution lines with various grade voltages.
The most favoured overhead bare homogeneous conductors for primary and secondary distribution lines with relatively short spans where high mechanical strength is not required.

Manufacturing Standards
GB/T 1179-2008, IEC 61089, EN 50182, DIN 48201 Part 5, BS 215 Part 1, ASTM B231 or as required.

Technical Characteristics Based on Standard DIN 48201 / DIN EN50182
Code number	Area	Number of wires	Wire diameter	Conductor diameter	Linear mass	Rated strength	D.C. resistance at 20^oC
Code number	mm²	No.	mm	mm	kg/km	kN	Ω/km
16	15.9	7	1.7	5.1	43.4	3.02	1.7986
25	24.2	7	2.1	6.3	66.3	4.36	1.1787
35	34.4	7	2.5	7.5	93.9	6.01	0.8317
50	49.5	7	3	9	135.2	8.41	0.5776
50	48.3	19	1.8	9	132.9	8.94	0.5944
70	65.8	19	2.1	10.5	180.9	11.85	0.4367
95	93.3	19	2.5	12.5	256.3	16.32	0.3081
120	117	19	2.8	14	321.5	19.89	0.2456
150	147.1	37	2.25	15.8	405.7	26.48	0.196
185	181.6	37	2.5	17.5	500.9	31.78	0.1588
240	242.5	61	2.25	20.3	671.1	43.66	0.1193
300	299.4	61	2.5	22.5	828.5	52.4	0.0966

Technical Characteristics Based on Standard BS 215-1
Code name	Nominal aluminium area	Stranding and wire diameter	Sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20^oC	Calculated breaking load
Code name	mm²	No./mm	mm²	mm	kg/km	Ω/km	kN
MIDGE	22	7/2.06	23.33	6.18	64	1.227	3.99
ANT	50	7/3.10	52.83	9.3	145	0.5419	8.28
FLY	60	7/3.40	63.55	10.2	174	0.4505	9.9
WASP	100	7/4.39	106	13.17	290	0.2702	16
HORNET	150	19/3.25	157.6	16.25	434	0.1825	25.7
CHAFER	200	19/3.78	213.2	18.9	587	0.1349	32.4
COCKROACH	250	19/4.22	265.7	21.1	731	0.1083	40.4
BUTTERFLY	300	19/4.65	322.7	23.25	888	0.08916	48.75

Technical Characteristics Based on Standard ASTM B231
Code Words	Size	Area	Number of wires	Wire diameter	Conductor diameter	Linear mass	Rated strength	Calculated D.C. resistance at 20^oC
Code Words	AWG or kcmil	mm²	No.	mm	mm	kg/km	kN	Ω/km
Oxlip	4/0	107.2	7	4.42	13.26	295.2	17	0.268
Tulip	336.4	170.5	19	3.38	16.9	469.5	27.3	0.1688
Cosmos	477	241.7	19	4.02	20.1	664.8	37	0.1194
Orchid	636	322.3	37	3.33	23.31	886.9	50.4	0.0895
Arbutus	795	102.8	37	3.72	26.04	1109	61.8	0.0717
