Aluminum box culvert, the premier replacement of concrete culvert

Inquiry Now

Specifications

Aluminum box culverts provide a practical and low-cost solution for small bridge or other hydraulic structures. Aluminum structural plate box culverts are field assembled into the desired shape depending on practical situations. Box culverts should be given top priority when the headroom over the structure is limited, for example, 1.4 to 5.0 feet.

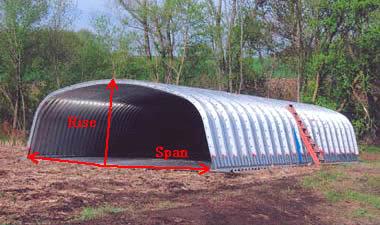

Aluminum box culvert in final shape

Compared with conventional concrete box culverts, box culverts do little damage to the environment, especially environmentally sensitive streams. Aluminum box culverts are not affected by the extreme weathers, such as frost weather, eliminating regular and expensive maintenance. They also have short delivery time, economic cost, and easy installation and free maintenance.

Benefits of Aluminum structural plate box culvert

Lightweight
Lightweight of structural plate box culverts is a vital benefit of easy handling. For similar volume, the weight of aluminum accounts for 2% of concrete pipe and 1/3 of steel structure.

Easy installation
Aluminum structural plates can be preassembled not at the final installation place to significantly shorten the handling time. Lightweight makes the plates easy to handle at the installation plate.

Long life span
Aluminum alloy form a thin but tough surface barrier when exposed to oxygen. This barrier is not easy to damaged or removed by harsh environment conditions. A great number of studies and researches have proven that aluminum drainage products have at least 75 year service life for 0.1 inch-thickness aluminum plate. In salt water area like coastal areas, granular backfill materials around the structure will not reduce but enhance performance.

Friendly to environment
installation of aluminum box culvert reduce or abandon the use of conventional building materials, such as cement, sand, gravel, wood. And its delivery time is much shorter. All these factors contribute to little damage to environments.

Product specifications

Part No.	Span(mm)	Rise(mm)	End area (m²)
ACB01	3170	1180	3.12
ACB02	3550	1420	4.33
ACB03	3840	1465	4.94
ACB04	3965	2210	7.35
ACB05	3865	1260	4.18
ACB06	4105	1860	6.56
ACB07	4210	1310	4.76
ACB08	4735	1960	8.16
ACB09	4550	1360	5.36
ACB10	4890	1610	6.97
ACB11	4860	2365	10.09
ACB12	5155	2420	11.06
ACB13	5215	1670	7.72
ACB14	5360	2075	9.89
ACB15	5320	1440	6.62
ACB16	5445	2480	12.07
ACB17	5655	1505	7.33
ACB18	5955	2645	14.23
ACB19	5895	1595	8.17
ACB20	6165	1900	10.33
ACB21	6235	2715	15.36
ACB22	6320	1645	8.91
ACB23	6480	1975	11.25
ACB24	6495	2380	13.89
ACB25	6645	1720	9.77
ACB26	6970	1795	10.67
ACB27	7000	2200	13.5
ACB28	7025	2610	16.35
ACB29	7290	1875	11.62
ACB30	7300	2285	14.58
ACB31	7310	2690	17.56

Part No.	Span (mm)	Rise (mm)	End area (m²)
ACB32	7405	1680	10.21
ACB33	7800	1965	12.71
ACB34	7945	2370	15.87
ACB35	8575	1920	13.9
ACB36	8605	2325	17.38
ACB37	8635	2735	20.89
ACB38	9145	1940	14.64
ACB39	9225	2345	18.35
ACB40	9310	2750	22.1
ACB41	9810	2105	16.92
ACB42	9865	2510	20.9
ACB43	9920	2920	24.92
ACB44	10460	2285	19.43
ACB45	10485	2690	23.68
ACB46	10515	3100	27.95
ACB47	10895	2355	20.59
ACB48	10940	2760	25.02
ACB49	10990	3165	29.47
ACB50	11645	2530	23.31
ACB51	11700	2935	28.04
ACB52	11750	3345	32.81
ACB53	12270	2745	26.46
ACB54	12290	3150	31.45
ACB55	12315	3555	36.45
ACB56	13028	2830	30.72
ACB57	13050	3236	36.02
ACB58	14092	3071	35.61
ACB59	14111	3477	41.34
ACB60	15020	3168	38.38
ACB61	15038	3574	44.48
ACB62	15579	3845	49.46
ACB63	15748	3994	52.12

Aluminum box culvert used as a bridge, which will significantly decrease bridge budget but will enhance the performance.
