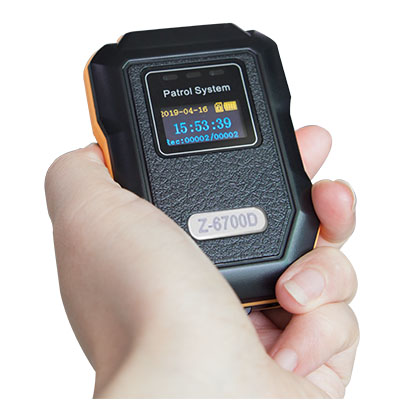

Z-6700D 4G Online GPRS Guard Patrol System

Supply Ability:	10,000 Piece(s) per Month
Shipping:	Shenzhen port
Payment Terms:	T/T, Delivery after payment

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Box or carton

Quick Details

Brand Name: ZOOY
Color: Yellow
Wire Dia: N/A
material: Engineering plastic
Certificate: CE
Model Number: Z-6700D
Data transmission: with 4G network
Workable tags: 125kHz RFID tags
Memory capacity: 80,000 logs
Material: ABS plastic shell, rubber handle
SIM card supported: Nano SIM card
IP rating: IP67
Battery capacity: 1200mAh rechargeable li-ion battery
Size & Weight: 82*52*22mm 73g

Specifications

ZOOY Z-6700D is a real time security guard patrol system that adopts 2G GSM (have 4G for option also ) communication technology, which is able to send data from the handheld patrol reader to server immediately with GPRS. the most convenient is that no need to bring handheld patrol reader back to computer room to download data. Which facilitate the collection of patrol data greatly. the OLED display offers the info of connection status, network configuration, and other operations tips, user can know if data sent out successfully directly, reduced much technical worry.

Z-6700D Online Real Time Guard Patrol System

Read Method: Auto-induction technology, no touch reading of RID tags,breaking through the traditional contact card read, reducing the failure rate.

Waterproof: Completely sealed design can be used underwater.
Super low power consumption: Standby power consumption is 50 UA, camera battery CR123A; it can be working two years continuously.
Metal Structure: Engineering plastic shell
Transmission mode: Transfer patrol logs to software remotely with 4G network
Card-reading Technology: Switzerland EM induction card-reading technology.
Large Capacity: Data storage up to 8000 records.
Safety: Data can be stored for 30 years without power.
Direction: LED + vibration
Support Language: support simplified and complex Chinese, English and other languages

Why RFID Guard Reader?

Patrol check is the specified worker patrolling,checking,maintaining for the equipment,producing process which they controlled.Or the security personnel patrol check in residential property,hotels,Office buildings,storage,factories,hospital termly. but now most enterprise are patrolling with register one's attendance,punch in (with high failure rate) etc.these method is difficult to check the real patrolling time,but also provide the chance for someone with mind by lucky.

Now the patrol system provide the strong science and technology support,with the intelligent patrol guard system,improve the patrolling management standards.Avoid the unnecessary economic loss or and accident responsibility.

Application Area

1.Manufacturing and Industrial

2.Warehousing and Distribution

3.Hospitals and Healthcare

4.Financial Institutions

5.Aviation and Maritime

6.Chemical and Petrochemical

7.Real Estate and Property Management

8.Corporate and Office Campuses

9.Retail and Shopping Centers

Rk supported bands	4G(customized)	FDD-LTE:800/1800/2100/2600MHz(B1,B3,B7,B20) TDB-LTE:2600(B38)/1900/2400/2500MHz(B39,B40,B41)
	2G	GSM: 850/900/1800/1900MHz
	WiFi(customized)	802.11a/b/g/n
Screen	Size	0.9 inch OLED screen
Screen	Pixels	128*64px
Reader information	Reading technology	125KHz RFID (EM-ID tag )
	Material	ABS plastic shell, rubber handle
	Prompt	LED+Vibration+display
	Memory	80,000 logs
	Impact Record	32,000 logs
	SIM card	Nano card
	IP rating	IP67
Physical button	Booting/Shut down	Long press 3 seconds
Physical button	SOS alarm	Enter the config page long press 3 seconds
Wired communication	USB	Anti-vandal magnetic USB cable
Battery	Capacity	1200mAh rechargeable li-ion battery
	Working time	20 hours
	Working consumption	60mA
	Stand-by	10mA
	Charging time	1.2-2 hours(5V/1A)
Size	Dimension	825222mm
Size	Weight	73g
Working Environment	Humidity	30% to 95%
Working Environment	Temperature	-20 to 70℃
