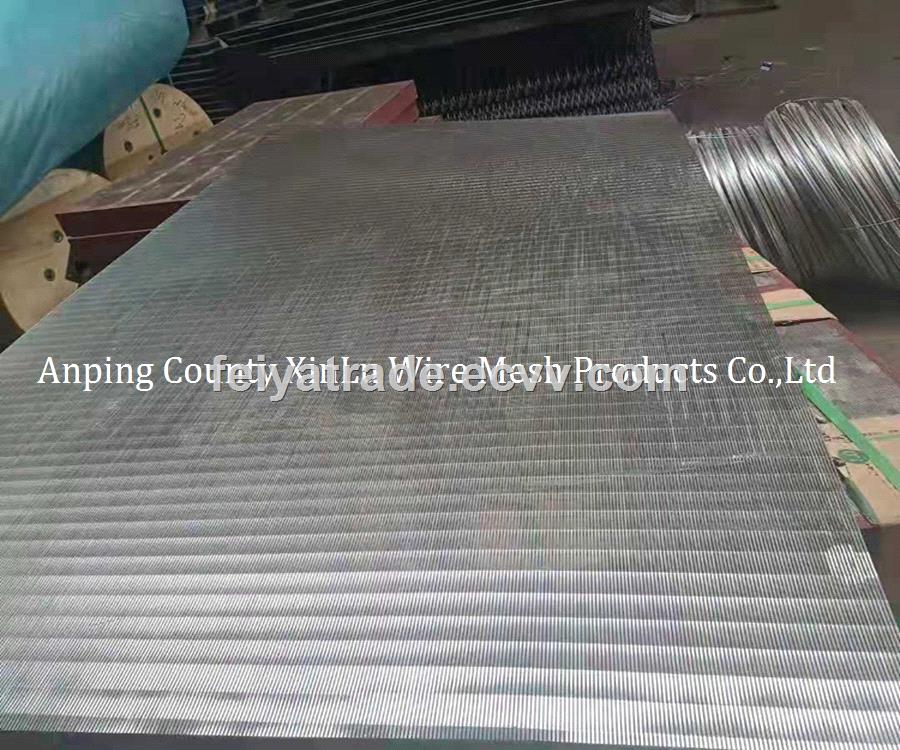

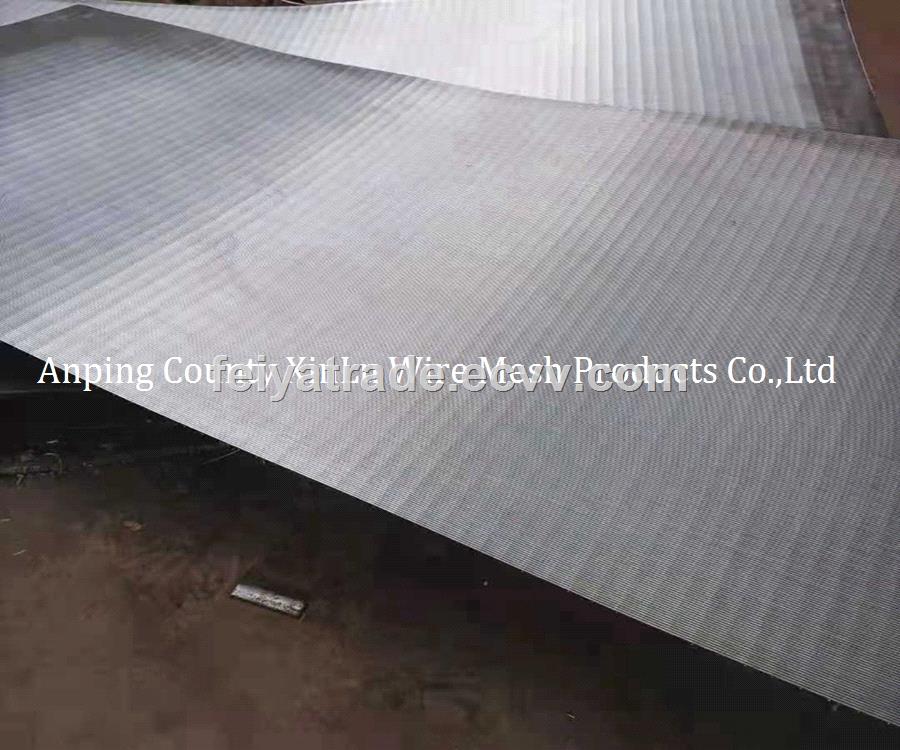

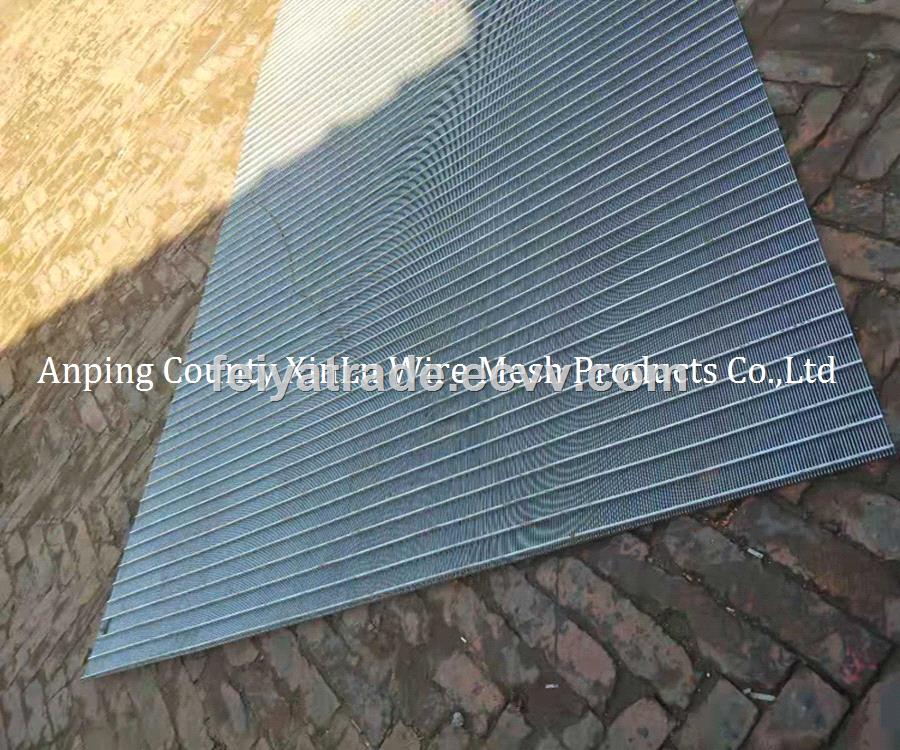

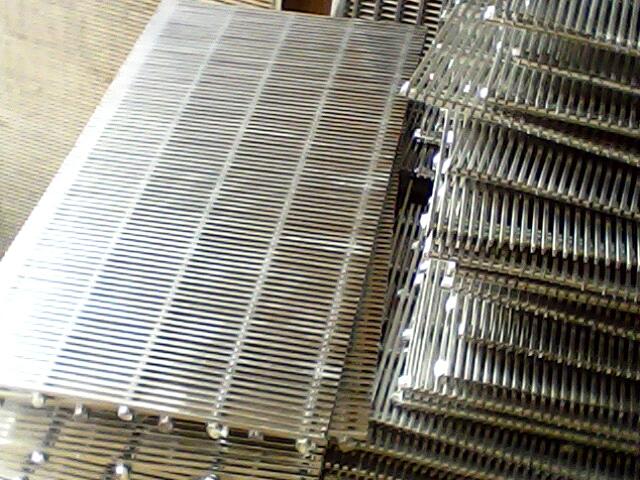

V WIRE / WEDGE WIRE WRAPPED JOHNSON SCREEN PANEL
| Supply Ability: | 886 Square Meter(s) per Day |
|---|---|
| Shipping: | let customer choose by air, by sea, by train, by express mail |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | to order |
Quick Details
- Technique: Welded
- Hole Shape: Square
- Material: stainless steel 304, 316L, 321, 201
- Application: Screen
- Brand Name: v wire wedge wire screen panel
- Mesh Size: 0.1-10mm
- Wire Gauge: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm,3x4.6mm
- Model Number: wedge wire johnon screen panel 4x8ft
- Filter Name: wedge wire johnson screen panel, v wire slot panel
- slot: 0.1-60mm
- width: 4ft =1.22m
- length: 8ft=2.44m
- v profile wire: 2.3x3.5mm
- support wire: 3x4.6mm
- surface treatment: polish
- high light tag: Johnson Stainless Steel Filter Screen, 0.02mm Stainless Steel Filter Screen, 0.05mm Vee Wire Filter Screen
Specifications
V WIRE / WEDGE WIRE WRAPPED JOHNSON SCREEN PANEL
Stainless steel filter screen, Wedge Wire Screen Filter, Wedge Wire Filter Elements, Flat wedge wire Panel, Wire wrapped screen panel, Johnson screen plate, v wire slot plate,profile wire screen panel, sieve bend screen, arc screen, rotary drum screen Cylindrical strainer
XinLu water well screen are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water(oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.
Stainless Steel Filter Screen Description
Lengths up to 6 meters.
Wdith up to 4m
Specifications are according to customers& actual requests.
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30 6.00mm also achieved upon request.
Material: Low carton steel wire, iron wire, stainless steel (304,316,321 etc.)
End connection: Frame
Stainless Steel Wedge Wire Filter Screen Features:
1. High screening rate;abrasion resistance, corrosion resistance, anti - slip,anti - vibration, strong elasticity, toughness, not close.the mesh section is trapezoid or wedge.
2. There's room in the gap.It is made of stainless steel wire cold rolled screen, support bar is welded by automatic production equipment.
3.Screen seam uniform, stable welding quality, high porosity,long service life, high strength, steel degree and bearing capacity, can be made into various shapes of screen filter device.
