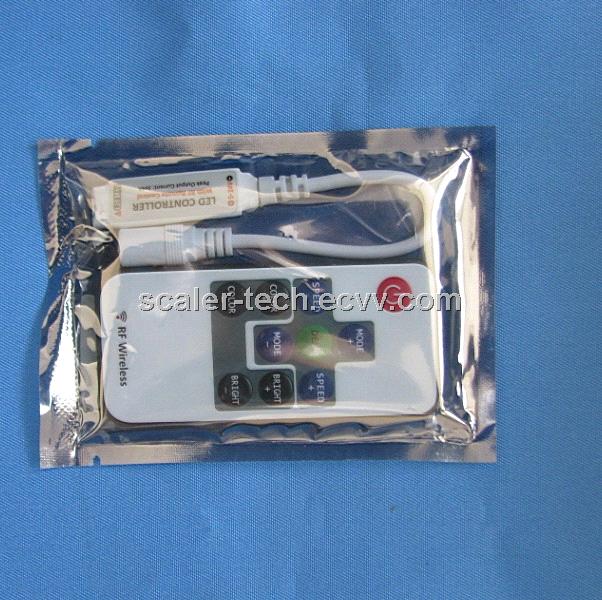

Cheap LED RGB Controller(SC-MINI-RM-RGB01)

Specifications

Product name: cheap LED RGB Controller
Model No. :SC-MINI-RM-RGB01

Features:
It is a new brand RF RGB LED Strip Controller, it presents 19dynamic modes and 20static colors, the top performance of similar products. You can easily change the mode, speed, color and brightness by pressing keys .it is the best mate for your led strips.

Specification:
Item No. SC-MINI-RM-RGB01
Input voltage: DC12~24V
Max output: 12V/4A*3CH, 24V/4A*3CH.
Dynamic mode 19modes
Brightness Grade 256levels
Speed Grade 10levels
Static Color 20colors
Remote Frequency 433.92MHz
Remote distance >15meters without obstacle
Polarity: Common anode

Package:no product box,just PPS package

Remark: there are more led controllers ,please take a look at our official website and contact us for more details

Noted:

1. The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it

2. The 4wires coming out of the controller can't be incorrectly interconnected or short circuit could occur

3. Connect the wires of the controller and LED fittings as per the instruction

4. Don't peel off the label on the controller in case any indication information will be missed

5. The standard warranty is one yeas Our company won't be responsible for any damage of the Controller due to any wrong operation.
