Qingdao Promising International Co., Ltd.
China Manufacturer with main products: Mini Loader, Small Loader, Wheel Loader, Mini Front Loader, Small Front Loader, Articulated Loader, Forklift Truck, Forklift |

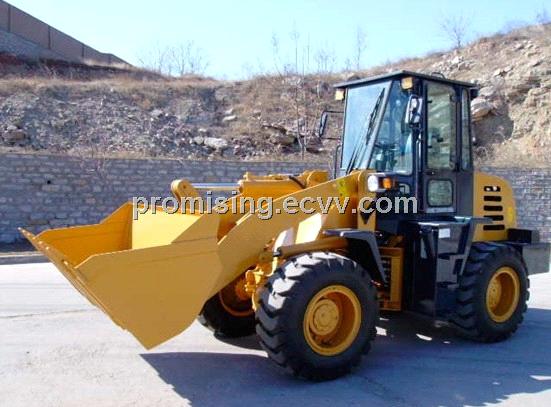

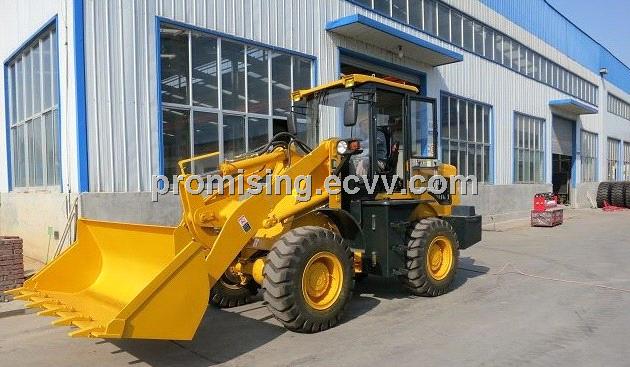

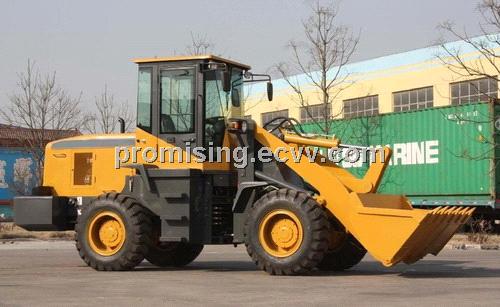

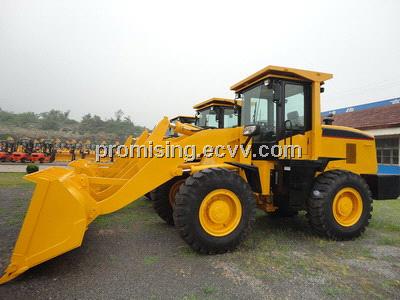

Wheel Loader ZL20F With Cummins Engine
| FOB Price: | 14,300.00 - 20,850.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 30 days upon payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude |
Quick Details
- Condition: New
- Brand Name: Dragon Loader
- Model Number: ZL20F
- Type: Front Loader
- Dimension(Long * Breadth * High): 6020*1950*2850 mm
- Rated Load: 2000 kg
- Certification: CE
- Warranty: 12 months
- After-sales Service Provided: Overseas service center available
- Rated Load: 2000 kg
- Total Weight: 6080 kg
- Rated Bucket Capacity: 1.0 -1.7 m3
- Rated Power: 60 kW / 62 kW (81 HP/84 HP)
- Max. Speed: 25 km/h
Specifications
|
Model: ZL20F
|
||
|
|
Item
|
Parameters
|
|
Performance
|
1 . Rated Load
|
2000 kg
|
|
2. Total Weight
|
6080 kg
|
|
|
3. Rated Bucket Capacity
|
1.0 -1.7 m3
|
|
|
4. Max. Tractive Force
|
50.8 KN
|
|
|
5. Max. Breakout Force
|
≥ 60.8 KN
|
|
|
6. Max. Gradeability
|
38°
|
|
|
7. Max. Dumping Height
|
3200 mm
|
|
|
8. Max. Dumping Reach
|
1100 mm
|
|
|
9. Raising Time
|
≤ 6.0 s
|
|
|
10. Total Cycle Time
|
≤ 11.5 s
|
|
|
11. Overall Dimensions (L x W x H)
|
6020*1950*2850 mm
|
|
|
12. Min. Turning Radius
|
3300 mm
|
|
|
Engine
|
13. Model
|
WEICHAI HUAFENG 4NRSG3 / DONGFANGHONG YT4B2-24 / YUCHAI 4105 / Cummins B3.3 (EPA Tier IV)
|
|
14. Type
|
Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
|
|
|
15. Rated Power
|
60 kW / 62 kW (81 HP/84 HP)
|
|
|
16. Rated Speed
|
2400 rpm / 2400 rpm / 2400 rpm / 2200 rpm
|
|
|
17. Min. Fuel Consumption Ratio
|
≤ 251.6 g/kW· h
|
|
|
Transmission System
|
18. Hydraulic Torque Converter
|
ZL280 Integrated Hydraulic Torque Converter
|
|
19. Gear Shift
|
1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
|
|
|
20. Max. Speed
|
25 km/h
|
|
|
Drive Axle
|
21. Model of Axle
|
ZL20 Hub Reduction Axle (big)
|
|
22. Wheel Tread
|
1600 mm
|
|
|
23. Wheel Base
|
2440 mm
|
|
|
Drive
|
24. Mode
|
4-wheel Drive
|
|
Hydraulic System
|
25. System Working Pressure
|
20 Mpa
|
|
26. Fuel Tank Capacity
|
93 L
|
|
|
Brake System
|
27. Service Brake
|
Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
|
|
28. Parking Brake
|
Hand Lever Flexible Shaft Controlled Disc Brake
|
|
|
Tyre
|
29. Type Specification
|
16/70-20-16PR
|
|
30. Front Tyre Pressure
|
0.40 Mpa
|
|
|
31. Rear Tyre Pressure
|
0.35 Mpa
|
|
