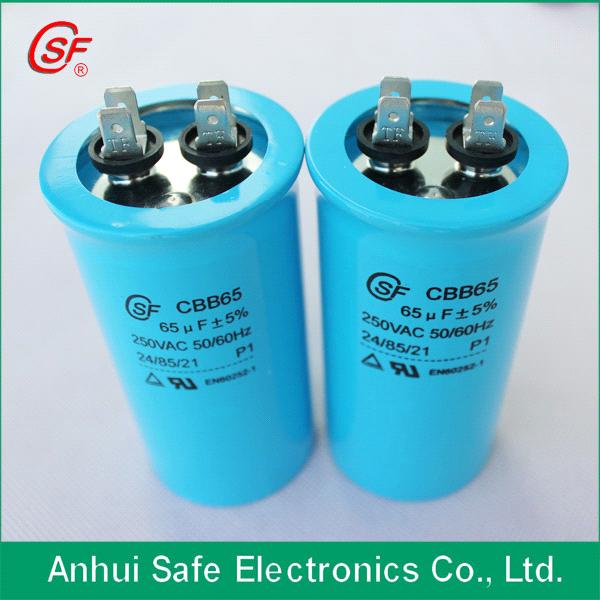

air conditioner capacitor from capacitor bank

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Electrolytic Capacitors

Price:

Min. Order:10000 Pieces
High Power Ceramic Capacitors

Price:

Min. Order:
SMD Capacitor

Price:1000.00 USD/Piece

Min. Order:0 Piece
Snap In Electrolytic Capacitor 270uF 450V

Price:0.01-0.05 USD/Piece

Min. Order:1,000 Pieces

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	capacitor standard export cartons with pallets and also as customer requests

Quick Details

produce variable type capacitors

(A)Feature:

The product is equipped inside with reliable explosion-proof equipment and is highly

safe. With its good self-healing characteristic and long life span, it is widely used for

air-conditioners, refrigerators, generators, compressor, etc.

(B)specication:

Working Temperature Range climate types:40/70/21 ;25/85/21

Rated Voltage Range :200 VAC -660 VAC

Rated Capacitance Range :3uF-120uF

Dissipation Factor Tan ≤ 0.002 (50Hz)

Capacitance range: ±5%

Testing Voltage between leading-out ends: 1.75UR 10S

no break down Insulation resistance between leading-out ends: 3000

(C)Technical feature

*Product Type*	Metallized Film Capacitor
*Capacitance Range*	3uF~120uF
*Capacitance Deviation*	±5% or According to Customer's requests.
*Rated Voltage*	200VAC,250VAC,370VAC,400VAC,440VAC, 450VAC,500VAC,550VAC,630VAC,660VAC
*Rated Frequency*	50/60Hz
*Class of safety protection*	P1/P2
*Testing Voltage*	T-T:2.0Un/60S
*Insulation Resistance*	≥3000S
*Tangent of loss angle of a capacitor*	Tanδ≤0.002(100Hz)
*Operating Temperature*	-40°C~+85 °C
*Life Span*	Class B, Class C
