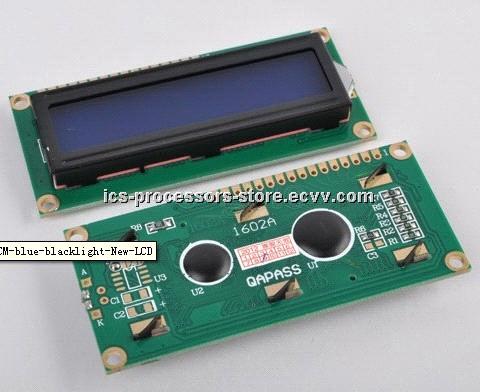

1602 HD44780 Character Display Module LCM blue backlight New LCD
| FOB Price: | 2.69 - 3.45 USD/Piece |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
100% Brand new , never used
Item's color might be different from the picture because of the aberration.
Feature:
Wide viewing angle and high contrast
Color of backlight: blue
Built-in industry standard HD44780 equivalent LCD controller
Can display 2-lines x 16-characters
Operate with 5V DC
LCM type: Characters
Application: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices
1602 adopts a standard 16-pin interface:
Pin 1: VSS to power
Pin 2: VDD connected to 5V positive power supply
Pin 3: V0 LCD display contrast adjustment terminal
Pin 4: RS Register Select
Pin 5: R / W for read and write signal line
Pin 6: E-ended is enable end, When E Duanyou high jump becomes low, the LCD module execute the command
Pin 7 to 14 : D0 to D7 for 8-bit bidirectional data line
Pin 15 : Backlight positive power supply
Pin 16 : backlight negative power supply
Module dimension: 80mm x 36mm x 11mm
Viewing area size: 64.5mm x 16mm
Weight: 32g
Package include:
1 x 1602 LCD Display Module
