Gas Leakage Detector for Home Fire Alarm Lpg Gas Leak Sensor with Solenoid Valve & Manipulator

Supply Ability:	60,000 Piece(s) per Month
Payment Terms:	T/T, Western Union, Other, Paypal

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Brand Name: Patrol Hawk
color: white
Executive standard: CE
Operating Voltage: AC220V+15%50Hz
Product name: Wireless Gas Detector
Model Number: JT-XYQG-03
Normal monitoring: <2W,
Alarm states: <3W
Detecting Gas: CH4
Range/Detection Range: 0-25%LEL
Alarm Setting Value: 8%LEL
Alarm Mode: Audible and visual alarm wireless transmission
Alarm Volume: >70dB/1m
Lifetime: 3-5years

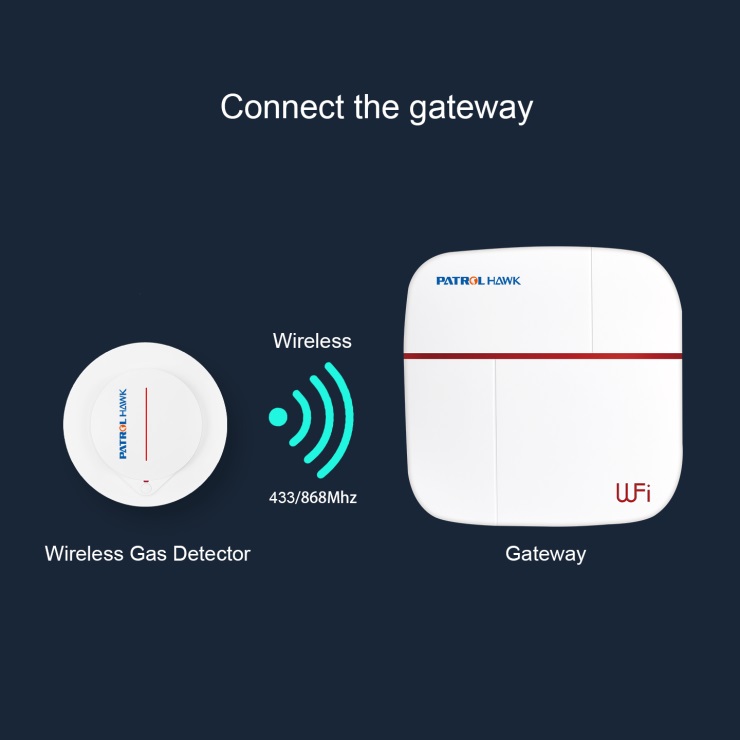

Radio Frequency: 433MHz/868MHz/LoRa433MHz/LoRa868MHz
Shell Material: ABS Plastic

Specifications

1.Production Introduction

the combustible gas detector(Hereinafter referred to as detector) is equipped with advanced microprocessing technology and a high-quality semiconductor gas sensor that offers excellent stability. the detector is used to detect combustible gas, and the fire caused by the diffusion of combustible gas can be safely detected and warned.It is highly sensitive, reliable, smoke-resistant, alcohol-resistant, and comes with an automatic temperature compensation function. It is suitable for use in homes, apartments, and other locations that require flammable gas safety monitoring.

2.Features

1. the gas sensor has excellent linearity, high stability, and a long lifespan.

2. It features a compact size, simple installation, and easy operation.

3. There is a built-in buzzer with an alarm function for added safety.

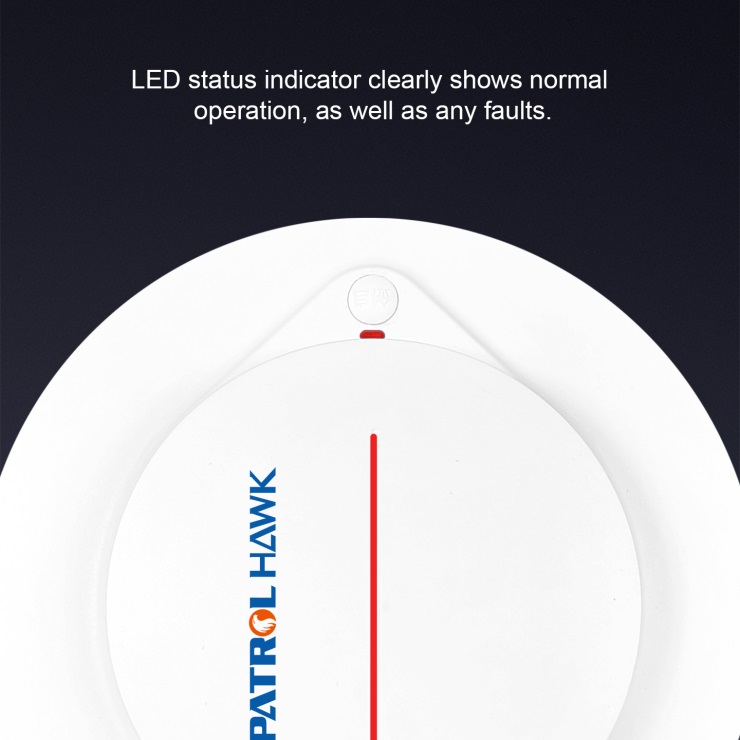

4. An LED status indicator clearly shows normal operation, as well as any faults.

5. the device also includes intuitive buttons and a self-test function for ease of use.

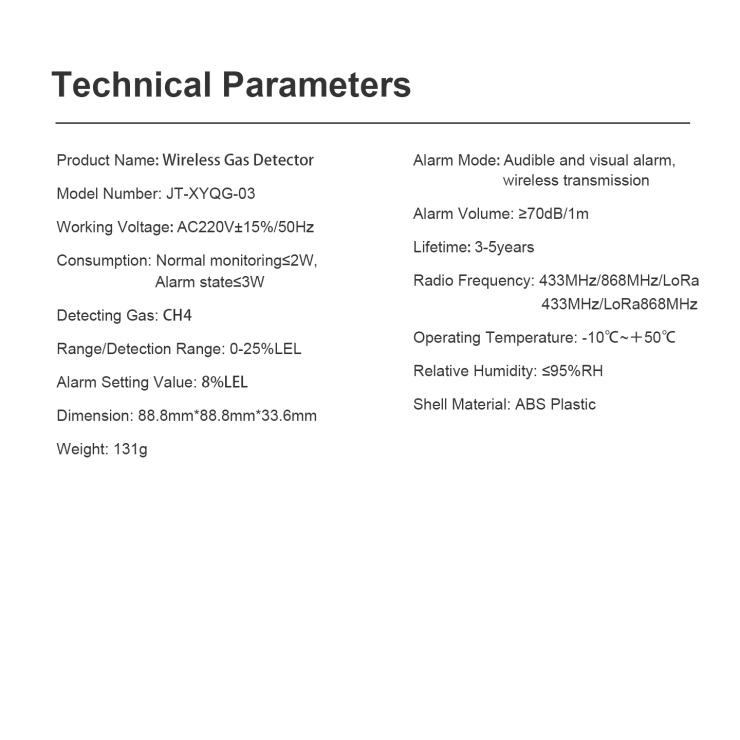

3.Specification

Working Voltage:AC220V±15%/50Hz

Consumption:Normal monitoring≤2W, Alarm state≤3W

Alarm Sound:≥70dB/1m

Detecting Gas: CH4

Range:0-25%LEL

Alarm Setting Value:8%LEL

Alarm Mode:Audible and visual alarm,wireless transmission

Frequencymaterial:433MHz/868MHz/LoRa433MHz/LoRa868MHz

Sensor Life: 3years

Working Environment:-10℃~50℃

WOrkingHUmidity:≤95%RH

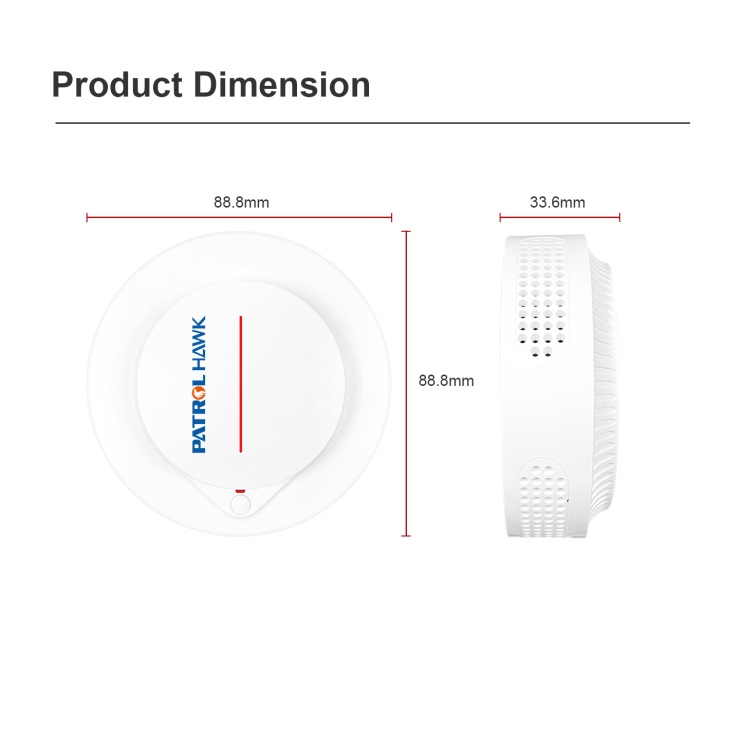

Dimension:88.8mm88.8mm33.6mm

Shell Material:ABS Plastic

Color: White

4.Structural feature

(1).the appearance of the detector is shown in the figure

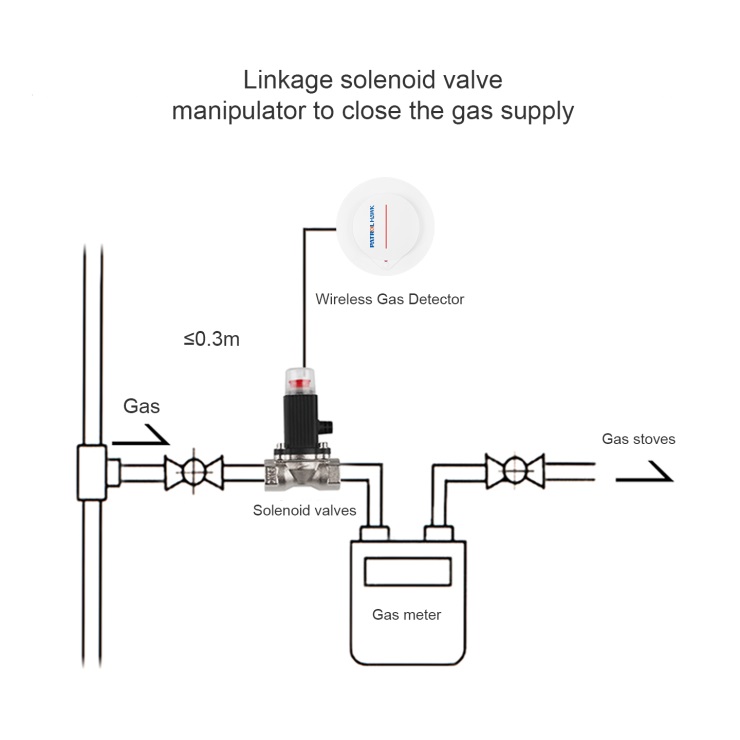

(2).Control output interface:

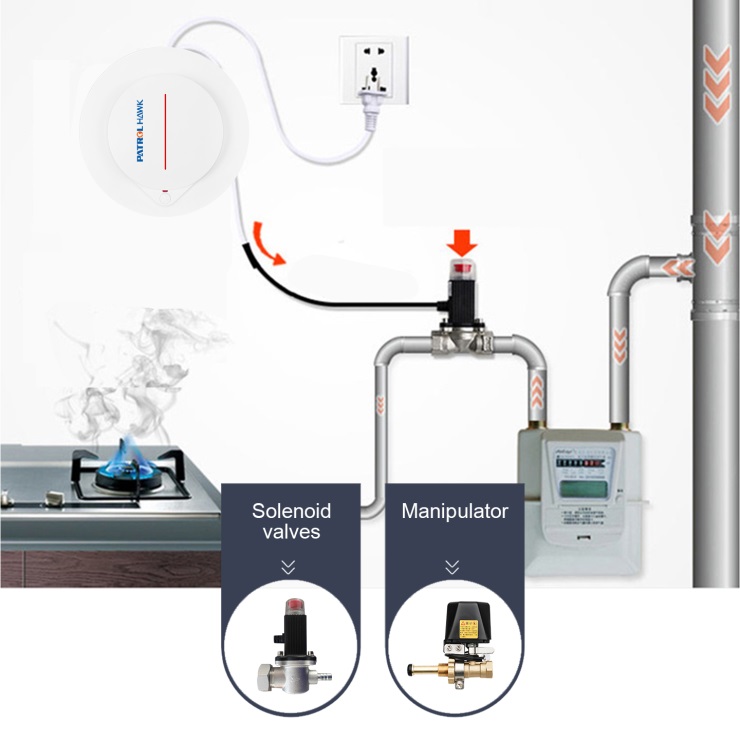

the detector has a control output interface for starting the solenoid valve after the detector alarm

If more details, please feel free to directly contact us.

5.Product Images

Gas Leakage Detector for Home Fire Alarm Lpg Gas Leak Sensor with Solenoid Valve and Manipulator

If more details, please feel free to directly contact us.
