| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | wooden case for export purpose only |
Quick Details
- Cutter Width: 660mm
- Stroke: 680
Specifications

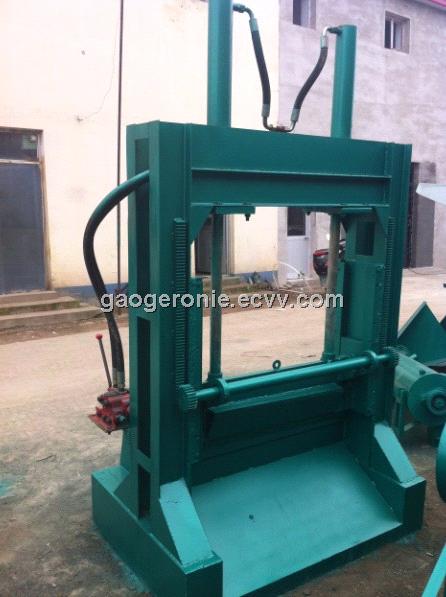

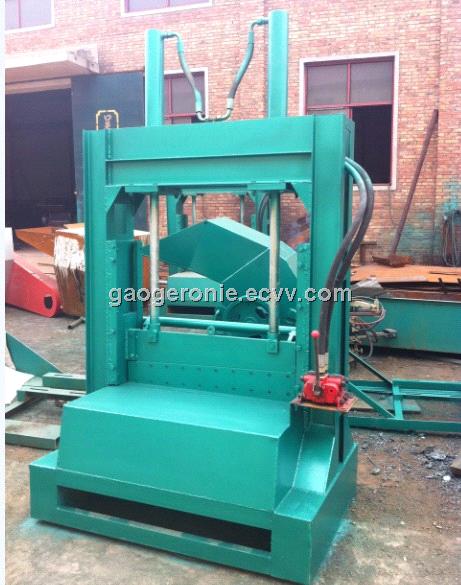

This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system.
|
type
|
XQL-8
|
XQL-16
|
|
Width
|
660
|
1000
|
|
Stroke
|
680
|
680
|
|
Diameter of the piston
|
150
|
200
|
|
Time Taken by the Stroke
|
16∼25
|
10∼16
|
|
Power
|
5.5
|
5.5
|
|
Weight
|
1500
|
2000
|
This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife.
When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.
Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder
The bale cutter is mainly used to cut natural rubber, synthetic rubber, and plastics materials.
