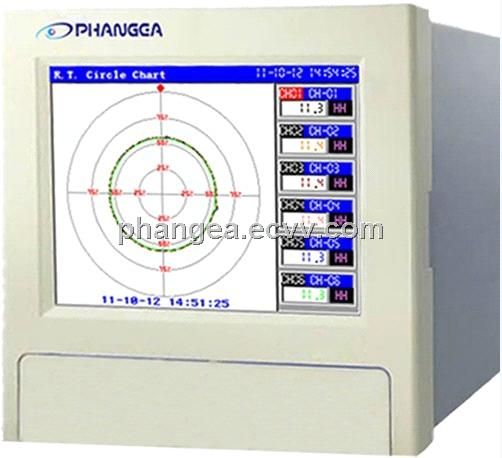

48 Channels True Color Paperless Recorder-PRC8000

Supply Ability:	10,000 Set/Sets per Month
Shipping:	air
Payment Terms:	T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	standard package

Quick Details

Brand Name: phangea
Model Number: PRC8000

Specifications

General

PRC8000 is advanced true color paperless recorder, designed with modern advanced SMT technology and modular structure, to be designed lower power consumed, high accuracy, universal use, isolated, easy operation, to be aimed to monitor, record, analysis temperature, humidity, pressure, vibration, flow and various processes in various industry application.

Features

Accuracy: +-(0.2%FS+1) digit

Size: 288X288X175mm

320x240 TFT true color LCD display

Selectable universal input: T.C, RTD, mA/VDC, mV

Up to 48 input channels, isolated ,selectable

8MB flash memory built in for long term recording

Various display: single &multi channel, trend, bargarph

48 relay alarm, 12 chs 4-20mA, communication, printing, 8 auxiliary power supply outputs configurable flexibly

Up to 4 limits alarm output per channel

Flow totalizer with compensation, math, option

Data transfer by USB driver for PC software analysis

Real time data collection & monitor in PC by RS485 or RS232 MODBUS-RTU for HMI,SCADA,OPCserver etc

General Specification

Accuracy:

±(0.2%FS+1)digit

Power supply:

100-240VAC,50-60Hz

Power consumed:

max.25VA (25W)

Insulation:

Power to ground>1500VAC

Power to housing>1500VAC

Sample rate:

1second/6channels

Number of inputs:

1, 2, 3, 4,5, 6…..48 channels

Inputs signal:

T/C (K, S, B, E, J, N, T,R)

RTD (Pt100,CU50, CU100)

mA DC (4-20mA,0-10 mA)

mV DC (0-5VDC,1-5VDC)

0-20mV,0-60mV,0-100mV,0-500mV

Isolation input:

1000VAC between channels and GND

400VAC between channels

Input Independence:

0-5VDC and 1-5VDC input: 500KΩ

4-20mA input: 250 KΩ

0-10mA input: 500KΩ

Other signal input: 20MΩ

Output:

Relay,SPST/SPDT,up to 48 points

220VAC/3A, 30VDC/3A

4-20mA retransmission,12 point,option

Auxiliary power supply,8 point,option

5VDC, 12VDC, 24VDC for sensors

RS485 or RS232 serial port, option

RS232 printing port, option

USB data transfer port

Display Specification

Display:

10 inch,320x240TFT color LCD

Display rate:

1-3600s,configuration flexibly

Backlight life:

50,000hours

Display scaling:

-20000 to 20000

Screensaver:

0-30,000second,selectable

Engineer Unit:

70 units,customized further

Various screens:

Digital display:1&16channels per screen

Trend display:

8channel per screen

Historical &real time data

Bargraph display, 8channels per screen

Circular chart display, 8 ch. Per screen

Memory Specification

Memory:

Flash memory with power off protection

Memory media:

USB flash drive, FAT16 format

Memory capacity:

8MB built in for long time memory

Record interval:

1to3600 seconds,settable flexibly

Record total time:

45days x record interval/channels no.

Memory method:

Start memory from power on to off

with power off protection

Data save cycle:

Oldest data replaced by newest data

Gradually when capacity is full.

Data format:

Binary format

Function Specification

Alarm function:

Up to 16 alarm outputs

Alarm type:

High,low,higher,lower,

Configurable flexibly per channel

Alarm display:

Alarm type will be displayed in digital

screen when alarm occurred

Alarm setting:

individual alarm output per channel

Common alarm output for all channels

Communication:

RS485/RS232 serial port,

Photoelectrical isolated, MODBUS-RTU

Printing:

RS232 printing port

Printer:

Dot-matrix, ribbon type, optional

Printing data type:

History/real time digital data

History curve data

Flow totalizer:

with Tem. &pressure compensation

Math: Add:

+;Sub:-;Multi: *;Div: /,

Average,Max.,Min.;Line math

Software Specification

O/S:

WINDOWS2000/XP, VISTA

Hard disk capacity:

free capacity of min.30MB required

Software:

Data analysis software/DCS software

Data analysis software

working with USB flash driver

Display digital and curve data

Export data as Excel format

Printing curve data by office printer

DCS software:

working with RS485/RS232 comm.

Read and monitor real time data in PC

Record data as above analysis software

Others Specification

Keyboard:

5 keys for parameters screen setting

Mounting method:

Panel-mounted (vertical panel)

Materials:

ABS for case and bezel

Terminal:

M5 screw terminal

Working T/H:

T:0-50 deg CH: 10%-85 %( No dew),

Protection class:

IP40,indoor use

Size&Weight:

288(W)X288(H)X175(D)mm,6kg
