ASLi (China) Test Equipment Co., Ltd.
China Manufacturer with main products: Temperature Humidity Chamber, Thermal Shock Chamber, Accelerated Aging Chamber, Temperature Humidity Salt Chamber, High Frequency Vibration... |
accelerated weather test chamber
| FOB Price: | 3,233.00 - 3,453.00 USD/Set |
|---|---|
| Supply Ability: | 4 Set/Sets per Month |
| Shipping: | power meeting |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | power meeting |
Quick Details
- Internal Dimension : 650×750
Specifications

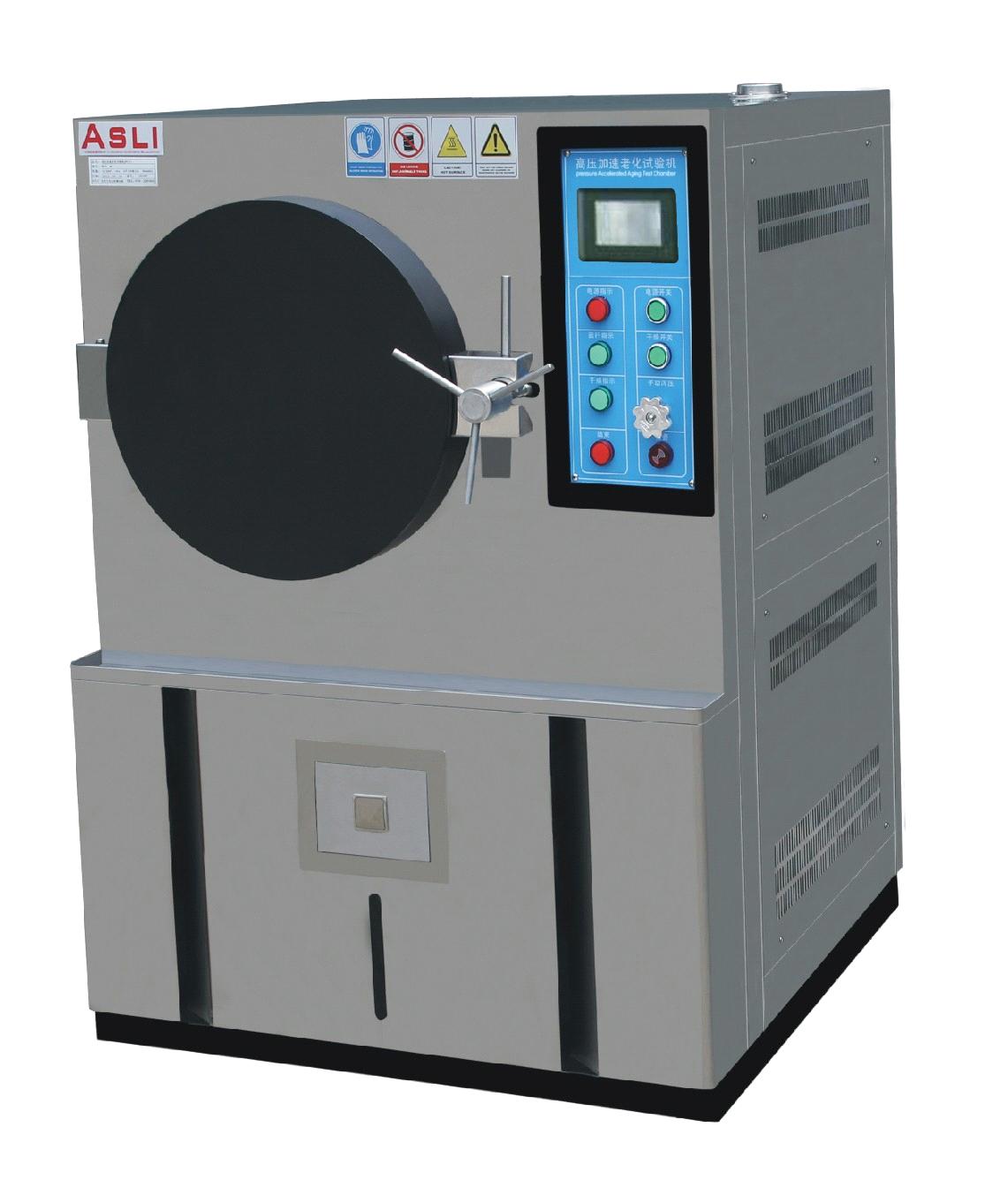

accelerated weather test chamber
accelerated aging chamber/safety device:
1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box’s pressure higher than the machine’s undertake value, it will self-relieve.
3. Double overheat protection device: When inner box’s temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box’s cover is made of aluminum alloy, can protect the worker from scald.
aging tester /technical parameters:
1. Model: PCT-65
2. Internal Dimension Φ×D (mm):650×750
3. External Dimension Φ×D (mm): 1200×1700×1250
4. Temperature Range of Saturated Steam (Operating temperature): (Temperature Range of Saturated Steam:100℃~135℃) , Temperature Range: 120℃,100Kpa/ 133℃ 200 Kpa ;(143℃ is special order)
6. Humidity of Saturated Steam: 100%RH saturation steam humidity
7. Steam Pressure (Absolute Pressure): 101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2; (3.0Kg/cm2 is special standard)
accelerated weather test chamber/application:
Pressure Accelerated Aging Test Chamber (PCT Chamber) is widely applied for the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.
