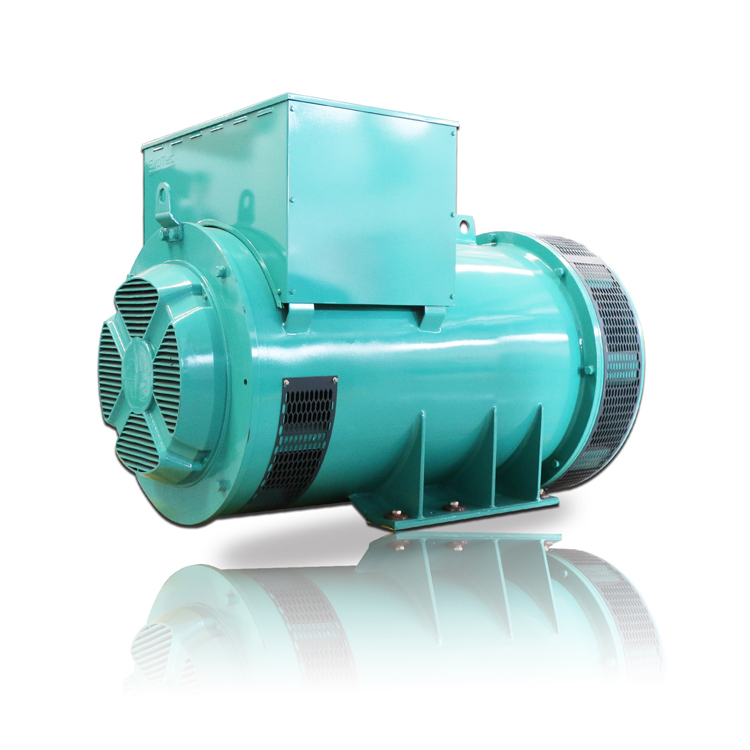

Evotec Power Alternator Ac Generator Synchronous Generator 640KW

Specifications

Evotec Power Generation Co., LTD is a professional manufacturer of A.C synchronous alternator
integrating researching, designing, producing, selling all by ourselves.

We produce three-phase brushless self-excited alternators,
range from 20kva to 3500kva, 50hz/60hz option, rpm 1500-1800, voltage
110V-13800V, class H, IP23, easily coupled with all brands of Diesel or
Gasoline engines and steam or hydraulic turbines, such as world first-class of
Cummins, Perkins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar,
Kubota, Lister Petter, Doosan, etc.

Our alternator are widely used in industry, commercial, real
estate, hospital, hotel, railway, telecommunications, data-centers and mining
etc.

The specific technical features are listed below:
Speed: 1500rpm or 1800rpm
Frequency: 50 Hz or 60Hz
Number of Poles:4
Power: up to 3500KVA
Voltage: 110V-13800V
Insulation: class H
Power Factor:0.8
Voltage Regulation Rate: ±0.5%
Altitude: ≤1000M
Temperature Rise Class: class H
Ambient Temperature: 40℃
Overload: 10% for 1 hour in every 12 hours
Degree of Protection: IP21-IP57 (IP23, IP44, IP54 on request)

Special Features:

1.Higher motor starting capability
2.A reliable long life with superior class H insulation
3.High thyristor load withstand
capability for mobile phone and telecom applications
4.Ease of maintenance with
integrated components and outboard exciter/rotating rectifier
5.Wide range of coupling
discs/adaptor for single bearing configuration, suitable for wide range of
engine brands

Standard:

Evotec Power synchronous generators are designed and
manufactured in compliance with IEC60034-1, IEC60034-22, GB755, BS4999-5000 and
NEMA MG1.22.

Evotec Power machines are CE marking approved.
