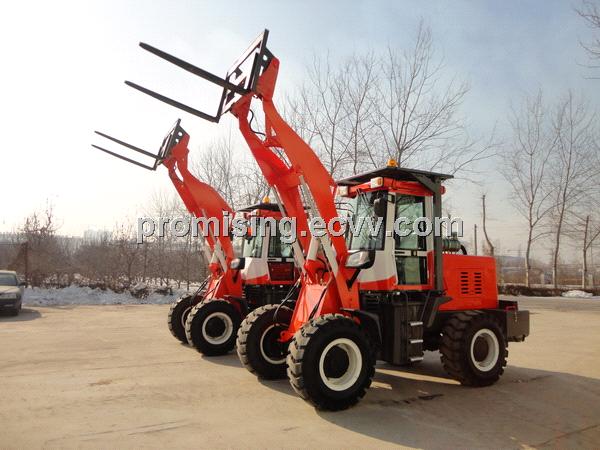

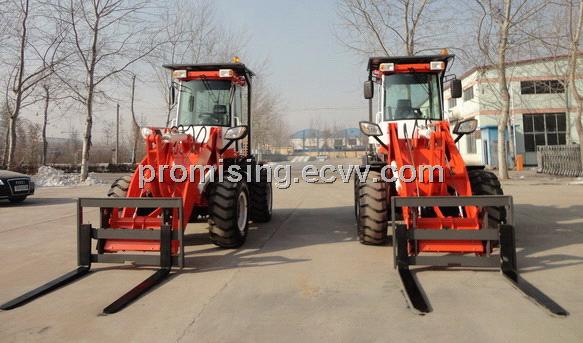

Front End Loader ZL20F with Rops
| Supply Ability: | 200 Set/Sets per Month |
|---|---|
| Shipping: | within 30 days |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude |
Quick Details
- Condition: New
- Brand Name: Dragon Loader
- Model Number: ZL20F
- Type: Front Loader
- Dimension(Long * Breadth * High): 5400*1950*2850 mm
- Rated Load: 2000KG
- Certification: CE, EPA
- Warranty: 1 year
- After-sales Service Provided: No overseas service provided
- rated bucket capacity: 1.0-1.7cbm
- total weight: 6080kg
- engine model: WEICHAI HUAFENG 4NRSG3/DONGFANGHONG YT4B-24/YUCHAI 4105
- engine power: 60kw
- drive mode: 4-wheel Drive
Specifications
Parameter:
1 .Rated Load 2000 kg
2. Total Weight 6080 kg
3. Rated Bucket Capacity 1.0-1.7 CBM
4. Max. Tractive Force 50.8 KN
5. Max. Breakout Force ≥ 60.8 KN
6. Max. Gradeability 38°
7. Max. Dumping Height 3300 mm
8. Max. Dumping Reach 1300 mm
9. Raising Time ≤ 6.0 s
10. Total Cycle Time ≤ 11.5 s
11. Overall Dimensions (L x W x H) 5400*1950*2850 mm
12. Min. Turning Radius 3300 mm
13. Engine Model WEICHAI HUAFENG 4NRSG3/DONGFANGHONG YT4B-24/YUCHAI 4105
14. Engine Type Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
15. Engine Rated Power 60 kW / 60 kW / 62 kW
16. Engine Rated Speed 2400 rpm
17. Engine Min. Fuel Consumption Ratio ≤ 251.6 g/kW•h
18. Transmission System ZL280 Integrated Hydraulic Torque Converter
19. Gear Shift 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
20. Max. Speed 25 km/h
21. Model of Drive Axle ZL20 Hub Reduction Axle (big)
22 . Wheel Tread 1600 mm
23. Wheel Base 2440 mm
24. Drive Mode 4-wheel Drive
25. Hydraulic System Working Pressure 20 Pa
26. Fuel Tank Capacity 93 L
27. Service Brake Foot Peal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
28. Parking Brake Hand Lever Flexible Shaft Controlled Disc Brake
29. Tire Type Specification 16/70-20-16PR
30. Front Tire Pressure 0.40 Mpa
31. Rear Tire Pressure 0.35 Mpa
