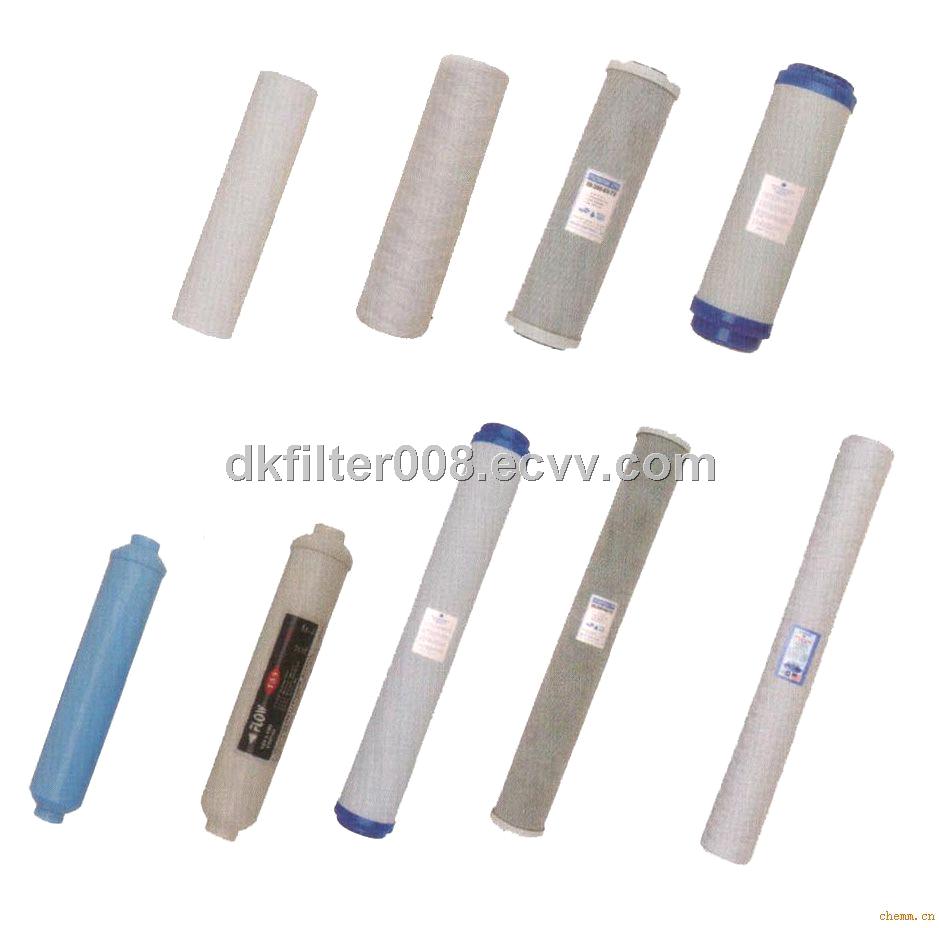

10 inch activated carbon filter

FOB Price:	1.00 - 10.00 USD/Piece
Supply Ability:	5,000 Piece/Pieces per Month
Shipping:	about 5 working days
Payment Terms:	L/C, T/T, Paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	carton box

Quick Details

name: 10 inch activated carbon filter
material: activated carbon
working medium: air and water
length: 10-40 inch
diameter: 63mm
packing: carton box
certificate: ISO9001

Specifications

Introduction:

Activated carbon filter element is a new type deep layer filtrating product . It using active carbon particles to low hot melt sexual binder , continuous extrusion sintering forming . The innermost of filter element is PP skeleton use it to strengthen compression strength of filter element . There are two layer PP fiber felt on the skeleton , can stop the more than 10 microns particles which brought out by the liquid through carbon core . Outer sphere of carbon core have two layer PP superfine fiber felt , can stop the more than 10-20 microns particles which in liquid , so the filter element have double function – filtrating and cleansing . It can effective move organic matter in liquid , particulate , rust , residual chlorine , peculiar smell . etc .

Scope of application

Activated carbon filter element are widely used in pure want , electroplating line , printed circuit board , coating , solvents , detergent , medicine water , oral liquid , pharmaceutical injection , beverage , wine industries liquid filtration , compressed air filtrating , air filtrating .

Mine feature :

set adsorption , filtration , intercept , catalysis in one body .

acid , alkali , salt and different kinds of organic solvent .

high filtrating precision , big flow , small differential pressure , high compression strength , big quantity accept dirt . non-toxic , tasteless , non secondary pollution .

Performance index

Iodine adsorption value : 900 mg/g

Benzene adsorption value : 20-25 %

Methylene blue adsorption values : 13-16 ml/g

Removal rate of COD : 58.25 %

Residual chlorine removal rate : more than 96.83 %

Technical parameters :

Name	Model	Length(inch)	Micron rating (um)	OD (mm)	ID (mm)	Form of port	Working temperature(℃)	Nominal pressure(MPa)	Pressure loss (MPa)
									Initial	Max
Activated carbon filter element	HTLX-*×10	10 20 30 40	1-10	65	30	Insert type , flat sub type	60	0.7	No more than 0.1	0.4
	HTLX-*×20
	HTLX-*×30
	HTLX-*×40
