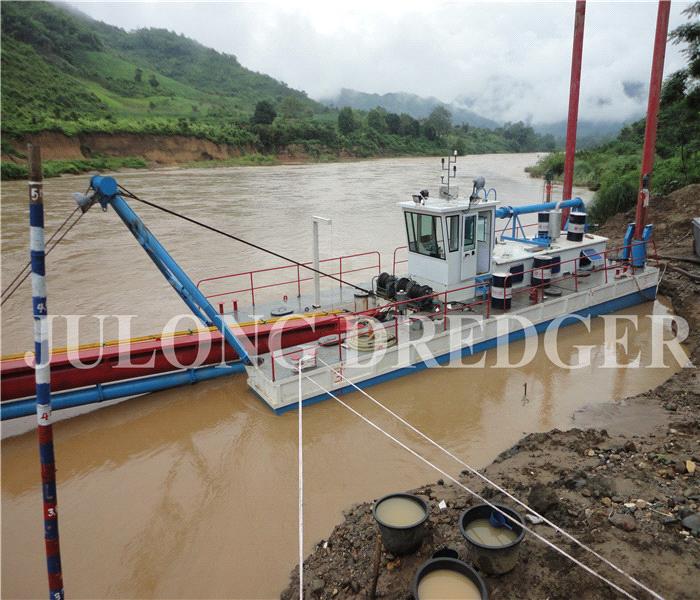

Hydraulic dredging machine in stock

FOB Price:	200,000.00 - 1,200,000.00 USD/Set
Supply Ability:	20 Set/Sets per Year
Shipping:	In containers or in bulk ship
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

QG Inner and Outer Wall Special Shot Blasting

Price:

Min. Order:
Handheld Optical Multi Meter TLD1413

Price:

Min. Order:
Machine Parts

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Sea Shipping Standard

Quick Details

Dredging depth: 3-18 m
Working capacity: 80 m3/h-800m3/h
Colours: As per customers' requirements
Production condition: In stock, ready for shipping
Assembling: Engineers offered

Specifications

Cutter suction dredger features:

1.Simple, rapid assembly and dismantling.
2.Spare parts and floating pipe available.
3.Transportable by road, rail or sea.
4.Reliable hydraulic system.
5.Fresh water engine cooling system.
6.Efficient fuel consumption.
7.One-man operation.

The JLWNC 10/8, 12/10, 14/12, 16/14, 20/18, 22/20 series dredgers can

apply to all kinds of soils, which are widely used in port, waterway dredging

and reclamation works. This series of dredgers, absorbing advanced technology

of Dutch and American related products,have advantages of totally hydraulic

control system, simple operation, easy maintenance, rational design, novel

layout and strong power. The maximum dredging depth can reach 25m and

discharge distance 3000m.

Working environment:

1.The range of adaptation to the environment: the temperature no higher than 40 degrees Celsius in summer and winter temperatures not lower than -10 degrees Celsius, the air humidity is no more than 30%, wind power does not exceed 7 in rivers.

2. River ore requirements: sand ratio is no less than 60% (clay content is no more than 10% scree content is no more than 15% gravel content is no more than 15% Wind Stone is no higher than 10%.)

3. The ship diesel engine should apply to the CIS countries grade use of fuel, oil.

4. The ship is equipped with night-time lighting system suitable for all weather conditions and working uninterrupted.

5 .2-3 person operate every time.

6.The entire dredger is equipped with safety barriers.

Parameters:

Types	JLWN 10/8	JLWN 12/10	JLWN 14/12	JLWN 16/14	JLWN 20/18	JLWN 22/20
Output(m³/h)	200	250	300	350	450	500
Dredging depth(m)	9	10	14	14	15	15
Full Length(m)	21	25	35	37	40	44
Hull Length(m)	14	18	25	26	30	35
Hull Height(m)	1.6	1.6	1.8	1.8	2.2	2.2
Hull Width(m)	4.6	5.2	6.0	6.0	7.5	8.0
Main Engine(KW)	300	450	720	1000	1200	1200
Auxiliary Engine(KW)	24	24	24	30	380	380
Cutter Diameter (m)	1.0	1.3	1.5	1.5	1.65	1.8
Suction/Discharge pipe(mm)	250/200	300/250	350/300	400/350	550/450	600/500
Rate of Water Flow(m³/h)	800	1200	2000	2800	3500	3500
Operation system	PLC System, Mechanical Operation system	PLC System Hydraulic Operation system	PLC System Hydraulic Operation system	PLC System Hydraulic Operation system	PLC System Hydraulic Operation system	PLC System Hydraulic Operation system

The parameters are just for reference. Customized specification is available.
