Andon International Group
China Manufacturer with main products: Anodizing Machinery, Anodizing Equipments, Anodizing Production Line, Anodizing Technolody, Anodizing for Aluminium Profiles, Aluminium... |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | standard export packing |
Quick Details

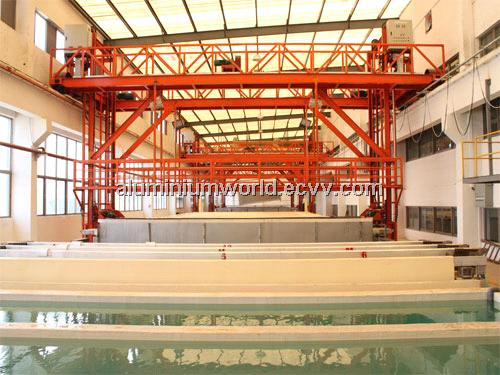

- anodizing line : aluminium anodizing line
Specifications
Capacity: (150-1000) tons per month
Work time: 16-20 Hours per day
Anodized thickness film: 10-18 microns
Length of profiles: 6--6.5 M
Material: Aluminum profile 6063-T5,6360
Thickness of aluminum profile: 0.8-5mm
Surface finish requirement: Silver %, Golden %, Champagne% Dark bronze %,black %
Power supply voltage: 220 or 380V, 50HZ
Water supply: Tap water
Details for the parameter
|
Seq.
|
Item
|
Equipment
|
Specification
|
|
1
|
Tank Anti-corrosion
|
Alkali Etching Tank for Remove Film
|
Steel
|
|
Alkali Degreasing Tank
|
Stainless steel SUS304
|
||
|
Rinsing Tank
|
PVC
|
||
|
Hot Water Tank
|
Stainless steel SUS304
|
||
|
Neutralization Tank
|
PVC
|
||
|
Anodizing Tank
|
PVC
|
||
|
Anodizing Side Tank
|
PVC
|
||
|
Electrolytic Coloring Tank
|
PVC
|
||
|
Golden dyeing Tank
|
Stainless steel SUS 304
|
||
|
Hot Sealing Tank
|
Stainless steel SUS 304
|
||
|
Sewage Draining Passage
|
PVC
|
||
|
2
|
Dewaxing Tank
|
covering for stainness steel SUS304,Heating System,Drainage valve and pipe
|
|
|
3
|
Alkali Etching Tank for Sanding
|
covering for steel,S-shaped, steam heating ,Exhausting Pipe aside the tank, Air treatment
|
|
|
4
|
Anodizing system
|
Rectifier
|
15KA,22V,Air cool, Complete with over heat,over current,phase shortage and short circuit protection
|
|
Aluminum Bus Bar processing fee
|
200*10mm
|
||
|
Soft Copper Connector
|
Size:500*47*10mm,T2,Copper content≥99.5%,electric conductivity≥98%
|
||
|
Aluminum Cathode Bar processing fee
|
9000*190*80mm
|
||
|
Aluminum Sheet Cathode processing fee
|
2500*180*80mm
|
||
|
Antifoaming Bag
|
2500*180mm
|
||
|
Copper Connector
|
Size:210*230mm,insulation,acid-resisting,rubber sheet, Foundation:Stainness Steel
|
||
|
Others
|
|||
|
5
|
Anodizing cooling system
|
Heat Exchanger
|
SUS316L,50square
|
|
Chemical Pump
|
4″,80 cube/hour,11KW,Head:20m
|
||
|
PVC Pipe and Valve Fittings
|
|||
|
SUS316 Fastener
|
|||
|
Others
|
|||
|
6
|
Electrolytic Coloring System
|
AC+DC Electrolytic coloring
|
8000A,24V,soft startup,Over-current, over voltage, voltage deficiency, phase deficiency, overheat, short circuit. Touch screen control.
|
|
Stainless Steel Cathode Sheet
|
316L
|
||
|
Aluminum Bus Bar processing fee
|
200*10mm
|
||
|
Soft Copper Connector
|
550*200*20mm
|
||
|
Copper Connector
|
|||
|
Aluminum/Cathode Bar processing fee
|
9000*190*80mm
|
||
|
Others
|
|||
|
7
|
Electrolytic coloring cooling system
|
Heat Exchange
|
SUS316L,25 square
|
|
Chemical Pump
|
3″,5.5KW,H=20m,50cube/hour
|
||
|
PVC Pipe and Valve Fittings
|
|||
|
SUS316 fastener
|
|||
|
PP Filter
|
OD:315×500mm
|
||
|
PP Agitator Tank
|
1040mm,H1450mm
|
||
|
Others
|
|||
|
8
|
Cooling water system
|
Industrial Chiller
|
Carrier, 90×104 Kcal
|
|
PVC Pipe and Valve Fittings
|
|||
|
Water Pump
|
18KW,180m3/h, H=20m
|
||
|
Cooling Tower
|
300 Ton,4KW,OD:4310mm, Hight:3780mm
|
||
|
Others
|
|||
|
9
|
Control System for Sealing Tank
|
PP Filter
|
OD:315×500mm
|
|
Stainless Steel Pump
|
15cube/hour
|
||
|
Pipe & Valve
|
|||
|
Auto Temperature Control
|
|||
|
Stainless Steel Heating Pipe
|
SUS316,S-shaped
|
||
|
PP Agitator Tank
|
1040mm,H1450mm
|
||
|
10
|
Water Inlet for Tank
|
Water Inlet for Tank
|
Main pipe :90mm, Branch Pipe:40mm
|
|
11
|
Drain Contamination for Tank
|
Drainage Contamination for Tank
|
|
|
12
|
Loading & Unloading System
|
Transfer Rack
|
Type:Horizontal,Chain driven,automatic.
Speed:0.15m/min Connecting speed:8m/min |
|
Holding Rack for Loading & Unloading
|
|||
|
Holding Rack
|
Type: Horizontal,Motorized,Chain driven,
Manual operation,1.5kw(with breaking and emergency stop function). Load capacity:800kg Speed:8m/min(adjustable) |
||
|
13
|
Crane and bar
|
1+1 Anodizing Crane
|
Type: Horizontal,Motorized,Chain driven,Manual operation,1.5kw(with breaking and emergency stop function).
Load capacity:800kg Speed:8m/min(adjustable) Range:1800mm Control:Operating switch(limit switch) End point sensor(working zone) |
|
Track
|
|||
|
Sliding Contact Line
|
|||
|
Aluminum Anodization Hollow Bar processing fee
|
|||
|
Cu-AL
|
150*100*20mm
|
||
|
Aluminum Jig processing fee
|
|||
|
14
|
NUT/BOLT SET
|
SUS316
|
|
|
15
|
Rinsing tank air stirring
|
Roots Blower
|
BR50-3KW Q=2m/S P=30KPa
|
|
Control System
|
|||
|
PVC Pipe and Valve Fittings
|
|||
