SZ Sincerity Technology Co., Ltd.
China Manufacturer with main products: Film Capacitor, CBB21, X2, Cl21, X1, CBB13, CBB81, CBB20 |

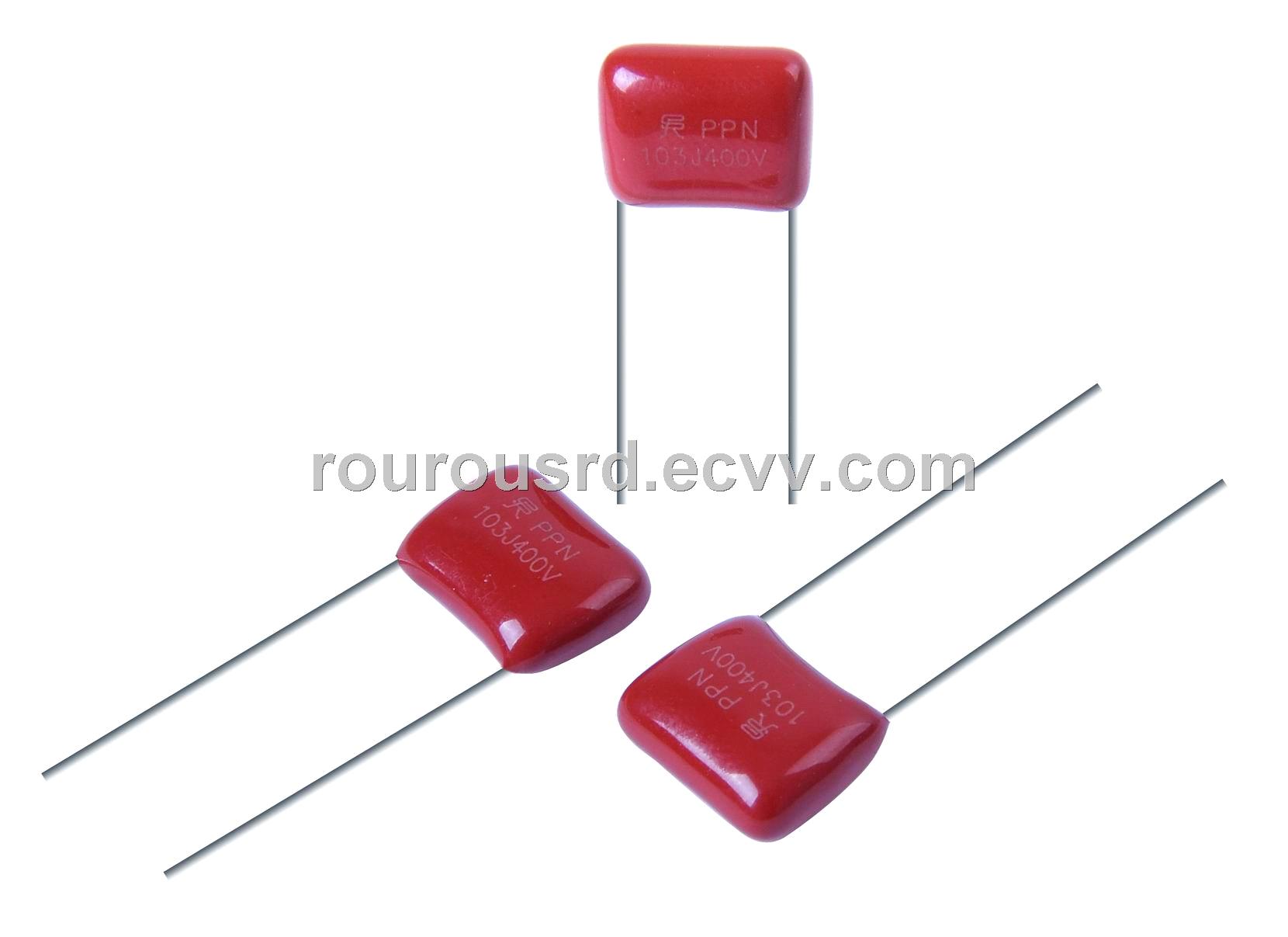

Film Capacitors-CBB13
| Shipping: | 7-10 working days |
|---|---|
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Shipping Package |
Quick Details
- Brand Name: SRD
- Model Number: CBB13
- Type: Polypropylene Film Capacitor
- Application: Lighting
- Package Type: Surface Mount
- Capacitance: 0.001~ 1.0μF
- Rated Voltage: 100V, 200/250V, 400V, 630V, 1000V
- Operating Temperature: -40-+85℃
- Color: Red
Specifications
Film Capacitors-CBB13
Reference Standard
GB10188-88 (IEC384-13)
GB10188-88 (IEC384-13)
Rated Votage: 100V, 200/250V, 400V, 630V, 1000V
Capacitor Range: 0.001~ 1.0µF
Capacitor Tolance: + 5%(J), + 10%(K) , + 20%(M)
Voltage Proof: 2.0 UR (5s)
Dissipation Factor: < 0.08 % (20centigrade, 10kHz)
Insulation Resistance: >30000 MOHM(CR<0.1µF)
>3000 S (CR>0.1µF)
Structures
Material: Polypropylene film
Electrode: Aluminum Foil
Enveloped with flame-retardant epoxide resin (UL94 V-0)
Pin: With copper-clad steel leads or Copper wire
Using area
High Frequency,DC,and Impulsion High Current conditions. e.g. Lamps, Lanterns and power supplier etc.
Features:
Small Size,Very low loss at high frequency,the low temperature in changing with high impact.
Structures
Material: Polypropylene film
Electrode: Aluminum Foil
Enveloped with flame-retardant epoxide resin (UL94 V-0)
Pin: With copper-clad steel leads or Copper wire
Using area
High Frequency,DC,and Impulsion High Current conditions. e.g. Lamps, Lanterns and power supplier etc.
Features:
Small Size,Very low loss at high frequency,the low temperature in changing with high impact.
