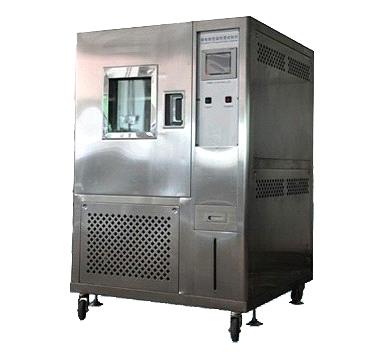

temperature humidity test chamber

temperature humidity test chamber

humidity test chamber/Application:
Programmable temperature and humidity test chamber is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

temperature humidity tester/Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips . Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5.French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6.  LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 2 hours after get the call.
Service:OEM service,Design service,Buyer lable service.

temperature test chamber/Technical Parameters:
1. Cooling System: Wind cooling or water cooling/single segment compressor-40℃, double segment compressor -70℃
2. Protection Devices: Protection Devices: Fuse free switch, overloading protection switch  for compressor, high and low voltage coolant protection switch, over humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
3. Optional Accessories: Inner door with operation hole, Recorder, Water Purifier, Dehumidifier
4. Compressor:  French Tecumseh Brand, Germany Bizer Brand
5. Power: AC220V 1∮ 3 lines, 50/60HZ ,  AC380V 3∮ 5 lines , 50/60HZ
6. Approx. Weight (Kg):450
7. Inner and Outer Material: Internal material is SUS 304# stainless steel, external material is stainless steel or SEE cold-rolled steel with paint coated.
8. Insulation Material: Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
