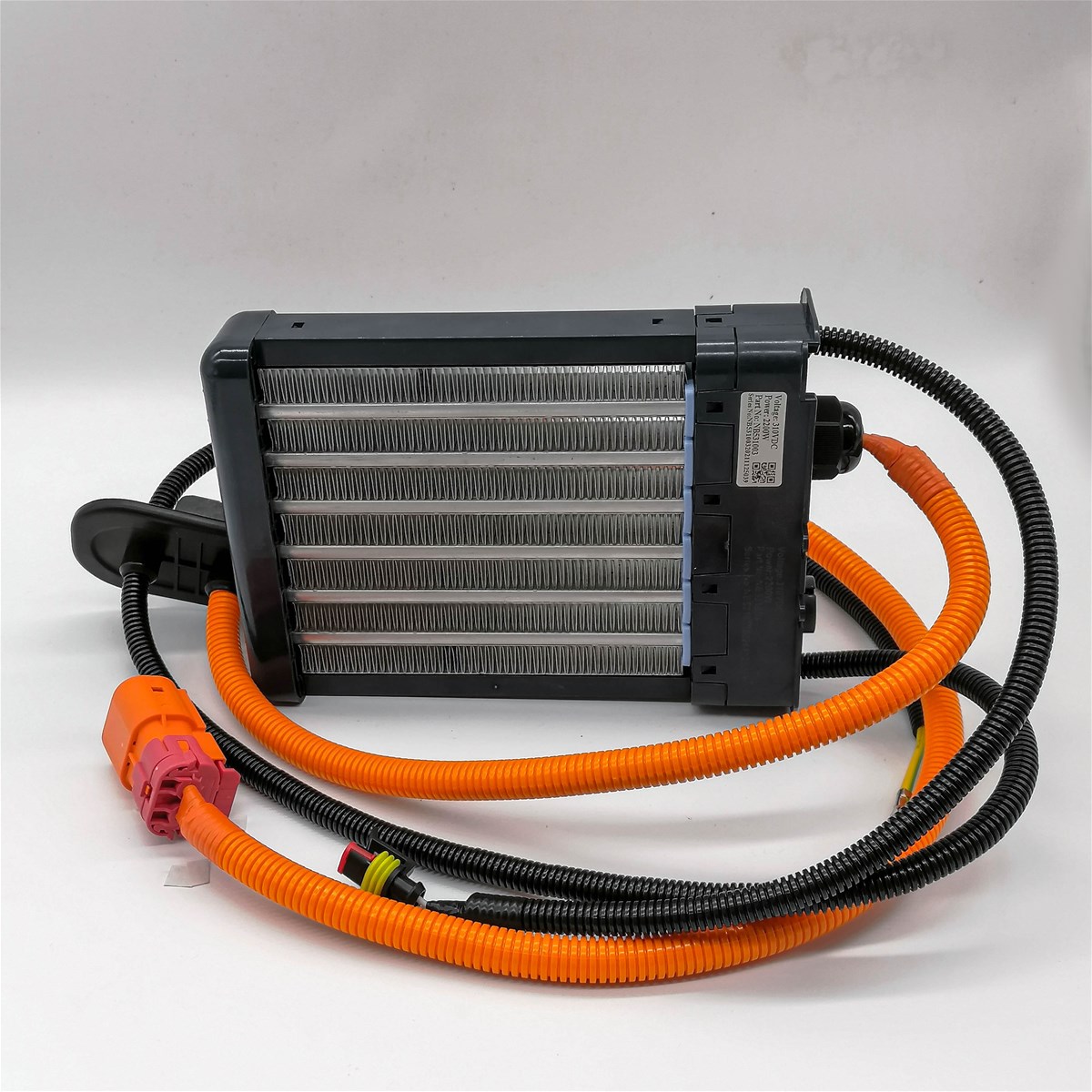

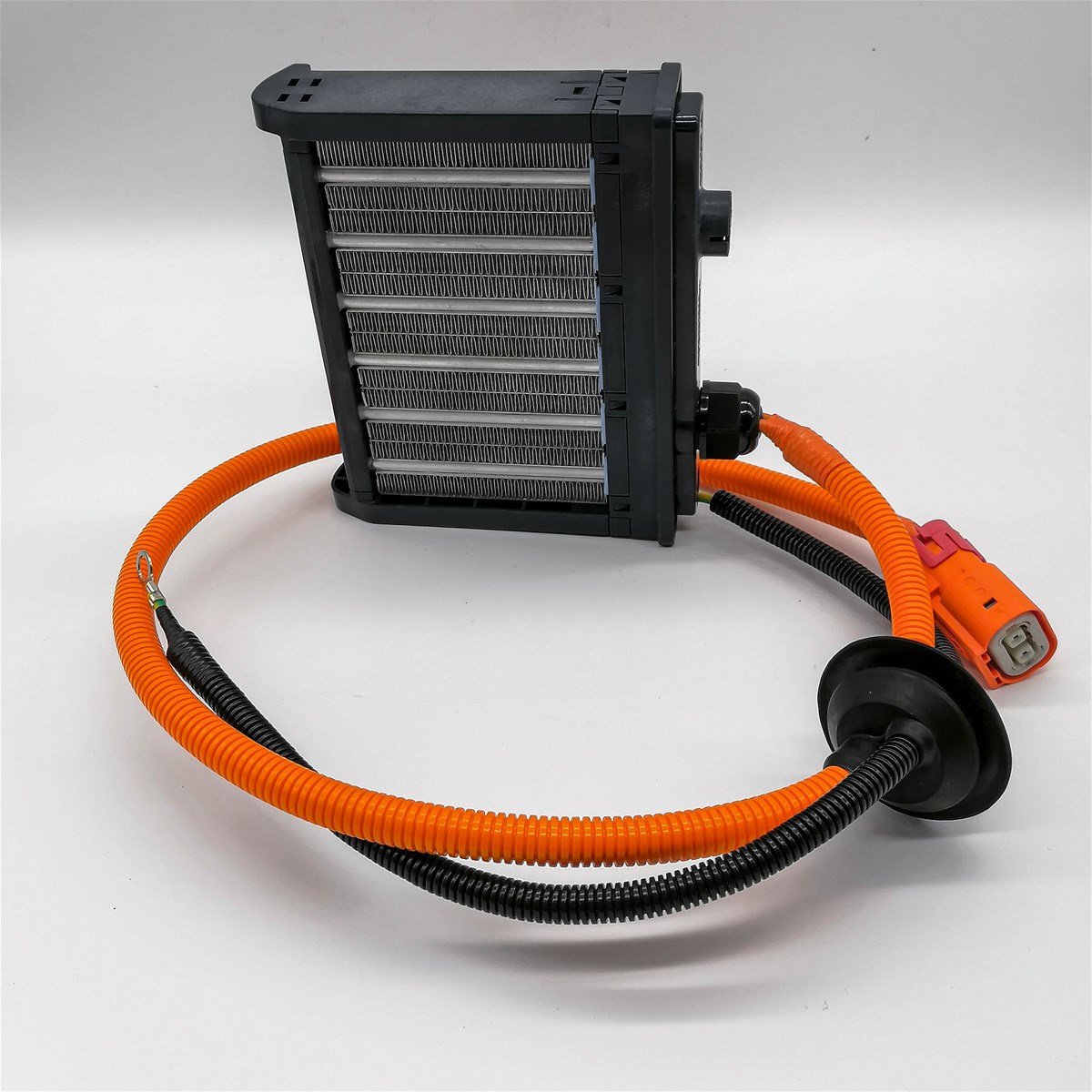

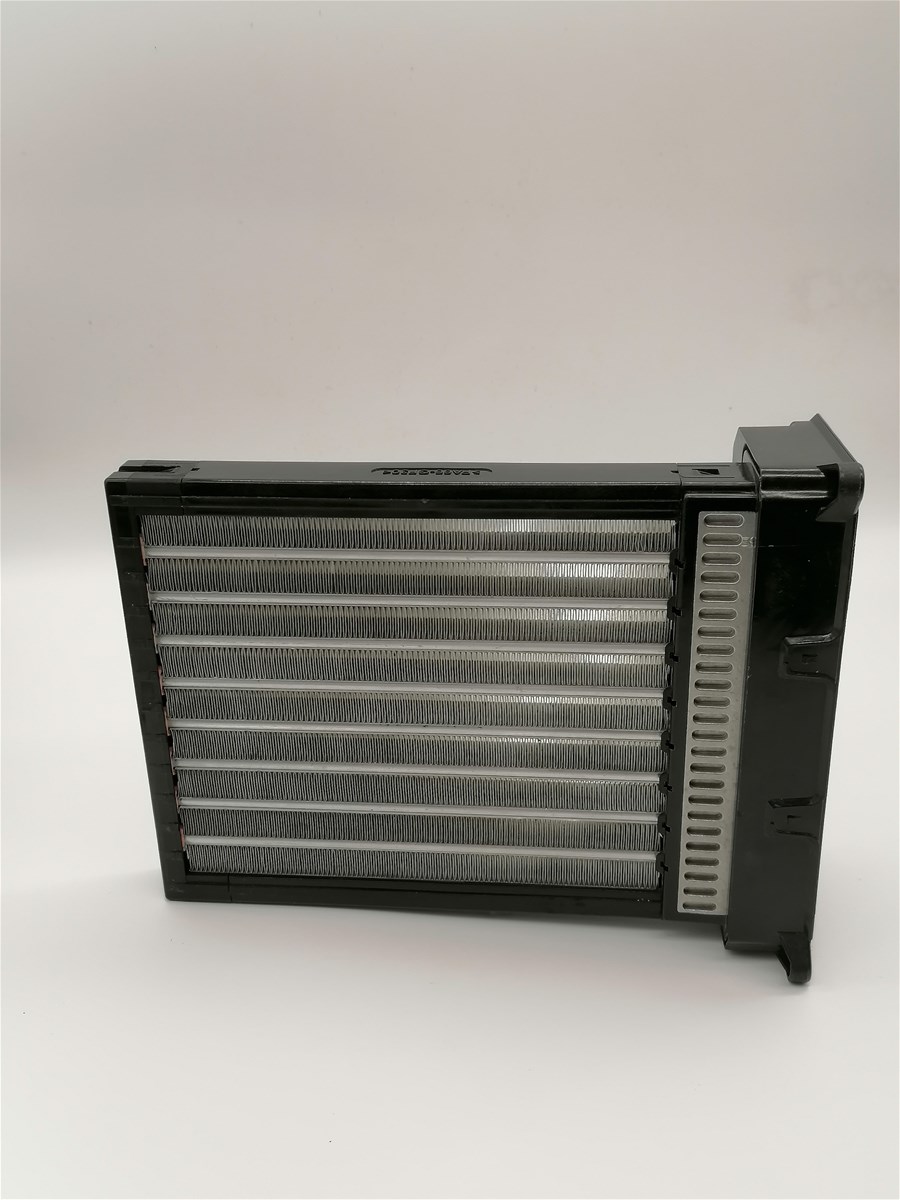

PTC Heater for Electric Vehicle, Car Heater, Heating Element, Defrosting Or Air Heating, Electric Vehicle
| FOB Price: | 10.00 - 50.00 USD/Piece |
|---|---|
| Supply Ability: | 20,000 Piece(s) per Month |
| Shipping: | airport or shipping by sea |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | carton |
Quick Details
- Condition: New
- Brand Name: pake
- Made In: China
- Gear Box: Automatic
- Fuel: Electric
- Condition: electrify
Specifications
Product overview
PTC heater is most widely applied to electric vehicle today for defrosting and air heating.Compared to traditional heater, it is safer and more reliable because the self-regulating PTC element will not be damaged without air flow. Also, power of thermostat will automatically be cut off when it is overheating. It is an excellent air pre-heater for vehicles to start under-40℃ since it can start quickly under low-temperature condition.
Technical data
Part No. |
Model |
Size (mm) |
Power (kw) |
F3194 |
MZFR-J-1.3KW-310VDC |
149.718342 |
1.3 |
F3179 |
MZFR-J-2.2KW-310VDC |
20915064.4 |
2.2 |
F2866 |
MZFR-J-2.5KW-360VDC |
26714860 |
2.5 |
F2725 |
MZFR-J-3.5KW-339VDC |
36215731 |
3.5 |
F3192 |
MZFR-J-5.5KW-360VDC |
195159.318.2 |
5.5 |
Product feature
(1) Safe and reliable
(2) Thermostat willAutomaticallyCut off the power if the unusual condition leads to overheating.
(3) MultipleInsulation, electric strength is up to 2500VDC
(4) Fast heating. As shown in the Figure 1, there is a maximum current to quickly start.

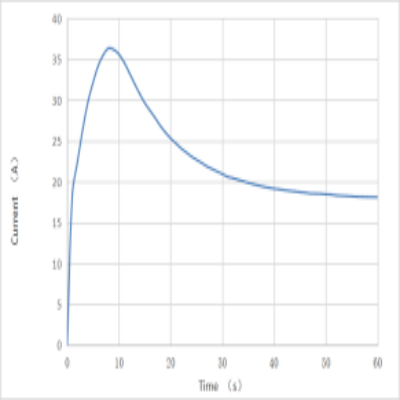

Figure 1. Current and time for PTC heater
(5) Excellent low temperature start performance, canBe quickly turned on heating under -40℃
Figure 2 Power and ambient temperature of PTC heater
