>Products Catalog > spot welding machine > suspension spot welding machine Macchina di saldatura a punti

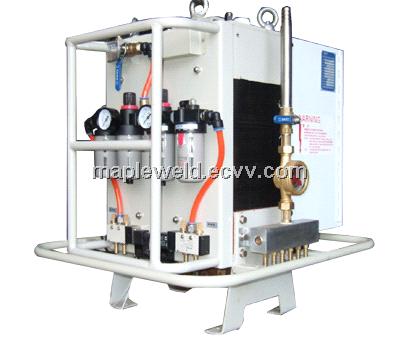

suspension spot welding machine Macchina di saldatura a punti
| FOB Price: | 5,000.00 - 6,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Year |
| Shipping: | EXW,FOB,CIF,C&F,CIP |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, Southeast Asia, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Sichuan in China |
| Packaging Details: | CRATE |
Specifications
One sets of welding machine including two spring balancers for cables ,two spring balancers
for welding gun & cable,one transformer,one controller,one/two welding gun,one/two sets of kickless cable,one/two sets of sub-cable,one/two sets of air & water hose etc
380V,50HZ,THREE PHASE
380V,50HZ,SINGLE PHASE
220V,60HZ,SINGLE PHASE
| Type | DN3-100 | DN3-125 | DN3-160 | DN3-200 | |||
| Rated capacity | KVA | 100 | 125 | 160 | 200 | ||
| Phase | Single | ||||||
| Rated input voltage | V | 380 | 380 | 380 | 380 | ||
| Rated duty cycle | % | 50 | 50 | 50 | 50 | ||
| Power frequency | V | 50 | 50 | 50 | 50 | ||
| Insulation class | grade | F | |||||
| Secondary no-loaded voltage | V | 19 | 20 | 23.75 | 29 | ||
| Max load current (A) | A | 10000 | 12000 | 16000 | 18000 | ||
| M.S. Sheet thickless | mm | 1.2+1.2 | 1.5+1.5 | 2+2 | 2.5+2.5 | ||
| Max. Sheet thickless | mm | 1.5+1.5 | 2.0+2.0 | 2.5+2.5 | 3+3 | ||
| Compressed air supply | Mpa | 0.5 | 0.5 | 0.5 | 0.5 | ||
| cooling water consumpion | L/min | 16 | 16 | 16 | 16 | ||
| Weight | Kg | 140 | 145 | 175 | 185 | ||
