VEP VACUUM CIRCUIT BREAKER
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: VEP
Specifications

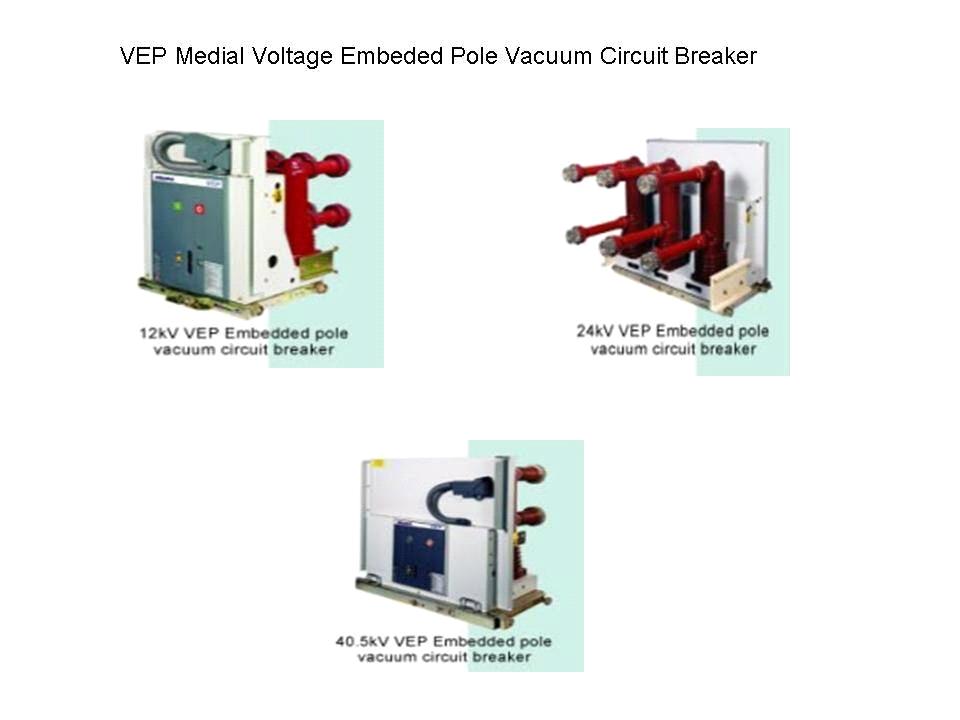

VEP Medial Voltage Embeded Pole Vacuum Circuit Breaker
VEP series MV embedded pole vacuum circuit breaker is a next generation full range medium breaker jointely developed by German and Chinese technical experts.
VEP is the first completed series of medium voltage embedded pole vacuum circuit breaker in the world which covers rated voltage from 7.2kv to 40.5kv rated current from 630A to 4000A and rated short circuit breaking current up to 50Ka.
VEP series MV embedded pole vacuum circuit breaker is fullly type tested in accordance with IEC standard GB and DL standards of China.
VEP series MV embedded pole vacuum circuit breaker is breaker with high environmental resistance, all the adverse effects to the main circuit caused by extermal mechanical impact, humidity, dust and vermin are thoroughly eliminated.
The partented technology of LSR (Liquid Silicon Rubber) buffering layer between the ceramic housing of the vacuum interrupter and epoxy resin is essential to the reliability of VEP in any circumstance.
Instead of SF6 which is assayed as a green house gas, the solid insulation of epoxy resin is used for VEP series MV embedded pole vacuum circuit breaker to strengthen the extermal insulation, so it is an environment friendly breaker.
The low temperature rise of VEP series MV embedded pole vacuum circuit breaker is ensured by the most advanced interrupter with extremely low resistance and high breaking capability.
VEP series MV embedded pole vacuum circuit breaker is equipped with optimized, modularized and standardized spring mechanism, all the maintenance to mechanism can be realized easily on site so it a user friendly breaker.
