Home >Products Catalog > cylinder 4 axis wood carving cnc machine 1515

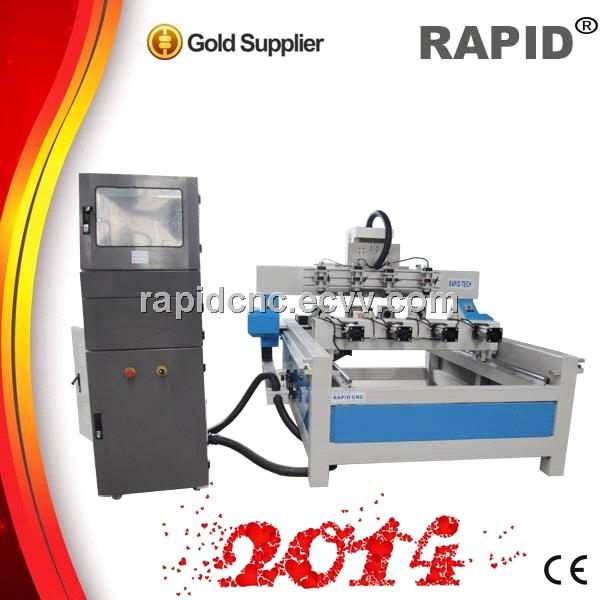

cylinder 4 axis wood carving cnc machine 1515

FOB Price:	11,000.00 - 15,000.00 USD/Set
Supply Ability:	40 Set/Sets per Quarter
Shipping:	Qingdao
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

engraving machine TN-1325

Price:

Min. Order:1 Piece
CO2 Desktop laser engraving machine KR400

Price:500.00-1,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	standard plywood packing

Quick Details

Condition: New
Engraving Area: 150*1500mm
Engraving Speed: 25m~30m/min
CNC or Not: Yes
Cooling Mode: Air Cooling
Brand Name: Rapid
Model Number: 1515
Dimension(L*W*H): 150*1500mm*300mm
Certification: CE,ISO,Other
After-sales Service Provided: No overseas service provided
Transmission: X/Y axis with rack,Z axis with ball screw
Guide rail: Taiwan HIWIN square rail
Spindle power: 1.5KW*4 Air-cooling
Max spindle power: 18000RPM
Max speed: 25m~30m/min
Max working speed: 15m~20m/min
Working precision: 0.05mm
Reposition precision: 0.03mm
Driver motor: Stepper motor
Voltage: 380V/50HZ or 220V/50HZ

Specifications

cylinder 4 axis wood carving cnc machine 1515

Applicable industry:

The machine be used for making Stair railing and 3D cylinder mold etc.

Technical parameter:

Model	Rapid-1515
Working size	150*1500mm
Max feeding height	300mm
Transmission	X/Y axis with rack,Z axis with ball screw
Guide rail	Taiwan HIWIN square rail
Spindle power	1.5KW*4 Air-cooling
Max spindle power	18000RPM
Max speed	25m~30m/min
Max working speed	15m~20m/min
Working precision	±0.05mm
Reposition precision	±0.03mm
Driver motor	Stepper motor
Voltage	380V/50HZ or 220V/50HZ
Operation system	Ncstudio system/DSP system
Design software	Type3/Artcam/CAD/CAM
Command code	G cord.u00.mmg*plt, HPGL
Surrounding for software	Windows98/2000/xp
Rotary system	Diameter:150mm,length:1500mm

Feature:

l The machine adopt to 4 axis system,and can meet to the different carving process.

l Machine body with steel structure, ensuring high stability.

l Easy to operate,high efficiency.

l Humanized control system show advantages as: continue engraving when breakpoint, adjusting processing time.etc.

l The reducer is made by famous manufacturer in Taiwan.The feature is small size,bearing big torque,high driving efficiency reducing wide range,

high precision,high torque,low backlash and very quite.

Questions and answer:

Q1: How to get the best price ?

A: please tell the what's material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What's the MAX size of these material ?( length ? Width ? Thickness ?)

And more information from you.

Then I will recommand the most suitable modle and the best price for you.

Q2: how about the after-sale service?

A: 24'H online service.

Provide the operation manual and video,and so that you learn that more easy.

Unconditional replacement accessories according to warranty card.

Order process:

step1: Make proforma invoice

step2: Pay the advance payment

step3: Produce the machine

step4: Send the videos about machine to client

step5: The client pay the rest payment

step6: Delivery the machine through shipping company,and send the bill lading to client.

Our advantage

2 High quality

2 Rich experience

2 Own factory & can be customized

2 Cooperate with many famous brand

2 Good after-sales service
