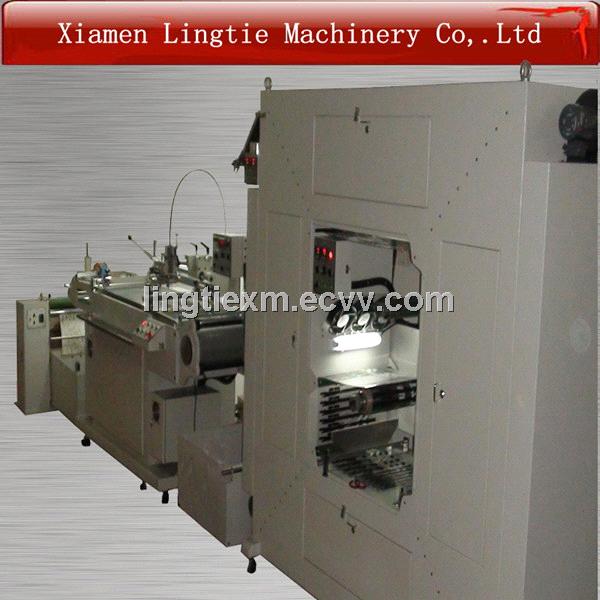

auto roll to roll heat transfer films screen printing machine customized
| FOB Price: | 20,000.00 - 30,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set/Sets per Month |
| Shipping: | 25 days after receipt your order printing machine |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | Wooden package for printing machine |
Quick Details
- Condition: New
- Plate Type: Screen Printer
- Brand Name: Lingtie
- Model Number: LT-350CNC
- Automatic Grade: Automatic
- Color & Page: Multicolor
- Voltage: 220V
- Gross Power: 2.5KW
- Weight: 900KG
- Certification: ISO 9001
- Machine Configuration : Optional Configurations
Specifications
|
Model No.
|
LT-350 CNC
|
Printing material thickness |
0.02-0.5 mm
|
|
Screen Frame Area
|
630x600mm
|
Squeegee angle
|
0-30°
|
|
Max. Print Area
|
350x350mm
|
Frame regulating variable
|
60 mm
|
|
Max. Paper Width
|
360mm
|
Bench height
|
930 mm
|
|
Printing Speed
|
20-70 t/min
|
Height of screen frame
|
|
|
Power
|
Main Drive Motor
|
0.37kw
|
|
|
Pulling Drive Motor
|
0.75 kw
|
||
|
Air Suction Motor
|
0.37kw
|
||
|
UV Drier UV
|
3.6x1kw (optional)
|
||
|
Machine Weight
|
Net Weight
|
700kg
|
|
|
Gross Weight
|
900kg
|
||
|
Power
|
220V 2.5KW (single-phase power) |
||
|
Remark: can be designed against your need |
|||
|
Machine Size
|
L2350 x W890 x H1580 mm
|
||
|
Packing size
|
L3000 x W1100 x H1650 mm
|
||
