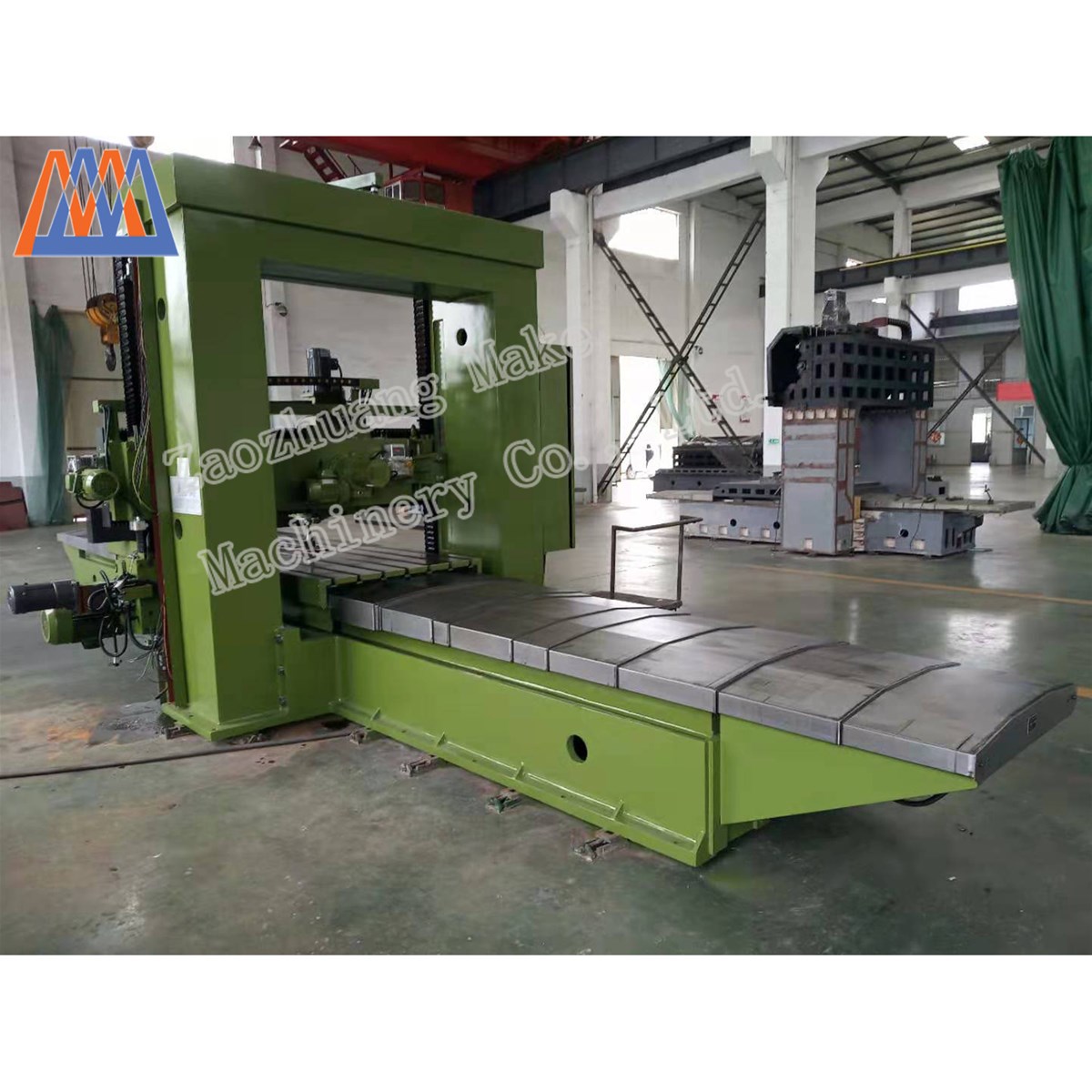

Heavy Type Gantry Milling Machine Plano Miller

Payment Terms: L/C, T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 YEAR
  • CNC or Not: CNC
  • Brand Name: ZZMM
  • Condition: New
  • Model Number: X2025-60

Specifications

 Core technique originates from Taiwan, scientific & logical design of the structure and adoption of the advanced function unit can realize strong cutting function, high working efficiency, safe & reliable movement and long working life.
1. Heat-treatment techniques & mechanical lubrication are adopted on the guide-way of the?Machine body to reduce friction & prolong working life of the machine.
2. Step-less table speed change.
3. Rectangular guide-ways, rigid machine bed/beam/column ensure stability of the machine in strong cutting.
4. Milling head can move vertically/horizontally or swivel ±30°.
It is used in machining, molding and some other industries, especially the machining of plane/end face/inclined plane/T slot/ combined guide-way of large/medium/small machine parts.
Heavy Type Gantry Milling Machine Plano Miller

Specifications X20 series Gantry Milling Machines
X2014-20 X2014-30 X2014-40 X2014-60 X2016-30 X2016-40 X2016-60 X2020-40 X2020-60 X2025-40 X2025-60
Table  Size(WxL) mm 1000 x 2000 1000 x 3000 1000 x 4000 1000 x 6000 1200 x 3000 1200 x 4000 1200 x 6000 1600 x 4000 1600 x 6000 2000 x 4000 2000 x 6000
Feeding speed mm/min 0-260 0-390
Fast feeding speed mm/min 2500
Motor power mm 4 5.5 7.5 5.5 7.5
Max. load kg 4000 5000 6000 7000 7000 8000 10000 8000 12000 10000 14000
Max. workpiece dimensions  Length mm 2000 3000 4000 6000 3000 4000 6000 4000 6000 4000 6000
Width mm 1400 1600 2000 2500
Height mm 800 1200 1500
Distance between columns mm 1450 1620 2020 2520
Milling head  Motor power kw 7.5 11
Spindle taper ISO50
Spindle speed r/min 100-685(6 steps) 66-660(8 steps)
Swivel angle ± 30°
Power of motor for spindle box feed kw / 1.5
Distance from spindle nose to table surface  Vertical mm 0-800 0-1200 0-1500
Horizontal mm 100
Recommendatory milling disc diameter mm Φ160 Φ200
External dimensions Length mm 6080 8080 10080 14080 8080 10080 14080 10080 14080 10080 14080
Width mm 2630 2630 2630 2630 3230 3230 3230 3630 3630 4300 4300
Height mm 2800 2800 2800 2800 3000 3000 3000 3500 3500 3500 3500
