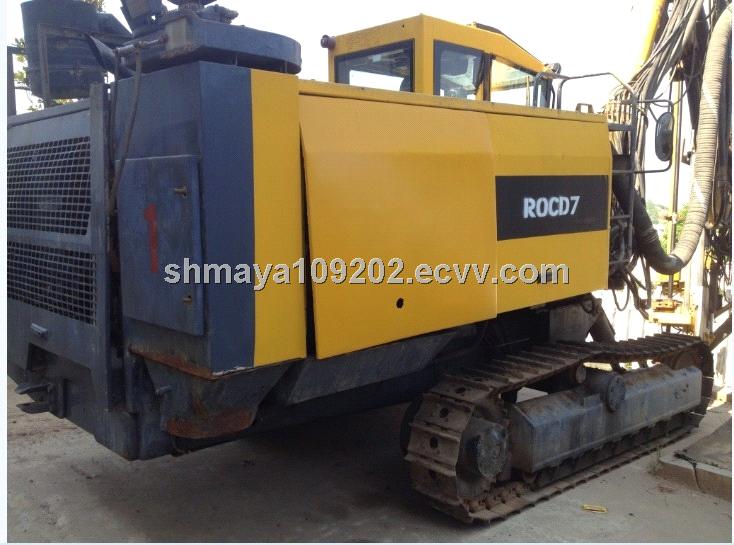

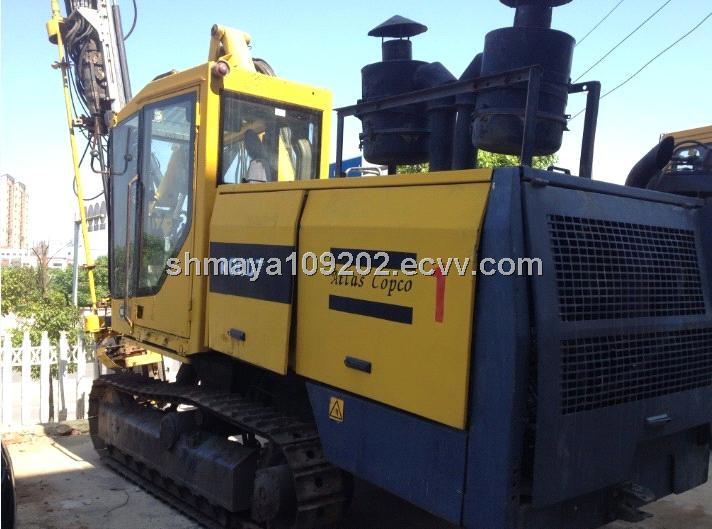

Used Surface Drill Rigs Atlas Copco ROCD7
| Supply Ability: | 15 Set/Sets per Month |
|---|---|
| Shipping: | as required |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Condition: Used
- Year: 2007
- CNC or Not: CNC
- Brand Name: Atlas Copco
- Model Number: ROCD7
- Voltage: 24V
- Power(W): 380KW
Specifications
AtlasCopco drilling rig ROC D7 Hole Diameter:64-115mm
AtlasCopco drilling rig Hydraulic blast hole,
AtlasCopco drilling rig hole diameter64-115mm

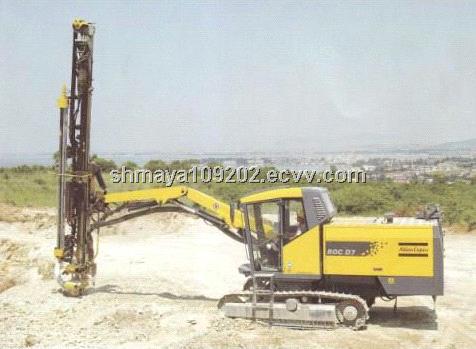

Hydraulic Surface Drill Rigs
ROC D7 Hole Diameter:64-115mm(21/2″-41/2″)
Technical specification
Main benefits
· Unique, durable cylinder-operated feed system makes the best use of the rock drill
· Long reach makes it ideal for use in slope stabilization
· Supreme productivity thanks to the use of the proven COP-series of rock drills
Technical specification
|
Recommended hole range
|
|||
|
T38, T45, T51
|
64-115 mm
|
2 1/2''- 4 1/2''
|
|
|
Hole depth
|
28 m
|
approx. 92'
|
|
|
Hydraulic rock drill
|
|||
|
COP 1840, COP 1840EX
|
|||
|
Impact power, max.
|
18 kW
|
24.5 hp
|
|
|
Atlas Copco OIS K-27-C106 GD, screw compressor
|
|||
|
Working pressure, max.
|
10.5 bar
|
152 psi
|
|
|
FAD
|
105/127 l/s
|
223/270 cfm
|
|
|

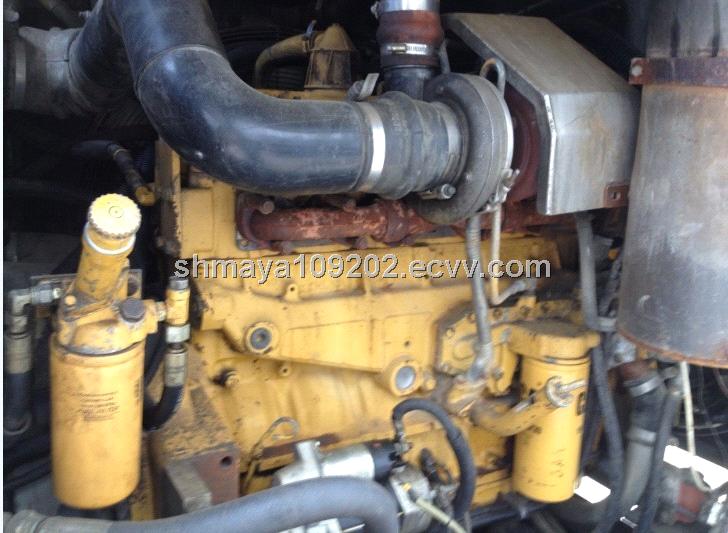

Engine
|
|||
|
Caterpillar turbo charged, diesel engine, CAT C7, Tier III/stage 3
|
|||
|
Rating at 2200 rpm
|
168 kW
|
225 hp
|
|
|
Boom variants
|
|||
|
Folding boom system
|
|||
|
Fuel tank
|
|||
|
Capacity
|
370 l
|
98 US gal
|
|
|

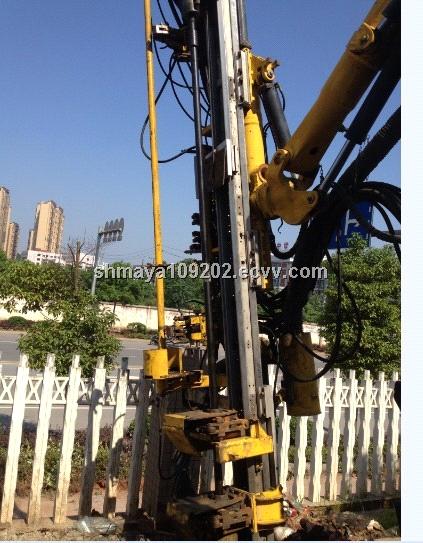

Feed
|
|||
|
Feed length, total
|
7,140 mm
|
23'5''
|
|
|
Travel length
|
4,240 mm
|
14'
|
|
|
Feed extention
|
1,400 mm
|
4'3''
|
|
|
Feed force, max.
|
20 kN
|
4,400 lbf
|
|
|

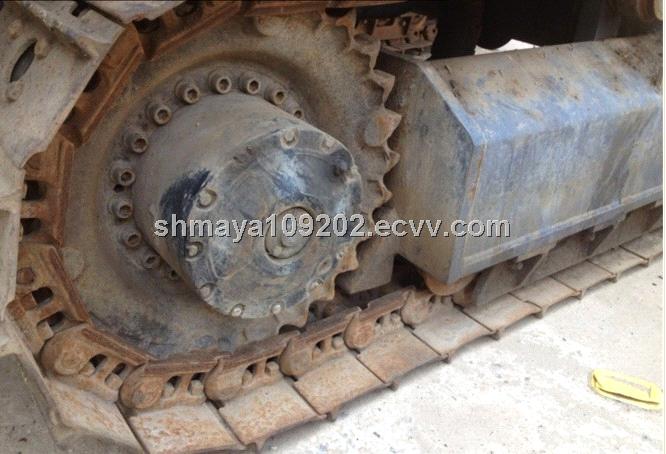

Tramming
|
|||
|
Traction force, max.
|
142 kN
|
31,920 lbf
|
|
|
Track oscillation
|
±12º
|
||
|
Ground clearance
|
455 mm
|
17 1/2''
|
|
|
Transport dimensions
|
|||
|
Total weight, approx.
|
14,500 kg
|
32,000 lb
|
|
|
Width
|
2,490 mm
|
8'2''
|
|
|
Length feed dumped
(back/forward) |
11,000 mm/10,900 mm
|
36'/35'9''
|
|
|
Height feed dumped
(back/forward) |
3,200 mm/3,500 mm
|
10'2''/11'6''
|
|
