Hangzhou Camvision Digital Technology Co., Ltd.
China Manufacturer with main products: Dome Camera, Portable Dome, High Speed Dome, Auto Tracking Dome, Night Vision-Style Mobile Dome, Camvision, 3G Network Dome, Wireless Dome |

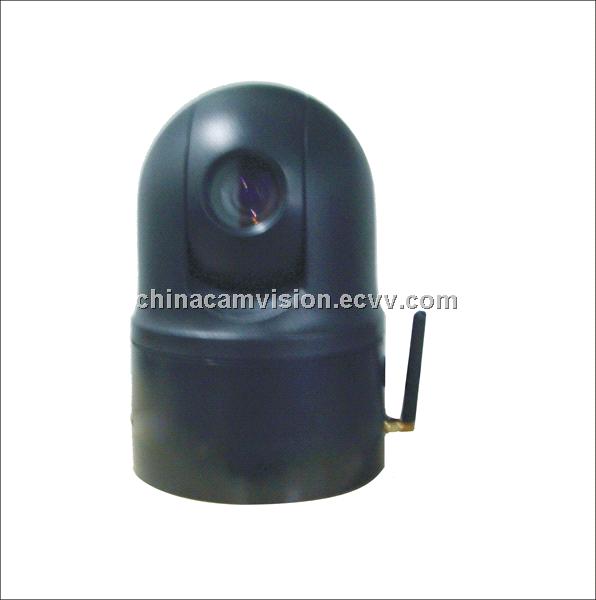

3G Network Integrated Intelligent Mobile Dome (CVVW series)
| Supply Ability: | 1,000 Piece/Pieces per Month |
|---|---|
| Shipping: | Shanghai port by sea, Hangzhou port by air |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | CARTONS |
Quick Details
- Brand Name: CAMVISION
- Model Number: CVVW18SP/CVVW18SN CVVW18LP/CVVW18LN CVVW18NP/CVVW18NN CVVW26NP/CVVW26NN
- Type: Digital Camera
- Sensor: CCD
- Technology: NetWork
- Special Features: Waterproof / Weatherproof
- Control model: Embedded 3G wireless network module, remote wireless transmission of video signal
- Network support : ADSL PPPOE, wireless WIFI, wireless, EVDO/WCDMA, DNS, DDNS, support for streaming media.
Specifications
3G Network Integrated Intelligent Mobile Dome
- Embedded 3G wireless network module, remote wireless transmission of video signal;
- Special for mobile. Safe and shockproof;
- Up to 64 high precision presets programmable;
- RS485 bus control;
- High-precision step motor with sensitive response and reliable movement;
- 360°endless pan rotation with no blind spot;
- -15°～90°tilt range with auto flip 180°to monitor continuously;
- Rotation speed adjusted automatically according to lens multiple;
- Auto focus, auto white balance;
- Backlight compensation;
- Display lens angle on screen;
- Multi-protocols supported with adjustable baud rate;
- Light weight, waterproof, with explosion, dust and static electricity protector;
- Applying optimized ultra-low code rate compression algorithm of H.264, special reliable wireless transmission technology and self-adaption channel binding technology, image clearly coherent, with the 3g network, it can get 25 frames/sec of CIF, 12 frames/sec of D1, average latency less than 3 sec.
- Network support ADSL PPPOE, wireless WIFI, wireless, EVDO/WCDMA, DNS, DDNS, support for streaming media.
|
Technical Specifications |
|||||
|
Model
|
CVVW18SP/CVVW18SN
|
CVVW18LP/CVVW18LN
|
CVVW18NP/CVVW18NN
|
CVVW26NP/CVVW26NN
|
|
|
Dimension(mm)
(H*W*D)
|
163X130X116
|
||||
|
Signal Format
|
PAL/NTSC
|
||||
|
Image Sensor
|
1/4'' color CCD
|
||||
|
Horizontal Resolution
|
480TVL
|
||||
|
Video Output
|
1.0±0.2VP-P
|
||||
|
Pan/Tilt Speed
|
Pan 0.05°～300°/sec;Tilt:0.05°～60°/sec
|
||||
|
Signal Noise Ratio
|
≥50dB
|
||||
|
Min. Illumination
|
1Lux
|
0.1Lux
|
0.01Lux
|
||
|
Image Flap
|
No
|
Yes
|
|||
|
Switching Mode
|
Day/night
|
Day/night
|
|||
|
AGC
|
Auto/manual
|
||||
|
Backlight Compensation
|
Auto/manual
|
||||
|
Optical Zoom
|
18×
|
26×
|
|||
|
Digital Zoom
|
12×
|
||||
|
Location Precision
|
0.05°
|
||||
|
Pan/tilt Range
|
Pan: 0°～ 360°continuous; tilt-15°～90°,auto flip
|
||||
|
Power
|
DC12V±0.5V/15W
|
||||
|
Control Model
|
RS485 bus control
|
||||
|
Baud Rate
|
1200bps , 2400bps, 4800bps, 9600bps, 19200bps
|
||||
|
Spectra Address
|
0～255
|
||||
|
Number of Preset
|
64(0～63)
|
||||
|
Auto Cruise
|
Auto switch from 0 to 54 preset position sequentially
|
||||
|
Zone Scanning
|
55~63 presets or 90°/180°/360°scanning to and fro
|
||||
|
Net Weight
|
1kg
|
||||
|
Dustproof and Waterproof Level
|
IP66
|
||||
|
Working Temperature
|
-25℃～70℃
|
||||
|
