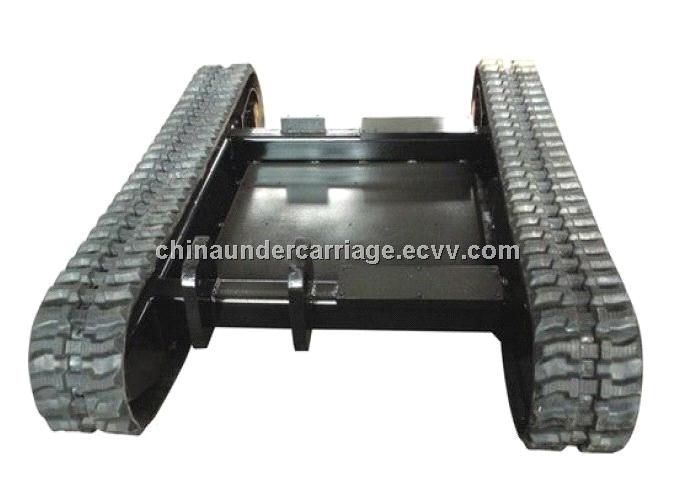

rubber track undercarriage (rubber track chassis)

Supply Ability:	1,500 Set/Sets per Month
Shipping:	5-20 days
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	pallet

Quick Details

Load capacity: 1-30 ton
Travelling speed: 0-10km/hr
Dimension: custom built
Delivery Time: 5-15 days
contact: Cathy Hsu
skype: cathy-bonny
email: kemercn at hotmail dot com

Specifications

We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive and travel 0-7km/h at grades up to 60%.

Application

Special design catered to customer specifications. With years of experience we can offer the track design flexibility, rapid response and solutions that are always highly effective.

For application on drilling rigs, excavators, crushers, cranes, aerial platform, etc. with high efficiency and adaption of vile working condition.

Customize Solution

We have many professional engineers devoting to design the track undercarriages to meet different customers requirements. With our years of experience, we can take your concept from prototype to production. We are committed to our goal of exceeding your expectations and requirements for quality, reliability, and on-time delivery.

Competitive Price

We can provide our track undercarriage with most competitive price,great quality and best service.

If you have any question or need any help, please feel free to contact with us. Our service team is ready to provide best service for you.

Features:
1. Adopt high strength engineering rubber track.
2. The track motor can be fixed displacement or variable displacement concealed planetary gearbox and hydraulic motor, such as Nabtesco (Japen), Brevini (Italia). If you need, we can also provide track motor made by our own factory.
3. The beam is made of Q345B with high loading capacity.
4. It can also be designed and manufactured on customers' request.
5. It is widely applied in all kinds of mini- drilling rig, mini-excavator, lawn mower, Aerial Working Platform and construction engineering machines.

For the following dimension and specification, it is just for your reference, we can also design and manufacture the undercarriage with load capactiy from 500-50,000kgs for widely application based on your requirements.

MODEL	Dinamic capacity	Static capacity	Weight kg.	Press.Bar	oil flow L/min	Torque Nm to engine	Grad.	Speed km/h
RT-1500	1200	1500	330	270	17	2000	65%	1.7
RT-2500	2500	3000	380	220	35	4723	65%	2/3.2
RT-3500	3500	4000	650	220	35	4723	65%	2/3.5
RT-5000	5000	6000	900	220	55	8330	65%	2/3.7
RT-6000	6000	7000	1280	220	55	8330	65%	2/3.7
RT-8000	8000	9500	1550	300	82	11700	65%	2.8/4.7

MODEL	A Length	B Center Distance	C Height	D Total Width	E Width of track shoe	F Height of Cross beam	No. of roller
RT-1500	1420	1066	350	980	230	165	3+3
RT-2500	1850	1370	480	1220	250	245	4+4
RT-3500	1980	1511	500	1520	300	250	5+5
RT-5000	2500	1950	550	1800	350	265	6+6
RT-6000	2905	2355	550	1800	400	265	7+7
RT-8000	2950	2450	600	1800	400	310	7+7
