800Lbs Single Door Magnetic Lock with Feedback/320kg electromagnetic lock/mag lock SafeBuy Supplier Member

Supply Ability: 12,000 Piece/Pieces per Month
Shipping: 3-7 days
Payment Terms: T/T, Paypal, Western Union
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: BROWN BOX

Quick Details

  • Brand Name: M-LOCK
  • Model Number: ML800GF

Specifications

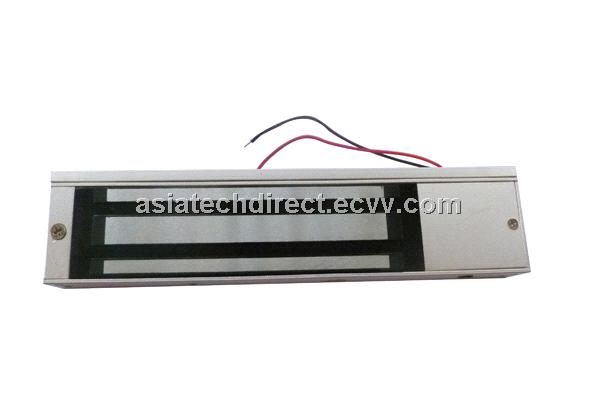

ML800GF Maglock, 800Lbs Holding Force Single Door Magnetic Lock with Feedback


Application

ML800GF single door magnetic lock, compatible with access control, door phone, and remote control system. Door and lock status outputs included for remote monitoring and system application needs. For standard size metal doors, wooden doors, fireproof doors and glass door. Hanging installation/surface mounted.

Standard Features

·  Door status, lock status monitoring output (NO,NC,COM)

·  Green/Red Led indication for lock status

·  Low current consumption

·  Reliable holding force

·  High strength material, anodized aluminum housing

·  Anti-residual magnetism designed

·  Silent Operation

·  Long Lasting Performance

·  Warranty:  2 years
Technical Specifications

·  Magnet Size: (L)240x(W)56.5x(H)29mm

·  Armature Size: (L)158x(W)43x(H)11mm

·  Holding Force: 800Lbs /320KG
·  Voltage: DC12V

·  Current Draw: DC12V/350mA

Finishes

·  Aluminum Alloy

Recommended Brackets

·  U bracket: ML600/800-U

·  L bracket: ML800-L

·  Z bracket: ML600/800-Z
