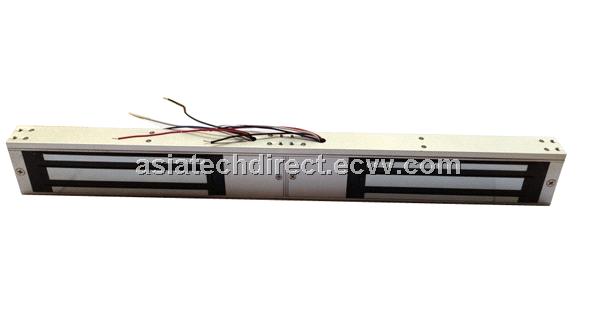

800Lbs x 2 Holding Force Double Door Magnetic Lock with Feedback
| Supply Ability: | 12,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 3-7 days |
| Payment Terms: | T/T, Paypal, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | BROWN BOX |
Quick Details
- Brand Name: M-LOCK
- Model Number: ML800GSF
Specifications
ML800GSF Maglock, 800Lbs x 2 Holding Force Double Door Magnetic Lock with Feedback
Application
ML800GSF double door magnetic lock, compatible with access control, door phone, and remote control system. Door and lock status outputs included for remote monitoring and system application needs. For standard size metal doors, wooden doors, fireproof doors and glass door. Hanging installation/surface mounted.
Standard Features
· Door status, lock status monitoring output (NO,NC,COM)
· Green/Red Led indication for lock status
· Low current consumption
· Reliable holding force
· High strength material, anodized aluminum housing
· Anti-residual magnetism designed
· Silent Operation
· Long Lasting Performance
· Warranty: 2 years
Technical Specifications
· Magnet Size: (L)480x(W)56.5x(H)29mm x 2
· Armature Size: (L)158x(W)43x(H)11mm
· Holding Force: 800Lbs /320KG x 2
· Voltage: DC12V
· Current Draw: DC12V/350mA x 2
Finishes
· Aluminum Alloy
Recommended Brackets
· U bracket: ML600/800-U x 2
· L bracket: ML800-L x 2
· Z bracket: ML600/800-Z x 2
