Specifications

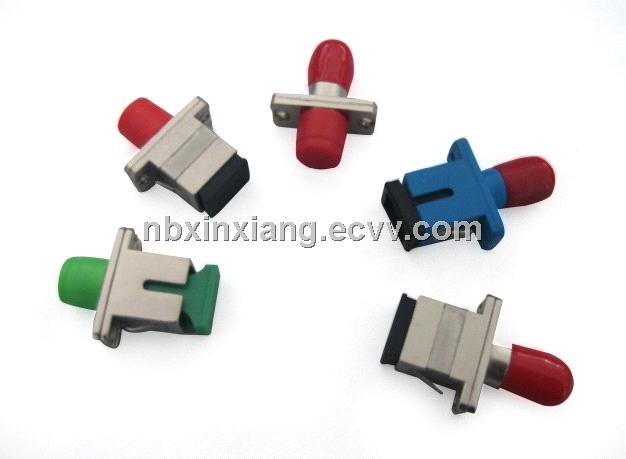

The optic fiber adapter is the connection part. Refly supply full rang of adapters, including

FC,SC,ST,LC and hybrid adapters, which are widely used in ODF ,optic fiber communications system, fiber optic test equipments. Standard adapter is to connect two end of optic fiber with same connectors, such as FC/APC-FC/APC, SC/PC-SC/PC, E2000/PC-E2000/PC.And hybrid

adapter is used to connect two end of optic fiber with different connectors, for instance, FC-ST, SC-LC, FC-SC, SC-ST

Features

Accurate dimension

Good exchangeability

Good repeatability

Good wear resistance

Specifications

Item	Parameters
	FC/PC,FC/APC,SC/PC,SC/APC,ST/PC,ST/APC,LC/PC,LC/APC
	FC to SC	FC to ST	SC to LC	SC to ST
Insertion loss	≤0.20 dB
Repeatability	≤0.10 dB
Changeability	≤0.20 dB
Sleeve material	Bronze, zinc alloy, plastic
Ferrule material	Ceramic		metal
Operation temperature	-25 ~ +70℃	-40 ~ +80℃	-25 ~ +70℃
Storage temperature	-40 ~ +85℃
Industry standard	Bellcore TA-NWT-001209

Applications

FTTH, LAN, PON & Optical CATV

Local ring net

Optical fiber communication system

Optical fiber test equipment

Optical fiber network
