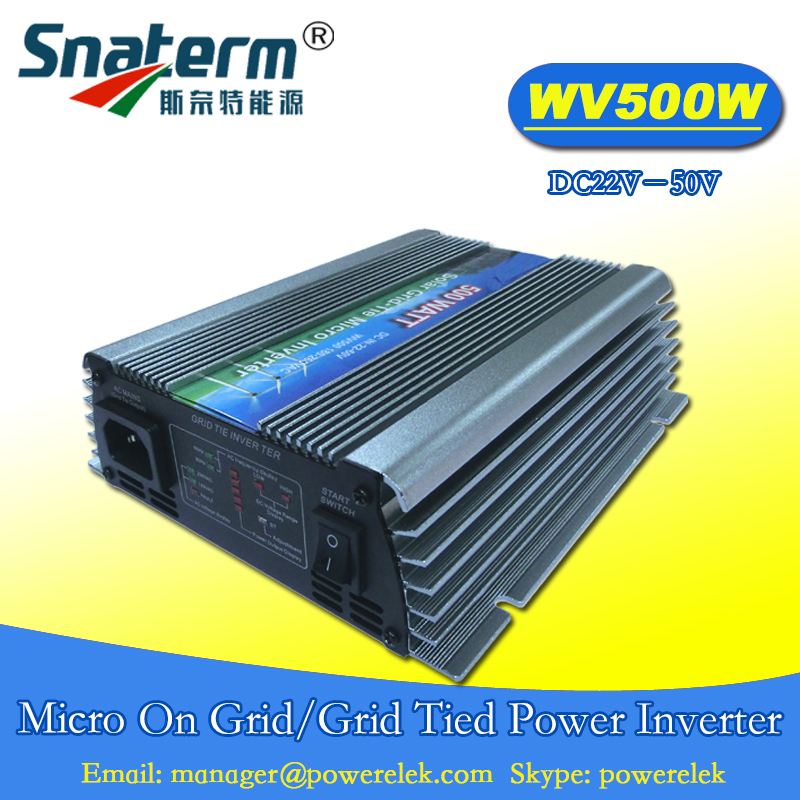

WV 500W Grid Tied Inverter DC22V-60V AC220V/AC110V Micro Solar Grid Tie Inverter

FOB Price: 65.00 - 78.00 USD/Set
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • Model Number: WV 500W
  • Brand Name: SNAT

Specifications



Multiple small power inverters in parallel can achieve large output power,
Such as: 4 grid inverter 500W stacking can achieve 2000W,and the number of the stacking is unlimited.

System Function:
◆Display functionWV 500W Grid tied inverter DC22V60V AC220VAC110V micro solar grid tie inverter
---AC voltage display
---Outage display
--- Power shows
---AC frequency display
---DC over-voltage display
---DC under- voltage display
---Power adjust display

◆6-grade power search
---the program can automatically open power adjustment for 6 times.
---the current direction can adjust from the maximum to the minimum.
---in automatic adjustment process, we will see the LOW light flashing. and the power will keep as a starting point, from 0 to the maximum output power, and it will restart at most for 6 times, then locked in the maximum power, the ST lamp long bright.
---It need 10 minutes for 6-grade power search.

◆Voltage input(22V-60V)
---DC voltage input: 22-60VDC
---Second level power variable voltage conversion

◆High-frequency two-way and one-way grid function
---High frequency direct modulation, AC half wave synthesis
---Two-way grid means: Load consume directly. and can reverse AC current transmission.
---One-way grid means: Load consume directly. and banned reverse AC current transmission.

◆Kinds of frequency output function.

◆Directly connected to the solar panels (do not need to connect the battery)
---Differential pressure type MPPT: 0.1 V accuracy
---Power lock: 10W (AC output)

◆AC 0 angle with high precision auto-detection
---Synchronous High-frequency Modulation
---Pure Sine Wave Output

◆Automatic Sensing Function Solar Luminosity
---Power Automatically Locked (APL)
---Automatically Adapt To Different Load Power Factor

◆Constant Current,Constant Power

◆Automatically Shut Down When the Power Output of a Fault
---Current Limit Protection

◆Stack Multiple Machines

◆High-Frequency High Conversion Rate
---Maximum Power Point Tracking (MPPT)

WV  Grid-series models
500Watt
Recommend use solar panels
600Wp
DC MAX input current
40A
AC MAX output power
500Watt
DC MAX Open-circuit input-voltage
100VDC
DC input voltage range
22~60VDC
MAX output power factor
0.99
DC input Reverse voltage protection
FUSE
AC output voltage range
(120V versions: 90~140VAC)(230V versions: 180~260VAC)
AC frequency range
45-53Hz/55-63Hz
Output current total
Harmonic distortion
THDIAC <5%
AC Phase
<0.5%
Islanding protection
VAC; f AC
Output short circuit protection
Current-limiting
Show
LED mode: power instruction; voltage instruction; AC frequency instruction; over-voltage instruction
Installation
Wall hanging
Cooling
Fan
Communication way
L          60KHz modulation, power line carrier-current communication
Standby Power
<1W
Night Power
<1W
Ambient temperature range
-25 ℃~60℃
Humidity
0~99%(Indoor Type Design)
Waterproof
Indoor Type Design
Electromagnetic Compatibility
EN50081.Part1   EN50082.Part1
Power System Disturbance
EN61000-3-2  EN60950-1
Network test
DIN VDE 1026


N.W(Each inverter)
1.3KG(300W/500W)
G.W(Each inverter)
1.8KG(300W/500W)
Each inverter size (L x W x H)
21 x 16.5 x5.3CM
Inner carton size(L x W x H)
30x20.3x11.3CM
Master carton size(L x W x H)
42x31.5x36.5CM(6 pieces/carton)
N.W(Outer packing)
10.8KG(300W/500W )
G.W(Outer packing)
11.5KG(300W/500W )
AC power cord length
1.8M









Input and output
1)DC input limit
2        Input voltage range: 22V to 60V
Solar Panel: Recommend using the power more than 30W.

1)  Reference voltage is 18V's solar panel. Suggest using two pieces of solar panel in series.
2)  Reference voltage is 36V's solar panel.
3)  Reference voltage is 48V's solar panel.
Recommend using multiple solar panels. Solar panel in series will result in high-input voltage which will exceed the working voltage range of the inverter.
Wind turbine system: Rated voltage 24VDC, maximum voltage 48VDC.
2)AC output:
2        Voltage range of the inverter whose output is 220V AC.: 180V - 260V, 50HZ
2        Voltage range of the inverter whose output is 110V AC.: 90V - 140V, 60HZ

Notes:
---Non-professionals do not disassemble. Only qualified personnel may repair this product.
---Please install inverter in the low humidity and well-ventilated place to avoid the inverter over-heating, and clear around the inflammable and explosive materials.
---When using this product, avoid children touching, playing, to avoid electric shock.
---Recommended Maximum DC input 4AWG cable capable of handling more than 50A of the cable size.
---Optimal length of the DC input line 8M or less, long cable will allow solar panels to the inverter
DC voltage drop caused by wear and tear.
---Connected to a power outlet to provide AC.
---Connected solar panels, battery DC input DC power supply.

Accessories for product
One standard AC wire
One user manual
