Jinan Suke Science & Technology Co., Ltd.
China Manufacturer with main products: Laser Engraving Cutting Machine, Low Cost Laser Engraving Cutting Machine, Low Price Laser Engraving Cutting Machine, Acrylic Wood Laser... |

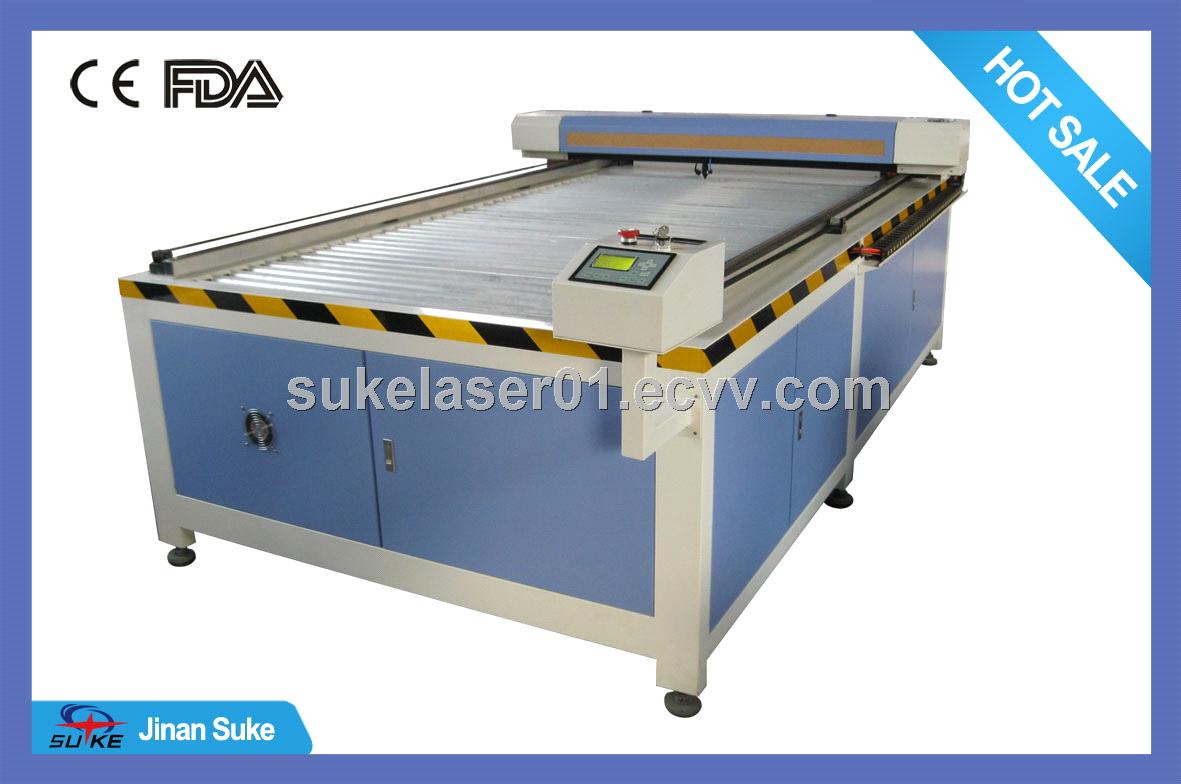

Large Format Cloth Laser Engraving Cutting Machine
| FOB Price: | 5,350.00 - 6,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 7~10 days after receiving your payment |
| Payment Terms: | L/C, T/T, Paypal, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wooden case |
Quick Details
- Condition: New
- Laser Type: CO2
- Applicable Material: Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Wood
- Cutting Thickness: different thickness for differernt material
- Cutting Area: 1300*2500mm
- Cutting Speed: 0~30000mm/min
- CNC or Not: No
- Cooling Mode: Water Cooling
- Control Software: dsp
- Graphic Format Supported: AI,PLT,DXF,BMP,DST
- Brand Name: SUKE
- Model Number: SK1325
- Certification: CE,FDA
- After-sales Service Provided: Engineers available to service machinery overseas
- color: organge, blue, grey (optional)
- working mode: stepper
- Control system: DSP control system
- software supported: CorelDraw.AutoCAD,Photoshops
- cooling type: water-cooling
- laser tube: 60,80w,100w,130w,150w (optional)
- certification: CE, FDA
Specifications
Large Format Cloth Laser Engraving Cutting Machine
Applicable materials:
wood, bamboo,marbel, acrylic, plastic, cloth, rubber, glass, paper,leather,ceramics and other non-metal materials.
Features:
1. Front and rear hole to pass long materials
2. Modern design and beautiful appearance
3. Use imported Taiwan Hiwin linear guide, more durable and high precision
4. Water protection switch ,safety switch and limit switch
5. Adopt DSP control system, and USB offline operation, LCD screen
Parameters:
|
Model
|
SK1325
|
|
Working Area
|
1300*2500mm
|
|
Laser tube power
|
40w/60w/80w/100w/130w/150w (can be optional)
|
|
Laser tube type
|
Sealed CO2 laser tube, water-cooling, 10.6um
|
|
Lift of laser tube
|
1500 hours or 10000 hours optional
|
|
Max. engraving speed
|
0-60000mm/min
|
|
Cutting speed
|
0-30000mm/min
|
|
Cutting thickness
|
1-20mm acrylic (determined by the material)
|
|
Resolution ration
|
<0.01mm
|
|
Location precision
|
<0.01mm
|
|
Min. shaping character
|
Chinese 2*2mm, English 1*1mm
|
|
Support graphic format
|
DST, PLT, BMP, HPGL, DXP, and AI
|
|
Software supported
|
CorelDraw, Auto CAD, Photoshop
|
|
Power supply
|
AC110-220v, 50-60HZ
|
|
Operating temperature
|
0-40 centigrade degrees
|
|
Operating Humidity
|
5%-95% free of condensed water
|
|
Interface
|
USB
|
|
Assistant Equipment
|
Exhaust fans, water pump, air pump
|
|
Driving system
|
stepper
|
|
Control system
|
DSP
|
|
Consuming power
|
<1000w
|
